Tractor · 1933Unverified

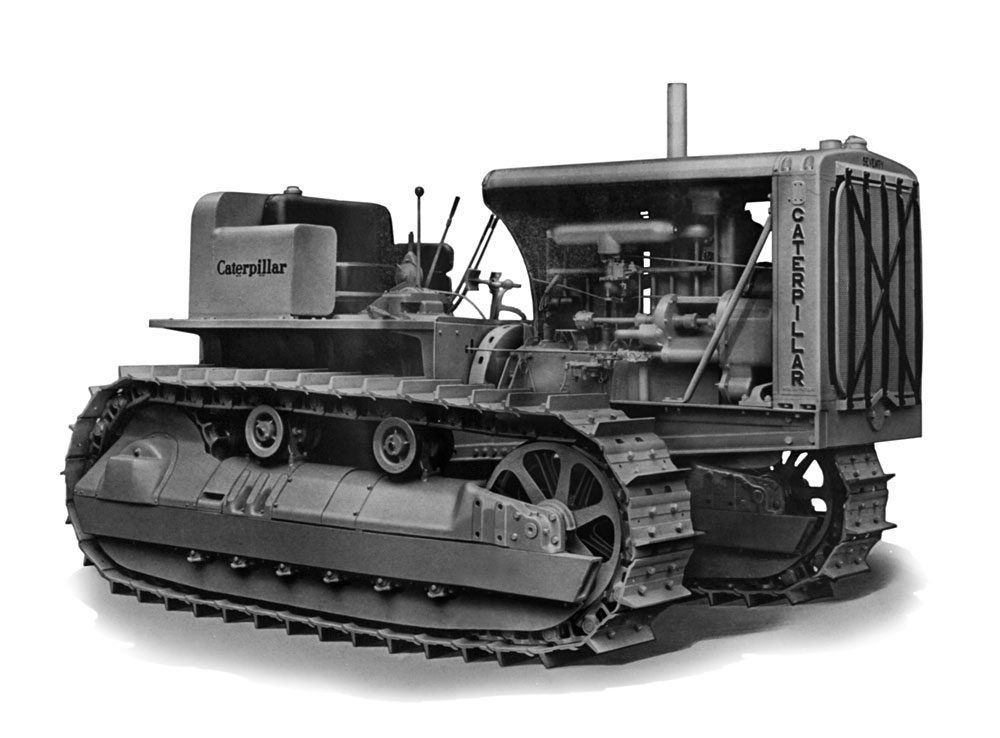

Caterpillar Diesel Seventy-Five
Caterpillar Diesel Seventy-Five · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Max power
59.7 kW
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
Built in Peoria, Illinois, USAReference
DrivecrawlerReference
Engine
Caterpillar 17.0L 6-cyl dieselReference
Drawbar (tested)59.7 kWReference
Belt (tested)69.4 kWReference
CaterpillarReference
dieselReference
6-cylinderReference
Displacement17.0 LReference
Bore/Stroke133 x 203 mmReference
Rated RPM700Reference
Belt power (max)69.4 kWReference
Max power59.7 kWReference
Dimensions
TracksReference
Gauge198 cmReference
Test results
1933Reference
Drawbar performanceReference
Max pull8480 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
