Tractor · Unverified

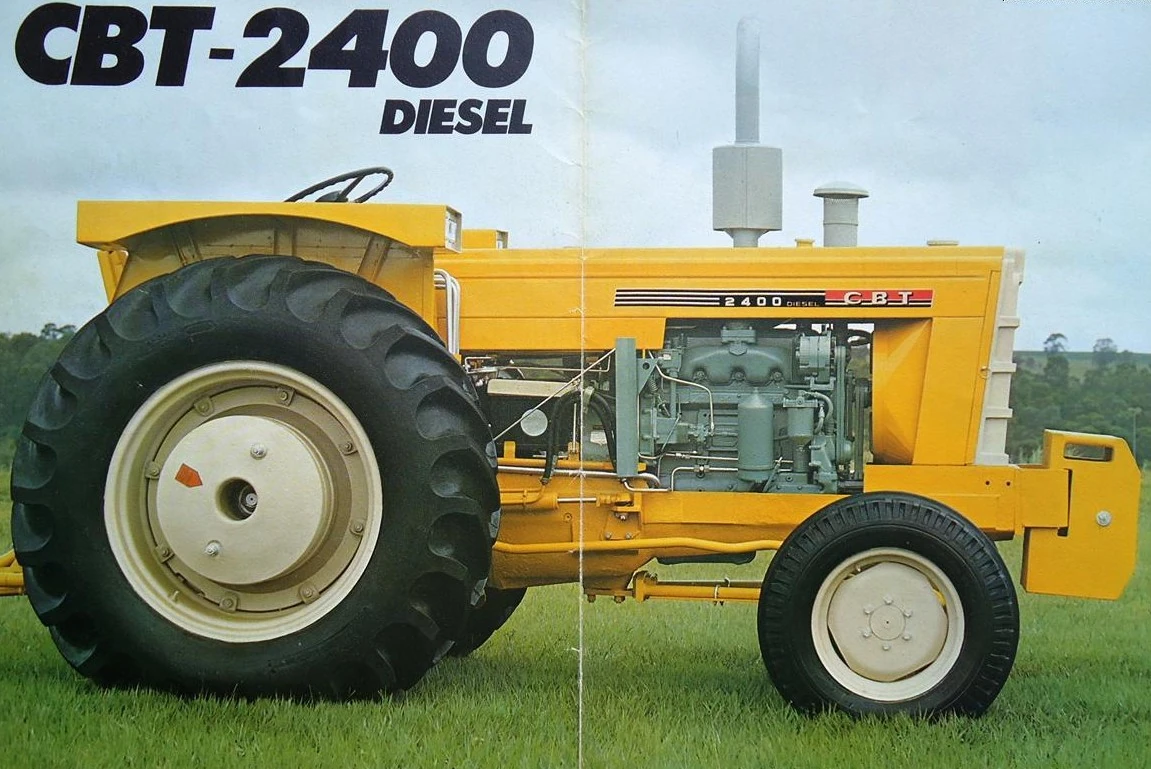

CBT 2400
CBT 2400. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
4907 kg
Hover a source tag to verify
Overview
ManufacturerCBTReference
Built in BrazilReference
Two-wheel driveReference
Steeringpower optionalReference
Disc brakesReference
Open operator station. Cab optional.Reference
Engine
Detroit Diesel 3.5L 4-cyl dieselReference
Detroit Diesel 5043-5050Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.5 LReference
Bore/Stroke98 x 114 mmReference
Air cleanerdryReference
Rated RPM2200Reference
Torque366.0 NmReference
Torque RPM1800Reference
Oil capacity14.0 LReference
Coolant capacity24.0 LReference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
Oil capacity30.3 LReference
Capacities
Fuel157.5 LReference
PTO & Hydraulics
Hydraulic system20.1 LReference
Capacity20.1 LReference
Rear TypeoptionalReference
Rear PTO Type543 (1-3/8)Reference
Dimensions
Wheelbase215 cmReference
Weight4907 kgReference
Front tire7.50x18Reference
Rear tire15x34Reference
Ag front7.50x18Reference
Ag rear15x34Reference
Length400 cmReference
Width217 cmReference
Height (steering wheel)192 cmReference
Operating weight4907 kgReference
Ballasted weight6354 kgReference
Clearance (front axle)27 cmReference
Clearance (front axle)40 cmReference
Clearance (rear axle)72 cmReference
Clearance (drawbar)36 cmReference
Front tread164 cmReference
Rear tread168 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
