Tractor · 1957Unverified

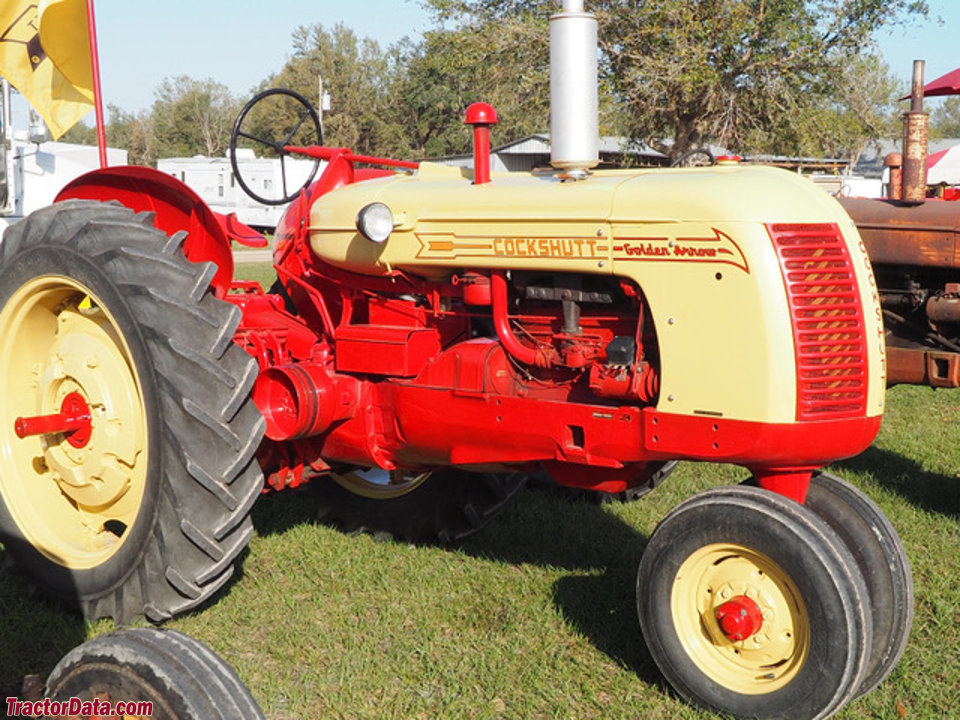

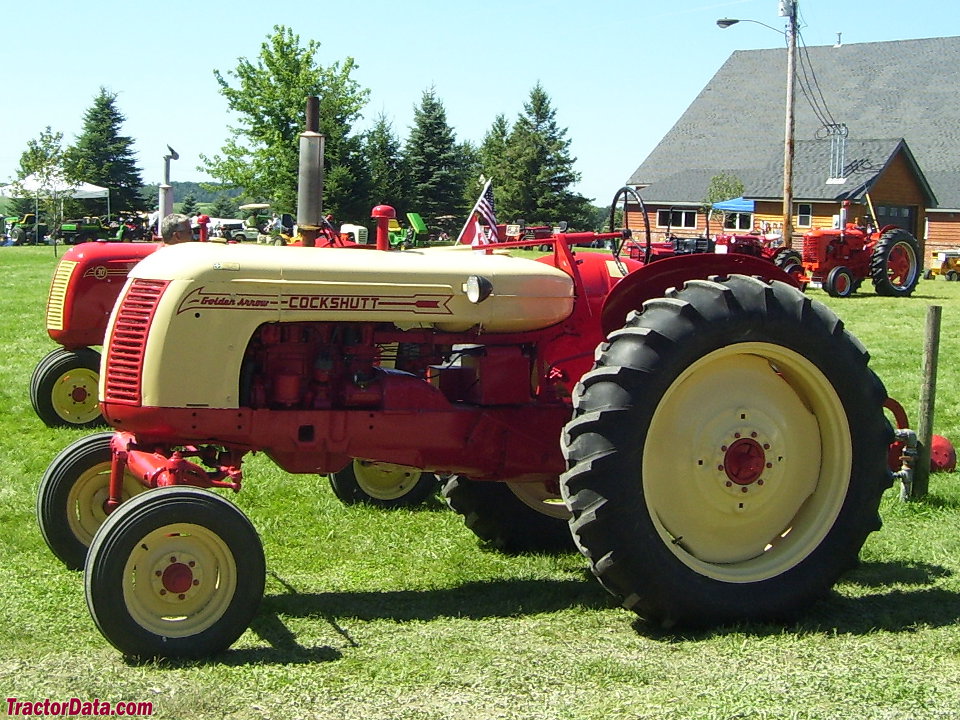

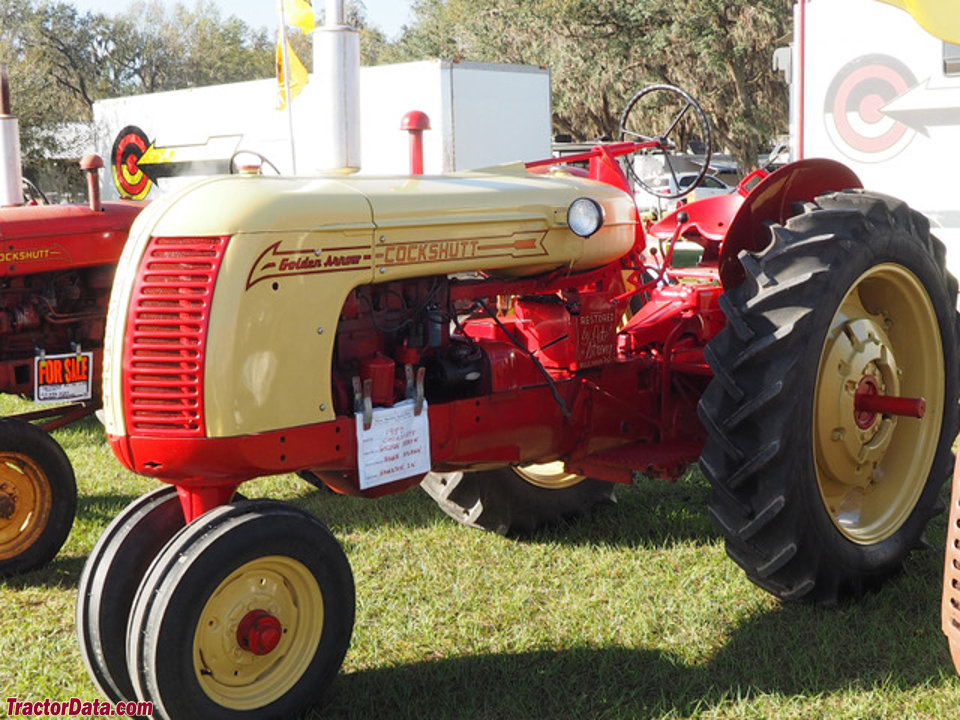

Cockshutt Golden Arrow
Cockshutt Golden Arrow — Experimental tractor. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Hover a source tag to verify
Overview
ManufacturerCockshuttReference
Experimental tractorReference
Built in Brantford, Ontario, CanadaReference
Total built135Reference
The Cockshutt Golden Arrow was a demonstation tractor to show the new draft-sensing three-point hitch. To show off this system Cockshutt put the hitch, rear end, and transmission of the new model 550 onto a model 35. The original intent was to recall all Golden Arrows and re-build them into model 550 tractors, but many of them were never returned to the factory.Reference
Two-wheel driveReference
Open operator stationReference
Engine
Hercules 4-cyl gasolineReference
Hercules GO198Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Golden Arrow Serial Numbers
195735-16001Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
