Tractor · 1956Unverified

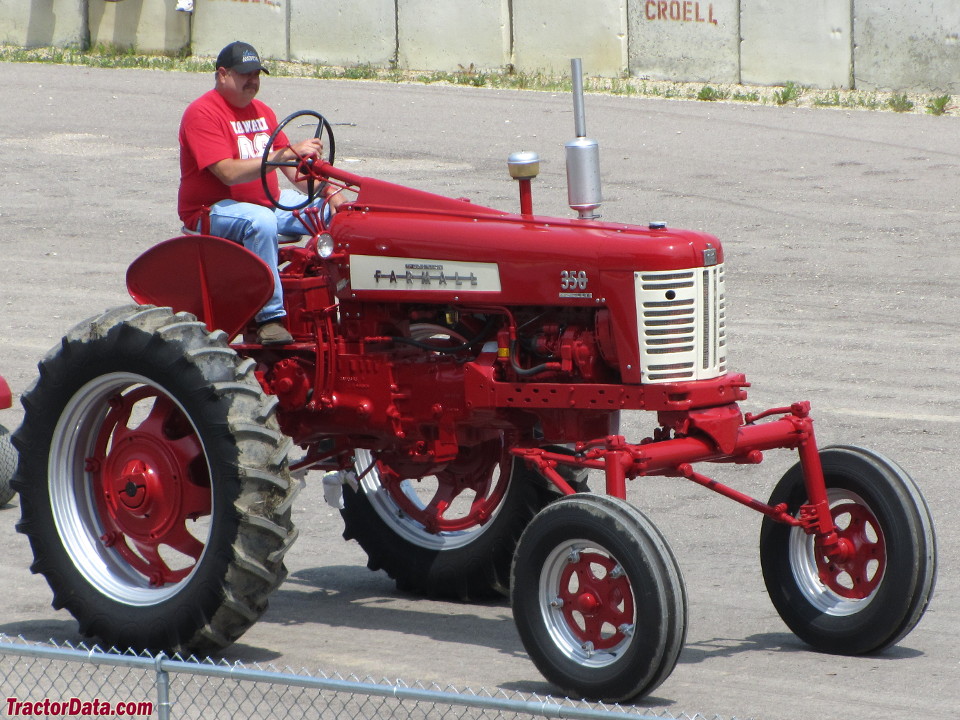

Farmall 350 Hi-Clear
Farmall 350 Hi-Clear — High-Clearance tractor. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
High-Clearance tractorReference
Built in Rock Island, Illinois, USAReference
Total built151Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
IH 350utility tractorReference
Farmall 350row-cropReference
Farmall 350 Hi-Clearhigh-crop tractorReference
Engine
Continental 3.2L 4-cyl dieselReference
International Harvester 2.9L 4-cyl gasolineReference
International Harvester 2.9L 4-cyl LP gasReference
Fuel tank64.3 LReference
Fuel tank68.1 LReference
Fuel tank69.6 LReference
Continental D193Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.2 LReference
Bore/Stroke95 x 111 mmReference
Compression16.87:1Reference
Rated RPM1750Reference
Coolant capacity16.3 LReference
International Harvester C175Reference
gasolineReference
liquid-cooled vertical I-headReference
Displacement2.9 LReference
Bore/Stroke92 x 108 mmReference
Compression7.0:1Reference
Coolant capacity18.0 LReference
LP gasReference
Compression9.0:1Reference
Rated RPM2000Reference
Transmission
5-speed gearReference
10-speed two-speed power shiftReference
TypegearReference
Gears5 forward and 1 reverseReference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears10 forward and 2 reverseReference
The Torque Amplifier (TA) provides a clutchless shift-on-the-move between normal, direct drive (DD) and the TA. By engaging the TA, tractor ground speed is reduced and torque is increased.Reference
PTO & Hydraulics
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase247 cmReference
Front tire5.50-16Reference
Rear tire11.00-38Reference
Ag front5.50-16Reference
Ag rear11.00-38Reference
Ag rear13.6-38Reference
Length387 cmReference
Width218 cmReference
Height225 cmReference
Front tread152 to 228 cmReference
Rear tread157 to 187 cmReference
350 Hi-Clear Serial Numbers
Location:Clutch housing, right sideReference
1956501Reference
19571030Reference
195814674Reference
Final17215Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
