Tractor · 1980Unverified
Iseki T6500

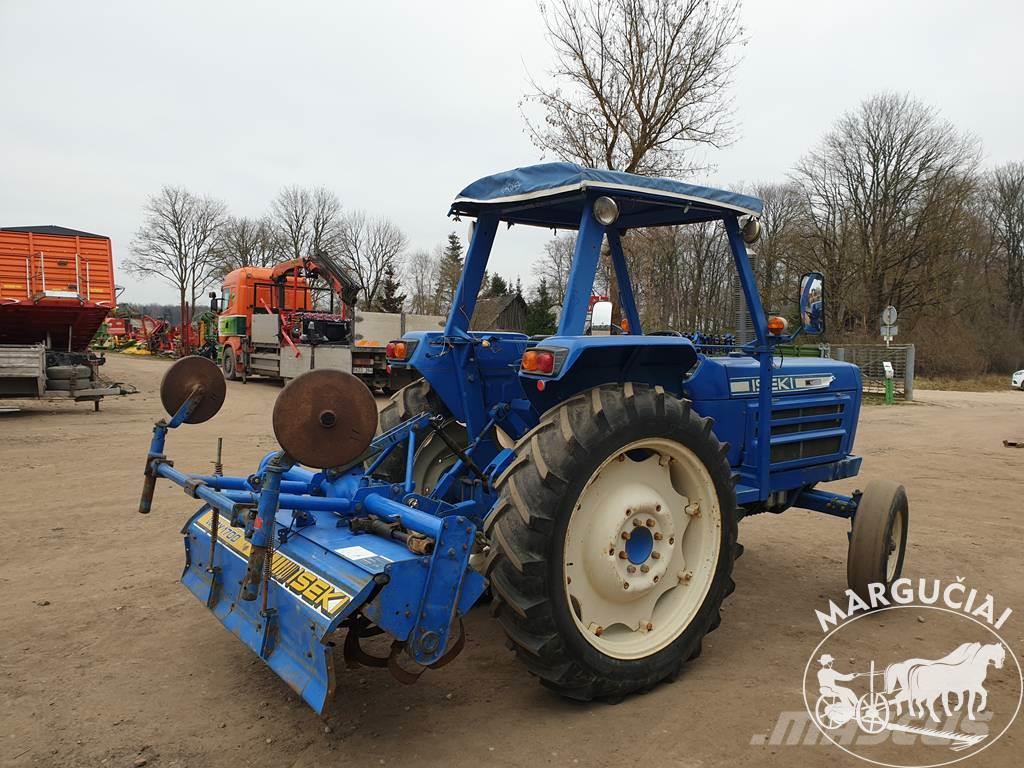

Iseki T6500 — Utility tractor · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Weight
5423 to 5986 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Four-post ROPS. Cab available with heater.Reference
Variants
T6500utilityReference
T6500HChigh-cropReference
2-62similar White modelReference
Engine
Isuzu 3.6L 4-cyl dieselReference
Fuel tank104.1 LReference
Engine47.8 kWReference
Isuzu 4BB1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke102 x 110 mmReference
Power47.8 kWReference
Air cleanerdry with pre-cleanerReference
Compression17.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Coolant capacity4.7 LReference
Transmission
20-speed gearReference
TypegearReference
Gears20 forward and 4 reverseReference
Clutch275mm dry discReference
Five gears (1-5), plus reverse (R), in two ranges with additional creeper range.Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow43.5 lpmReference
Steering flow30.3 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1814Reference
Engine RPM850@2200Reference
Dimensions
Wheelbase215 cmReference
Weight5423 to 5986 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9/14-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9/14-30Reference
4WD Standard tires (ag)Front: 9.5-24. Rear: 16.9/14-30Reference
Length360 cmReference
Width183 cmReference
Height246 cmReference
2WD Weight2459 kgReference
4WD Weight2715 kgReference
2WD Ground clearance39 cmReference
4WD Ground clearance37 cmReference
2WD Front tread132 to 192 cmReference
4WD Front tread150 cmReference
Rear tread140 to 201 cmReference
T6500 Serial Numbers
Location:Serial number behind alternator.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps30Reference
Batteries2Reference
Battery volts12Reference
Battery AH80Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
