Tractor · 1980Unverified

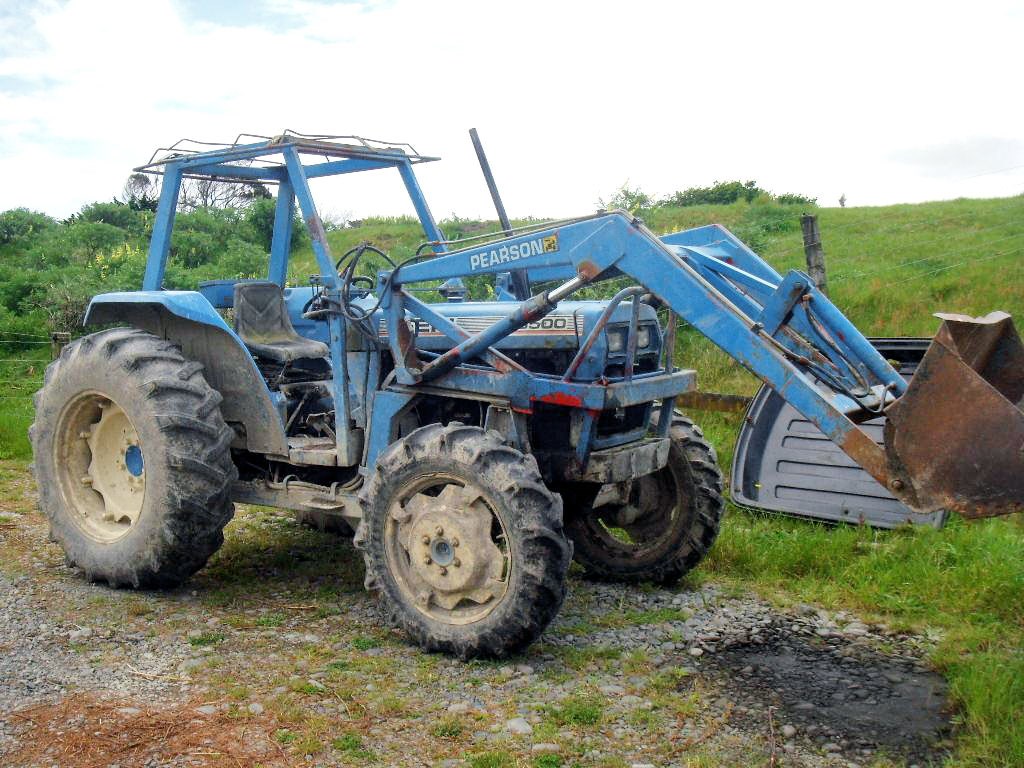

Iseki T6500HC
Iseki T6500HC — High-Clearance tractor · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
3050 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
High-Clearance tractorReference
Built in JapanReference
Original price$17,500 (1981)Reference
Four-wheel driveReference
Steeringhydraulic powerReference
Wet disc brakesReference
Four-post ROPS or cab.Reference
Variants
T6500utilityReference
T6500HChigh-cropReference
Engine
Isuzu 3.6L 4-cyl dieselReference
Fuel tank104.1 LReference
Engine48.5 kWReference
Isuzu 4BB1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke102 x 110 mmReference
Power48.5 kWReference
Air cleanerdry with pre-cleanerReference
Compression17.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Coolant capacity4.7 LReference
Transmission
20-speed gearReference
TypegearReference
Gears20 forward and 4 reverseReference
Clutch275mm dry discReference
Five gears (1-5), plus reverse (R), in two ranges with additional creeper range.Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow43.5 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540Reference
Engine RPM540@1814Reference
Dimensions
Wheelbase214 cmReference
Weight3050 kgReference
Front tire13.6x38Reference
Rear tire13.6x38Reference
Standard tires (ag)Front: 13.6x38. Rear: 13.6x38Reference
Standard tires (ag)Front: 9.5x48. Rear: 9.5x48Reference
Length392 cmReference
Width230 cmReference
Height266 cmReference
Ground clearance69 cmReference
Front tread182 cmReference
Rear tread182 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps30Reference
Batteries2Reference
Battery volts12Reference
Speeds
With 13.6-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
