Tractor · 1980Unverified

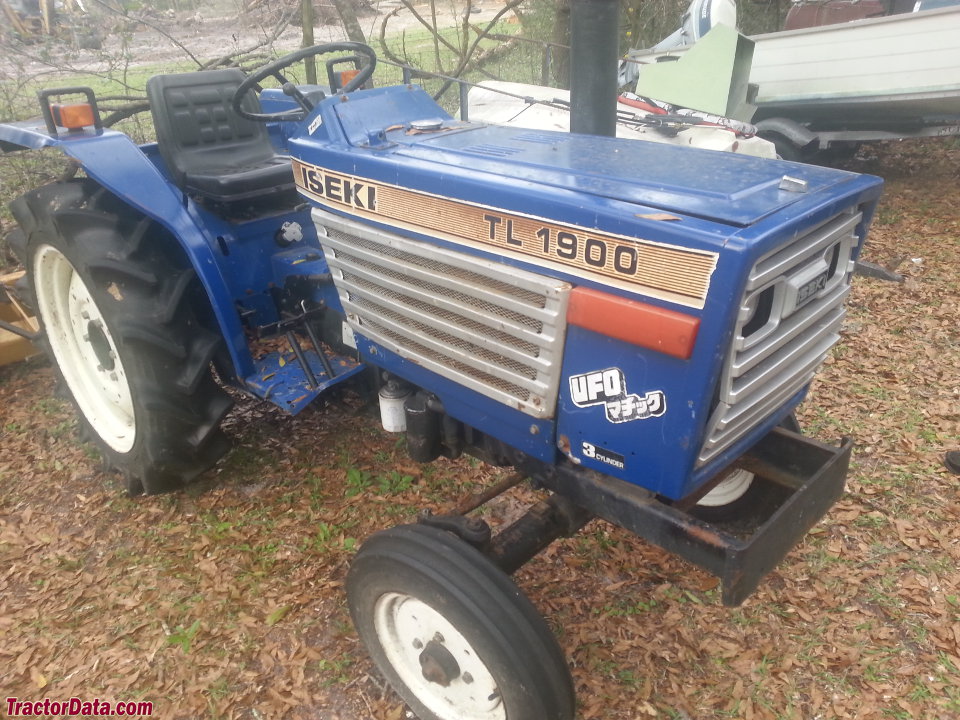

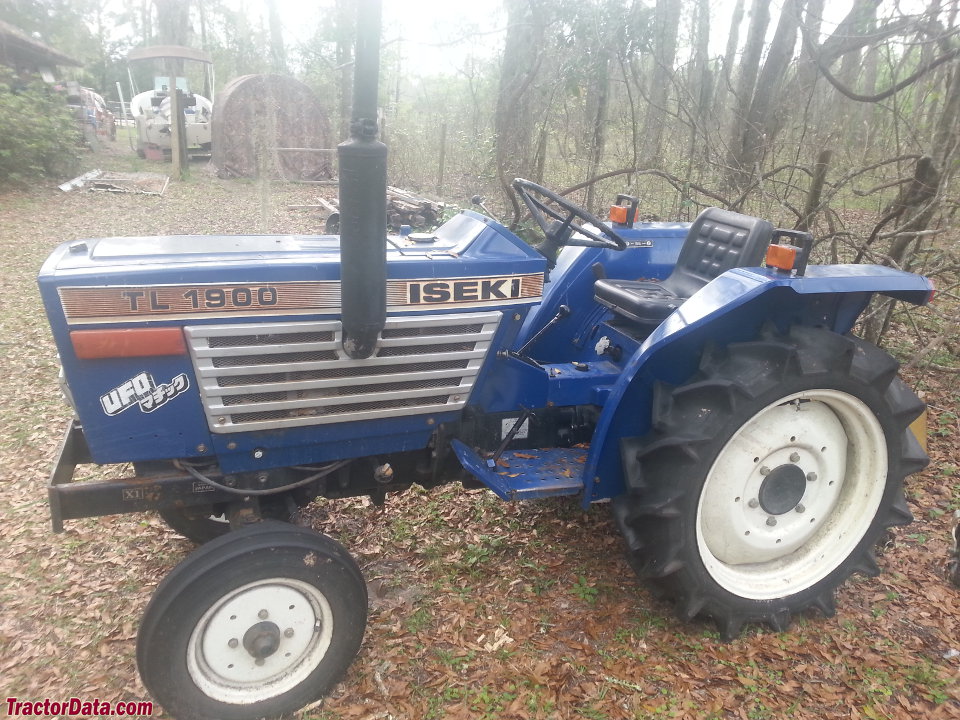

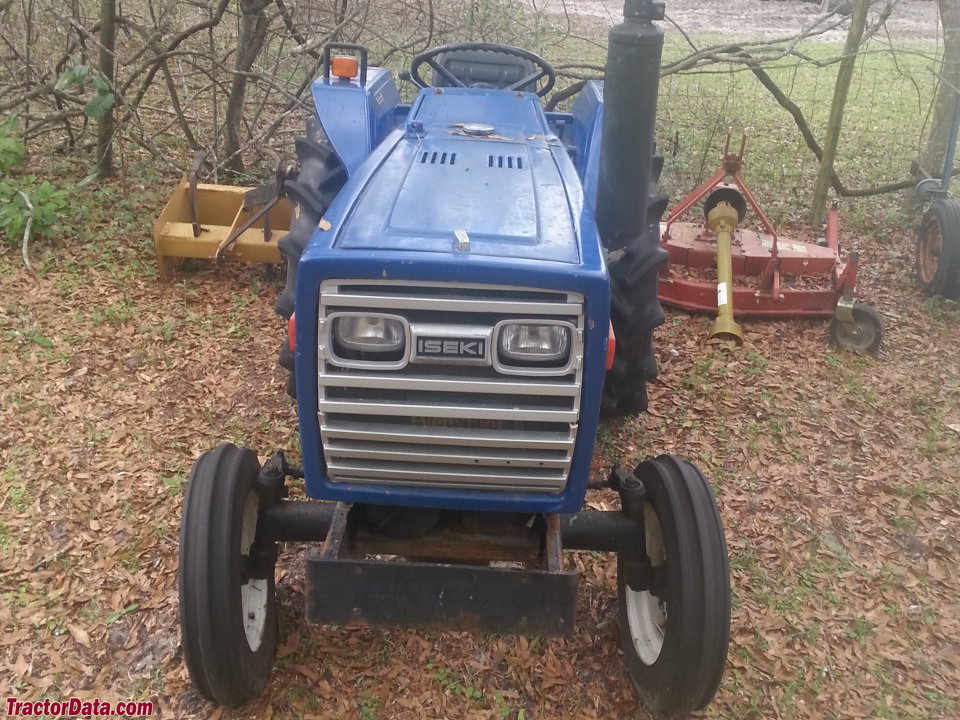

Iseki TL1900
Iseki TL1900 — TL Series · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
1995 to 2183 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference

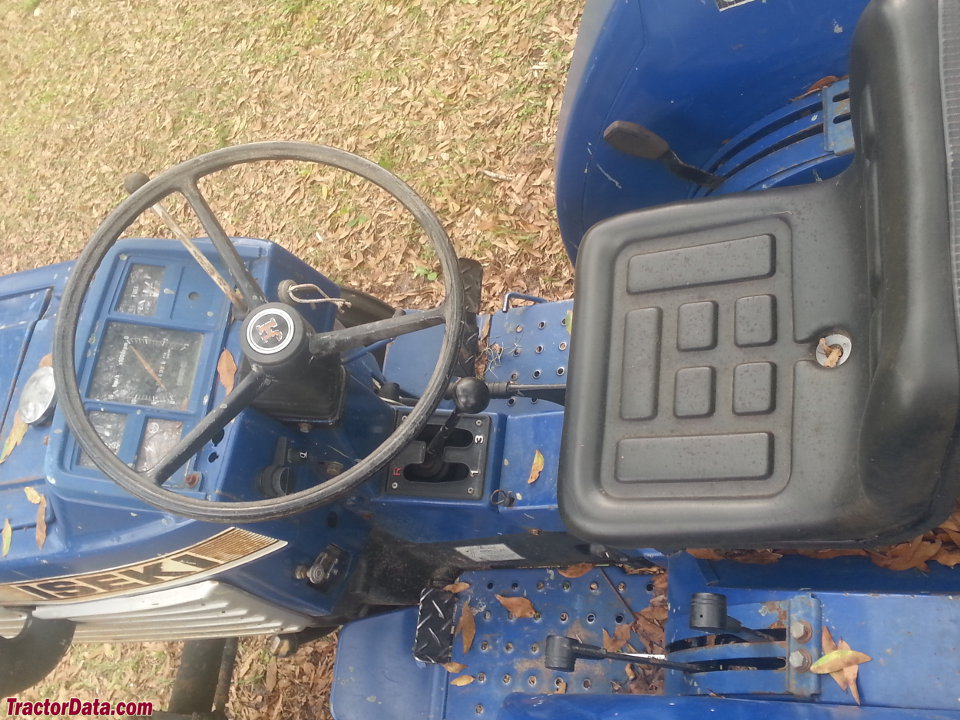

Open operator station.Reference
Variants
TL1900F4WDReference
Engine
Isuzu 1.2L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine14.2 kWReference
Isuzu E3AF1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.2 LReference
Bore/Stroke76 x 86 mmReference
Power14.2 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity7.0 LReference
Oil capacity4.7 LReference
Oil change100 hReference
Transmission
9-speed gearReference
18-speed creeperReference
TypegearReference
Gears9 forward and 3 reverseReference
Oil capacity32.0 LReference
Three gears (1-3) plus reverse (R) in three ranges.Reference
TypecreeperReference
Gears18 forward and 6 reverseReference
Three gears (1-3) plus reverse (R) in three ranges with additional creeper range.Reference

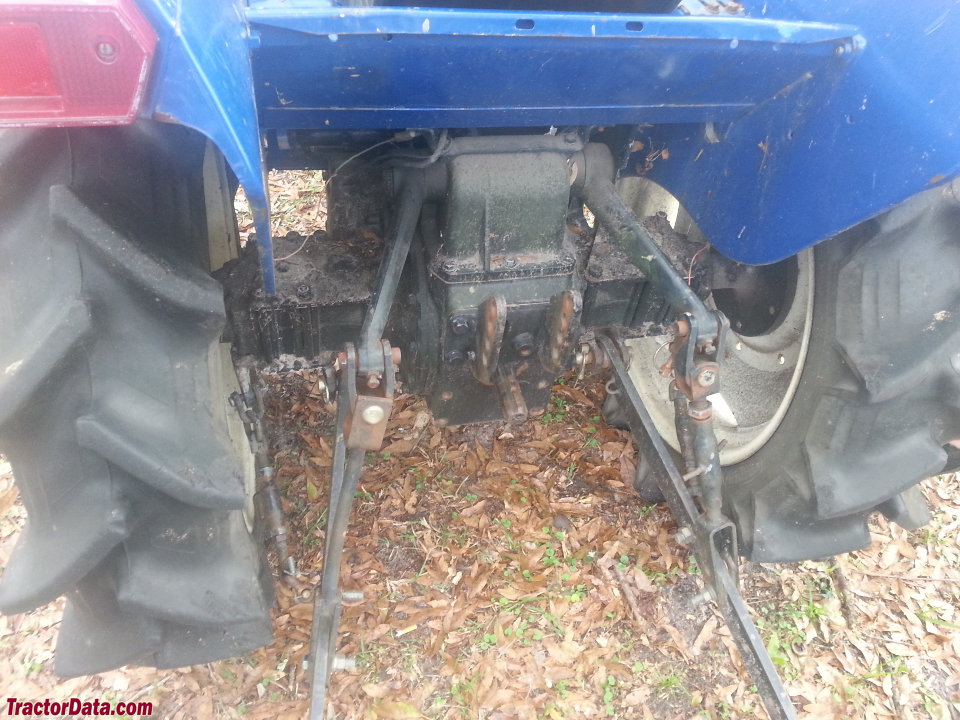

PTO & Hydraulics
Rear TypeJIS0Reference
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM553@2600Reference
Engine RPM731@2600Reference
Engine RPM906@2600Reference
Engine RPM1280@2600Reference
Dimensions
Wheelbase148 cmReference
Weight1995 to 2183 poundsReference
Front tire4.00-12Reference
2WD Rear tire8.3-24Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3-24Reference
4WD Standard tires (ag)Front: 6-14. Rear: 8.3-24Reference
Length270 cmReference
2WD Width118 cmReference
4WD Width123 cmReference
Height193 cmReference
2WD Weight904 kgReference
4WD Weight990 kgReference
Ground clearance28 cmReference
2WD Front tread91/103 cmReference
4WD Front tread100 cmReference
Rear tread93/108 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
