Tractor · 1980Unverified

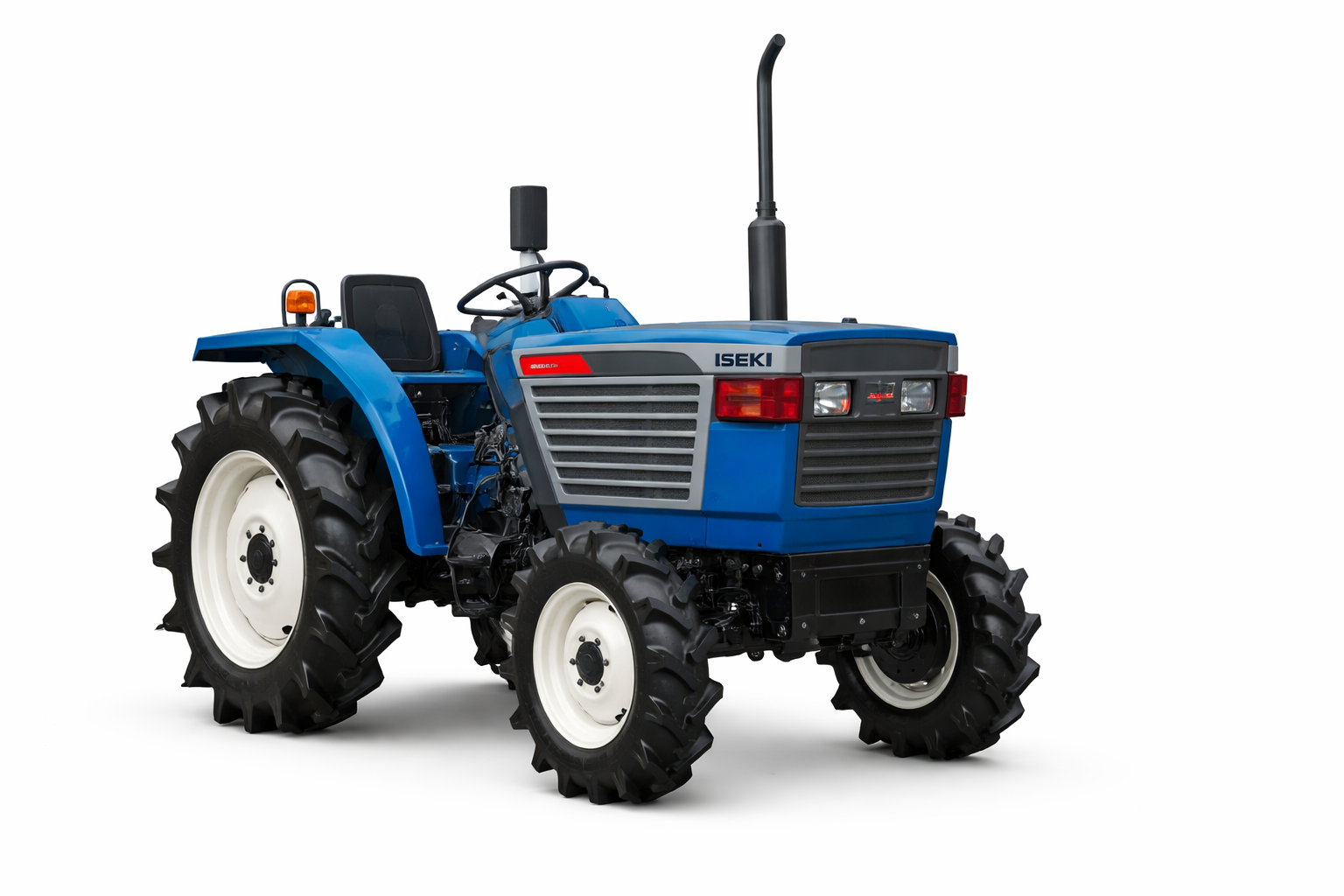

Iseki TL1901
Iseki TL1901 — TL-01 Series · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
2006 to 2328 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TL1901F4WDReference
Engine
Isuzu 1.3L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine13.9 kWReference
Isuzu E3AE1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke80 x 86 mmReference
Power13.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity7.0 LReference
Oil capacity4.8 LReference
Transmission
18-speedReference
Gears18 forward and 6 reverseReference
Oil capacity32.0 LReference
Three gears (1-3), plus reverse (R), in three ranges. Additional shift between working and creeper ranges.Reference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM553@2600Reference
Engine RPM731@2600Reference
Engine RPM906@2600Reference
Engine RPM1280@2600Reference
Dimensions
Wheelbase148 cmReference
Weight2006 to 2328 poundsReference
Front tire4.00-15Reference
2WD Rear tire9.5-22Reference
2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-22Reference
4WD Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference
2WD Length270 cmReference
4WD Length277 cmReference
2WD Width120 cmReference
4WD Width123 cmReference
2WD Height (exhaust)193 cmReference
4WD Height (exhaust)194 cmReference
2WD Weight909 kgReference
4WD Weight1055 kgReference
2WD Ground clearance32 cmReference
4WD Ground clearance26 cmReference
2WD Front tread91 to 103 cmReference
4WD Front tread100 cmReference
Rear tread93 to 108 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
