Tractor · 1980Unverified

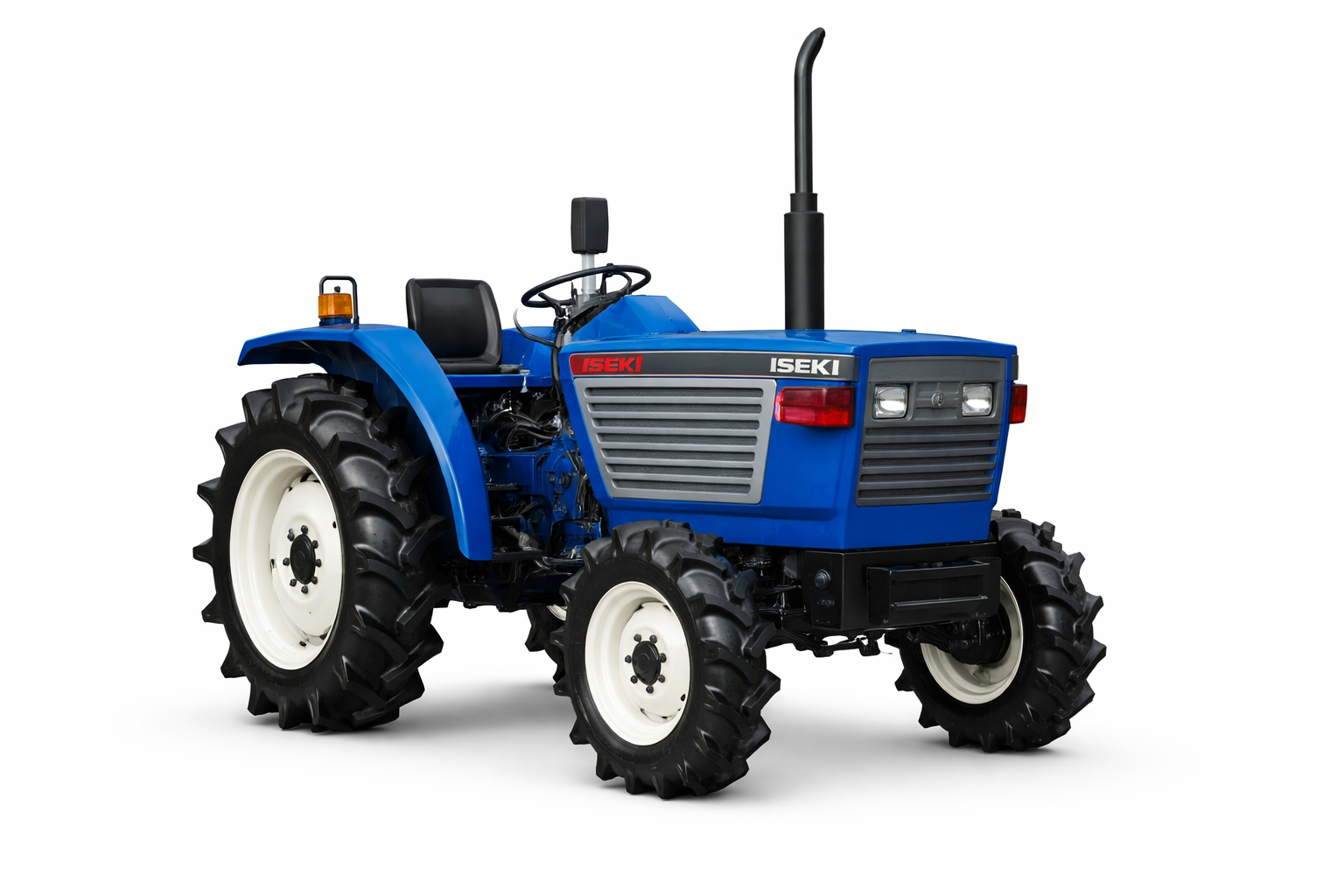

Iseki TL2101
Iseki TL2101 — TL-01 Series · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
2094 to 2326 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TL2101F4WDReference
Engine
Isuzu 1.4L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine15.4 kWReference
Isuzu E3AG1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 86 mmReference
Power15.4 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity7.0 LReference
Oil capacity4.8 LReference
Transmission
18-speedReference
Gears18 forward and 6 reverseReference
Oil capacity34.1 LReference
Three gears (1-3), plus reverse (R), in three ranges. Additional shift between working and creeper ranges.Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM553@2600Reference
Engine RPM731@2600Reference
Engine RPM906@2600Reference
Engine RPM1280@2600Reference
Dimensions
Wheelbase157 cmReference
Weight2094 to 2326 poundsReference
Front tire4.00-15Reference
2WD Rear tire9.5-24Reference
2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-24Reference
4WD Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference
Length287 cmReference
Width124 cmReference
Height (exhaust)198 cmReference
2WD Weight949 kgReference
4WD Weight1055 kgReference
2WD Ground clearance29 cmReference
4WD Ground clearance27 cmReference
2WD Front tread96 cmReference
4WD Front tread104 cmReference
Rear tread98 to 113 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
