Tractor · 1980Unverified

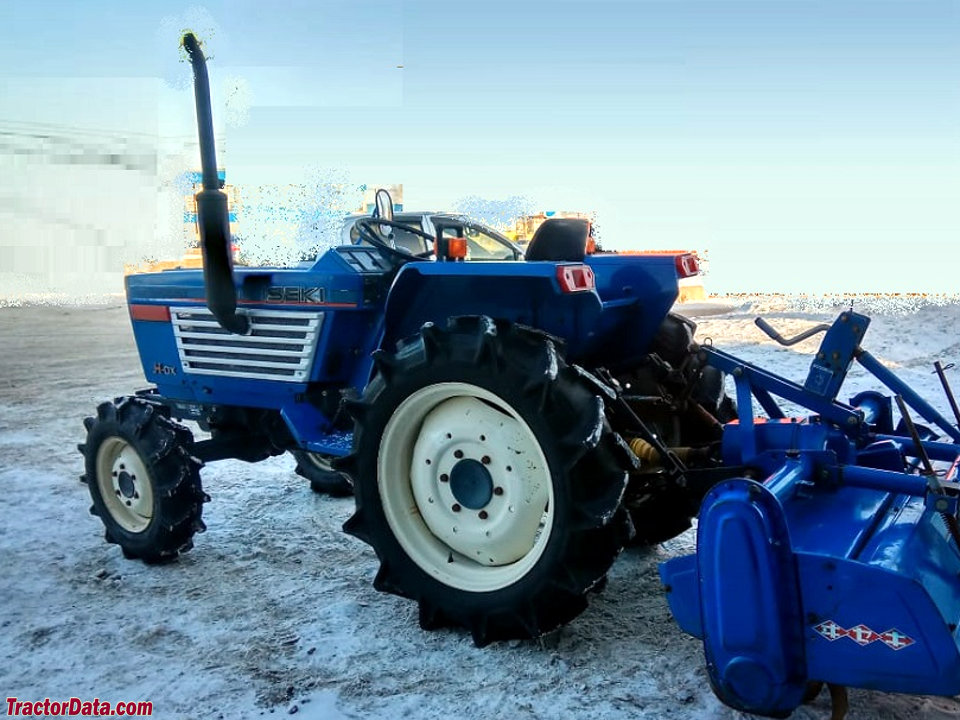

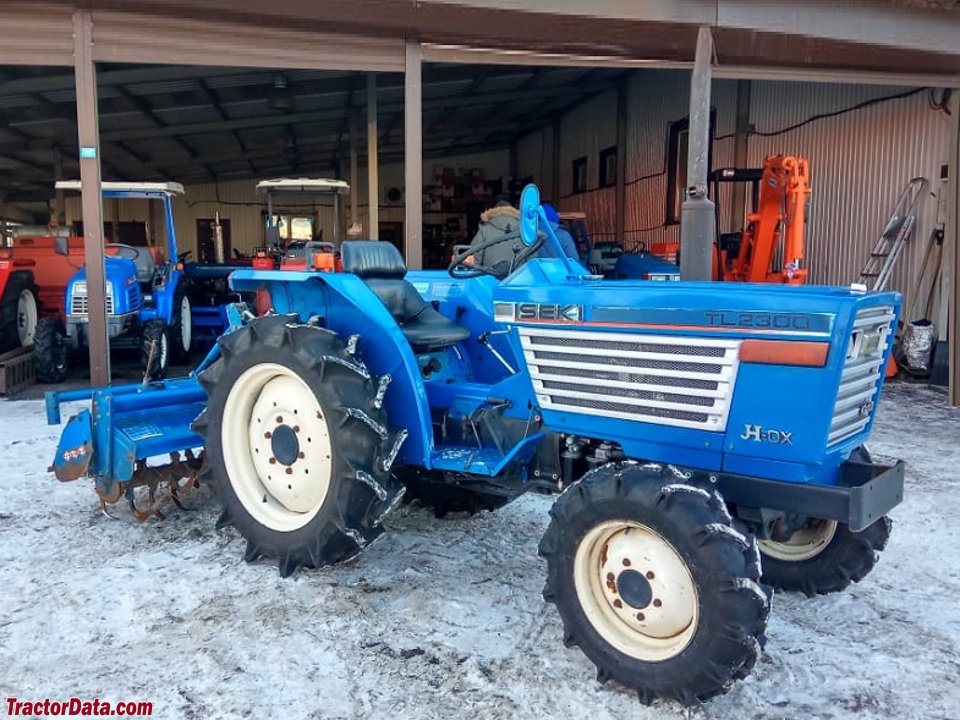

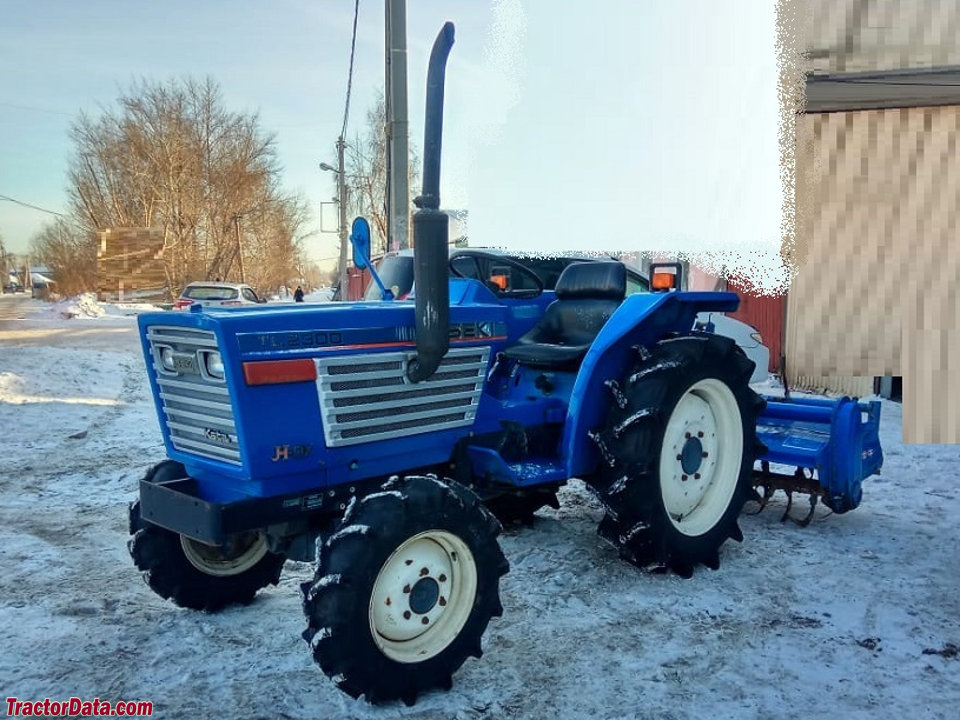

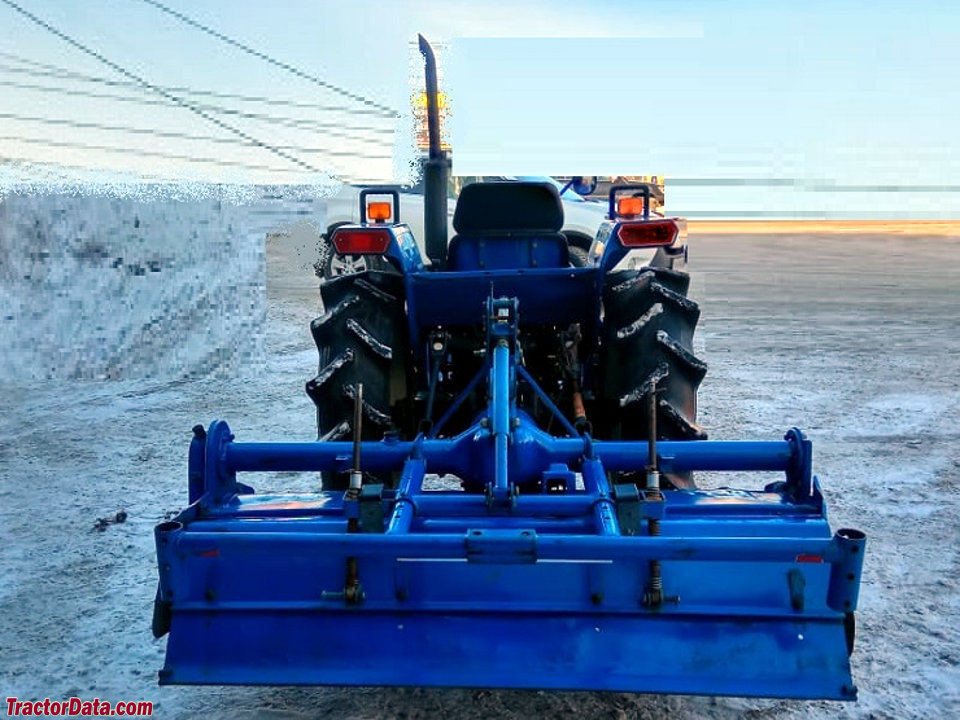

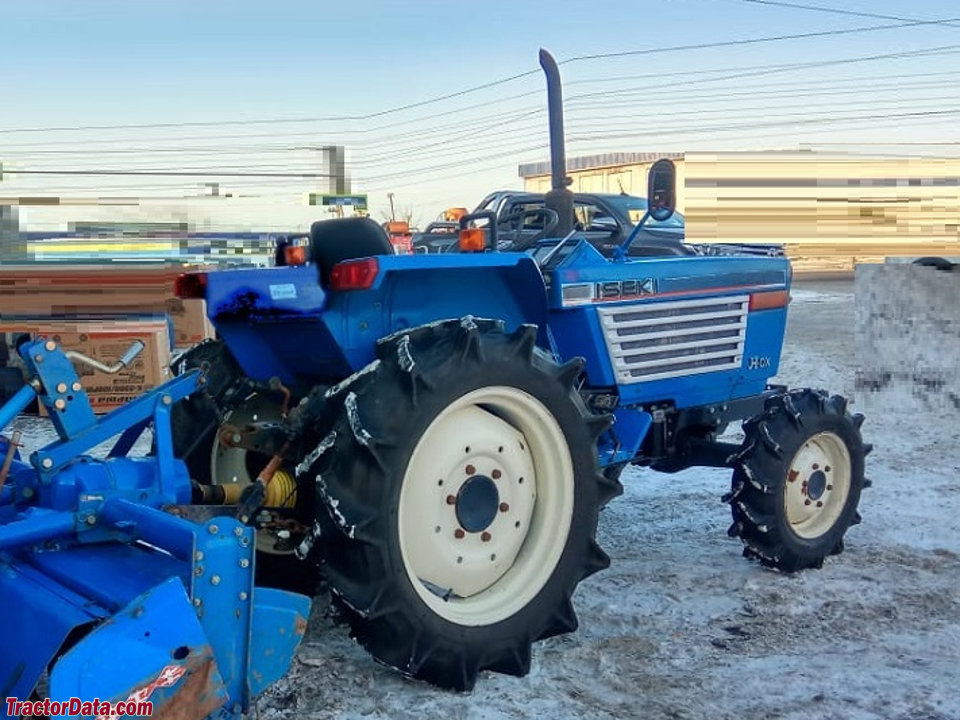

Iseki TL2300
Iseki TL2300 — TL Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
2094 to 2293 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TL2300F4WDReference
Engine
Isuzu 1.3L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine17.2 kWReference
Isuzu E3AE1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke80 x 86 mmReference
Power17.2 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity7.0 LReference
Oil capacity4.7 LReference
Oil change100 hReference
Transmission
9-speed gearReference
18-speed creeperReference
TypegearReference
Gears9 forward and 3 reverseReference
Oil capacity34.0 LReference
Three gears (1-3) plus reverse (R) in three ranges.Reference
TypecreeperReference
Gears18 forward and 6 reverseReference
Three gears (1-3) plus reverse (R) in three ranges with additional creeper range.Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM553@2600Reference
Engine RPM731@2600Reference
Engine RPM906@2600Reference
Engine RPM1280@2600Reference
Dimensions
Wheelbase157 cmReference
Weight2094 to 2293 poundsReference
Front tire4.00-15Reference
2WD Rear tire9.5-24Reference
2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-24Reference
4WD Standard tires (ag)Front: 6-14. Rear: 9.4-24Reference
Length287 cmReference
Width124 cmReference
Height196 cmReference
2WD Weight949 kgReference
4WD Weight1040 kgReference
Ground clearance29 cmReference
2WD Front tread96/105 cmReference
4WD Front tread104 cmReference
Rear tread98/113 cmReference
Rear tread102 to 134 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
