Tractor · 1980Unverified

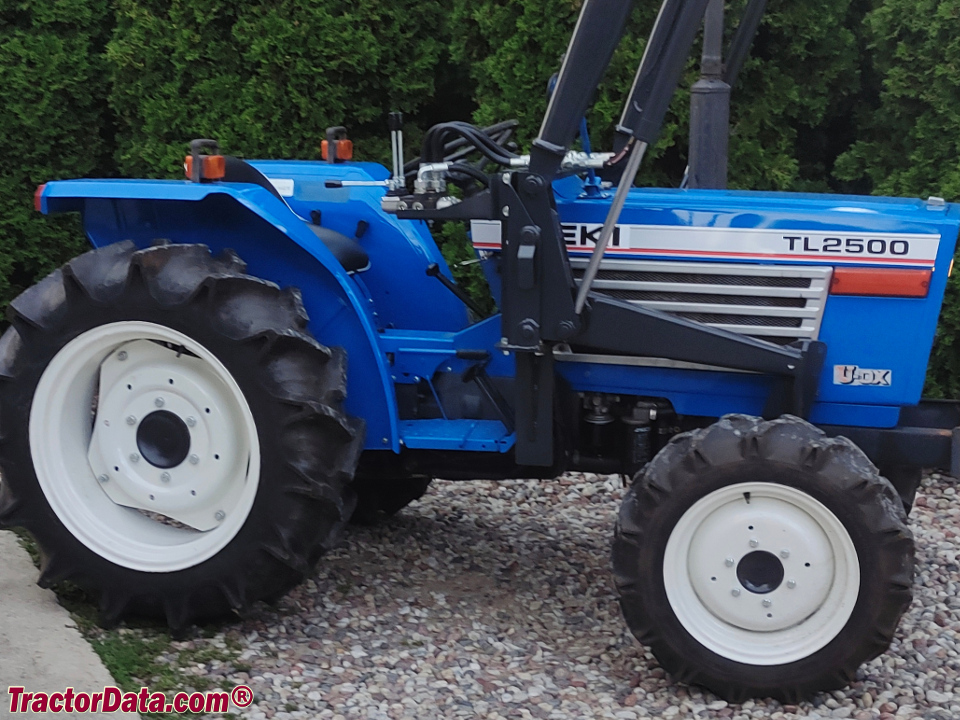

Iseki TL2500
Iseki TL2500 — TL Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
2161 to 2359 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TL2500F4WDReference
Engine
Isuzu 1.3L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine18.6 kWReference
Isuzu E3AE1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke80 x 86 mmReference
Power18.6 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity7.0 LReference
Oil capacity4.7 LReference
Oil change100 hReference
Transmission
9-speed gearReference
18-speed creeperReference
TypegearReference
Gears9 forward and 3 reverseReference
Oil capacity34.0 LReference
Three gears (1-3) plus reverse (R) in three ranges.Reference
TypecreeperReference
Gears18 forward and 6 reverseReference
Three gears (1-3) plus reverse (R) in three ranges with additional creeper range.Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM553@2600Reference
Engine RPM731@2600Reference
Engine RPM906@2600Reference
Engine RPM1280@2600Reference
Dimensions
Wheelbase157 cmReference
Weight2161 to 2359 poundsReference
Front tire5.00-15Reference
2WD Rear tire11.2-24Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 11.2-24Reference
4WD Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Length287 cmReference
Width132 cmReference
Height198 cmReference
2WD Weight980 kgReference
4WD Weight1070 kgReference
Ground clearance32 cmReference
2WD Front tread98 to 128 cmReference
4WD Front tread104 cmReference
Rear tread102 to 134 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
