Tractor · 1980Unverified

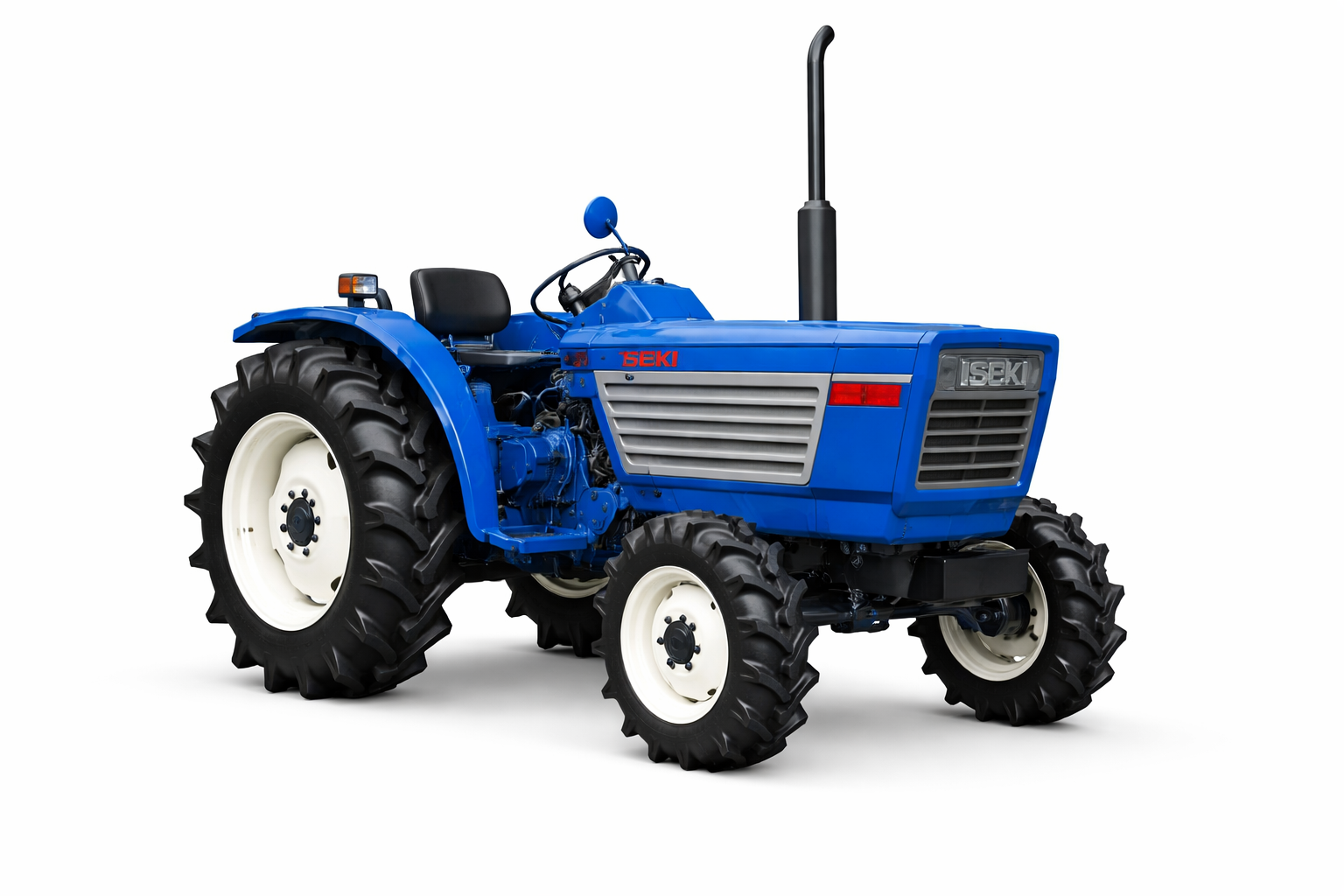

Iseki TL2501
Iseki TL2501 — TL-01 Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
2249 to 2469 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TL2501F4WDReference
Engine
Isuzu 1.5L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine18.4 kWReference
Isuzu E3AD1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke86 x 86 mmReference
Power18.4 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity7.0 LReference
Oil capacity4.8 LReference
Transmission
18-speedReference
Gears18 forward and 6 reverseReference
Oil capacity34.5 LReference
Three gears (1-3), plus reverse (R), in three ranges. Additional shift between working and creeper ranges.Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM553@2600Reference
Engine RPM731@2600Reference
Engine RPM906@2600Reference
Engine RPM1280@2600Reference
Dimensions
Wheelbase165 cmReference
Weight2249 to 2469 poundsReference
Front tire5.00-15Reference
2WD Rear tire12.4-24Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 12.4-24Reference
4WD Standard tires (ag)Front: 7-16. Rear: 12.4-24Reference
Length200 cmReference
Width135 cmReference
Height (exhaust)198 cmReference
2WD Weight1020 kgReference
4WD Weight1119 kgReference
2WD Ground clearance34 cmReference
4WD Ground clearance32 cmReference
2WD Front tread98 to 128 cmReference
4WD Front tread104 cmReference
Rear tread102 to 134 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
