Tractor · 1980Unverified

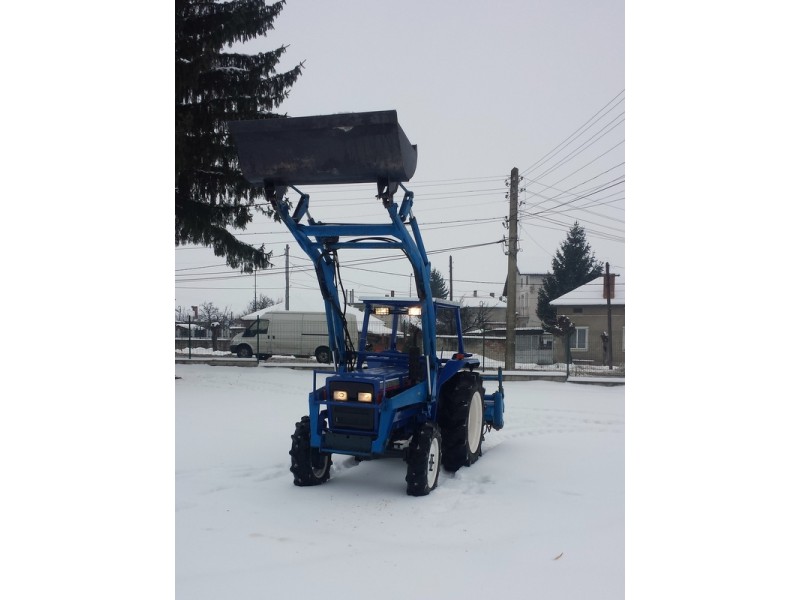

Iseki TL3700
Iseki TL3700 — TL Series · 36 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
2976 to 3428 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Four-post ROPS with canopy. Open station available.Reference
Engine
Isuzu 1.8L 4-cyl dieselReference
Fuel tank40.1 LReference
Engine26.8 kWReference
Isuzu 4FB1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke84 x 82 mmReference
Power26.8 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
18-speedReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Controlposition and draft controlReference
Rear PTO Type540 (1.375)Reference
Engine RPM2600@590Reference
Engine RPM2600@722Reference
Engine RPM2600@945Reference
Engine RPM2600@1540Reference
Dimensions
Wheelbase180 cmReference
Weight2976 to 3428 poundsReference
Front tire6.00-16Reference
Rear tire13.6-26Reference
Standard tires (ag)Front: 6.00-16. Rear: 13.6-26Reference
Length321 cmReference
Width152 cmReference
Height (ROPS)213 cmReference
Height (exhaust)199 cmReference
Ground clearance36 cmReference
2WD Front tread115 to 154 cmReference
4WD Front tread120 cmReference
Rear tread114 to 150 cmReference
2WD Open1349 kgReference
2WD ROPS1450 kgReference
4WD Open1454 kgReference
4WD ROPS1554 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
