Tractor · 1980Unverified

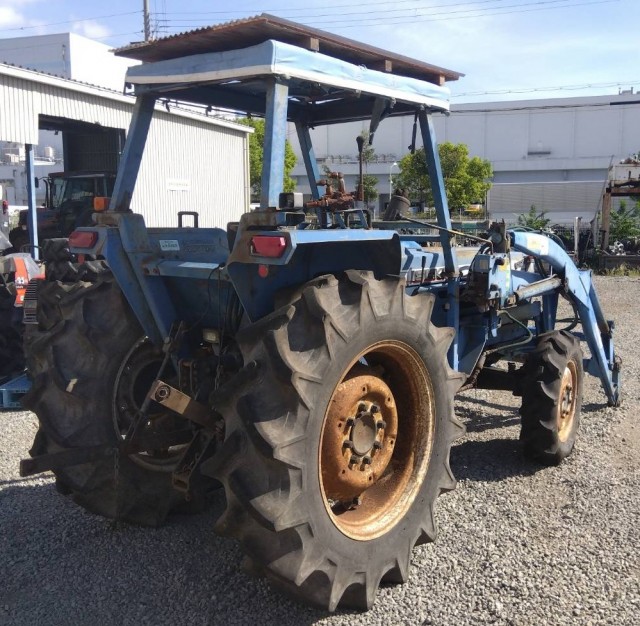

Iseki TL4100
Iseki TL4100 — TL Series · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
3516 to 4012 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Four-post ROPS with canopy. Open station available.Reference
Engine
Isuzu 2.0L 4-cyl dieselReference
Fuel tank50.0 LReference
Engine30.1 kWReference
Isuzu 4FC1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.0 LReference
Bore/Stroke84 x 90 mmReference
Power30.1 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
18-speedReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Controlposition and draft controlReference
Rear PTO Type540 (1.375)Reference
Engine RPM602@2600Reference
Engine RPM734@2600Reference
Engine RPM959@2600Reference
Engine RPM1566@2600Reference
Dimensions
Wheelbase194 cmReference
Weight3516 to 4012 poundsReference
Front tire6.00-16Reference
2WD Rear tire13.6-28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 13.6-28Reference
4WD Standard tires (ag)Front: 8-18. Rear: 13.6-28Reference
Length341 cmReference
Width155 cmReference
Height (ROPS)219 cmReference
Height (exhaust)202 cmReference
Ground clearance39 cmReference
2WD Front tread115 to 154 cmReference
4WD Front tread121 cmReference
Rear tread121 to 162 cmReference
2WD Open1594 kgReference
2WD ROPS1690 kgReference
4WD Open1725 kgReference
4WD ROPS1819 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
