Tractor · 1980Unverified

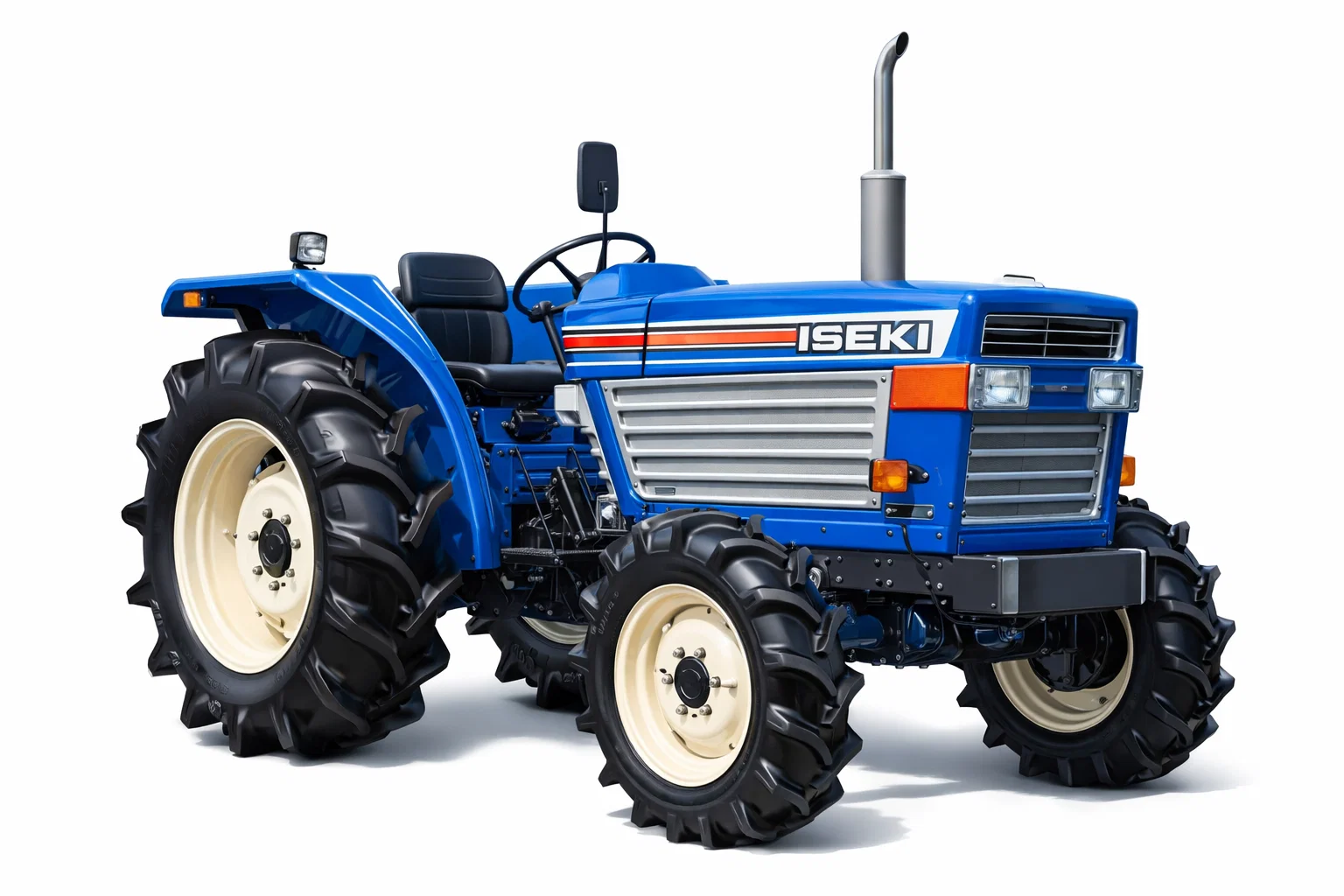

Iseki TL4201
Iseki TL4201 — TL-01 Series · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Weight
2932 to 3208 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TL42012WDReference
TL4201F4WDReference
TL42054WD high-speedReference
Engine
Isuzu 1.5L 4-cyl dieselReference
Fuel tank40.1 LReference
Engine30.9 kWReference
Isuzu 4FA1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power30.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
18-speedReference
Gears18 forward and 6 reverseReference
Three gears, plus reverse, in three ranges. Additional creeper and field range shift.Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM593@2600Reference
Engine RPM722@2600Reference
Engine RPM945@2600Reference
Engine RPM1541@2600Reference
Dimensions
Wheelbase180 cmReference
Weight2932 to 3208 poundsReference
Front tire6.00-16Reference
2WD Rear tire13.6-26Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 13.6-26Reference
4WD Standard tires (ag)Front: 8-18. Rear: 13.6-26Reference
Length321 cmReference
Width152 cmReference
Height (exhaust)193 cmReference
2WD Weight1329 kgReference
4WD Weight1455 kgReference
Ground clearance36 cmReference
2WD Front tread115 to 154 cmReference
4WD Front tread120 cmReference
Rear tread114 to 150 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
