Tractor · 1976Unverified

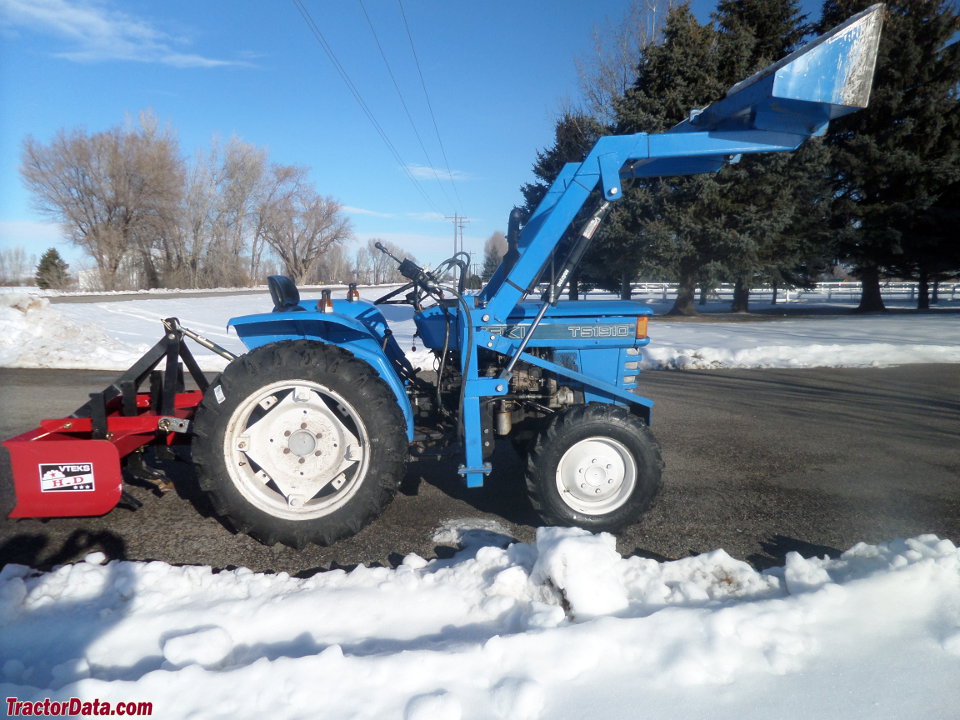

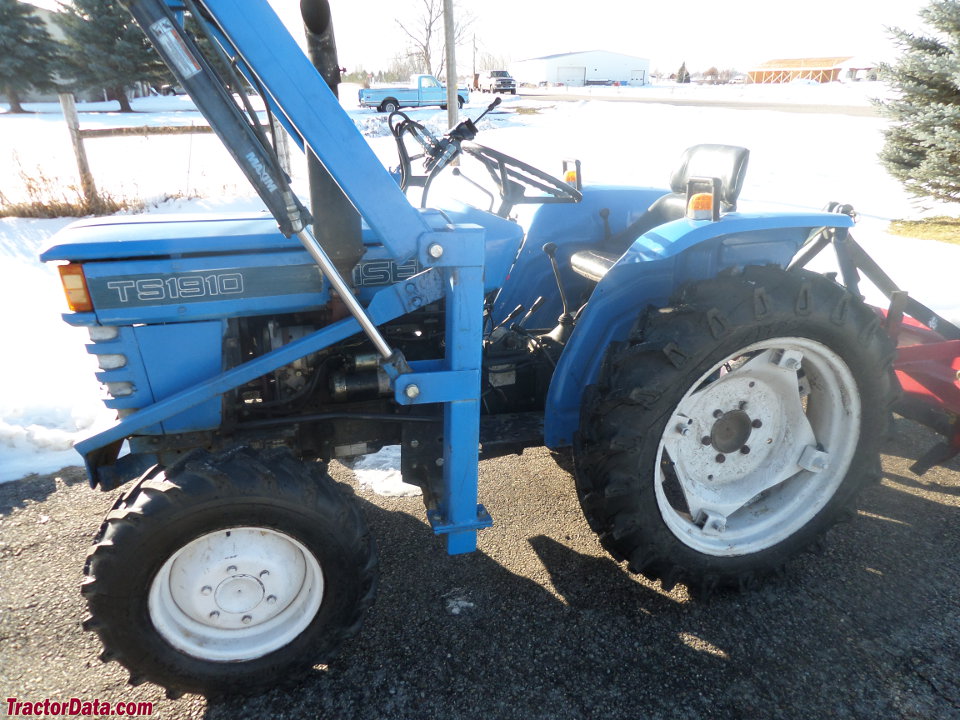

Iseki TS1910
Iseki TS1910 — TS Series · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
1587 to 1907 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TS1910F4WDReference
Engine
Isuzu 1.0L 2-cyl dieselReference
Fuel tank15.9 LReference
Engine13.4 kWReference
Isuzu 2AA1Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke86 x 84 mmReference
Power13.4 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.6 LReference
Transmission
9-speedReference
18-speed creeperReference
Gears9 forward and 3 reverseReference
Three gears (1-3) plus reverse (R) in three ranges.Reference
TypecreeperReference
Gears18 forward and 6 reverseReference
Additional creeper range available on four-wheel drive models.Reference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM548@2600Reference
Engine RPM713@2600Reference
Engine RPM878@2600Reference
Engine RPM1281@2600Reference
Dimensions
Wheelbase137 cmReference
Weight1587 to 1907 poundsReference
Front tire4.00-12Reference
2WD Rear tire8.3/8-24Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3/8-24Reference
2WD Standard tires (ag)Front: 6-14. Rear: 8.3/8-24Reference
Length228 cmReference
Width113 cmReference
2WD Height193 cmReference
4WD Height195 cmReference
2WD Weight719 kgReference
4WD Weight865 kgReference
2WD Ground clearance30 cmReference
4WD Ground clearance25 cmReference
2WD Front tread85 to 94 cmReference
4WD Front tread96 cmReference
Rear tread85 to 100 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
