Tractor · 1979Unverified

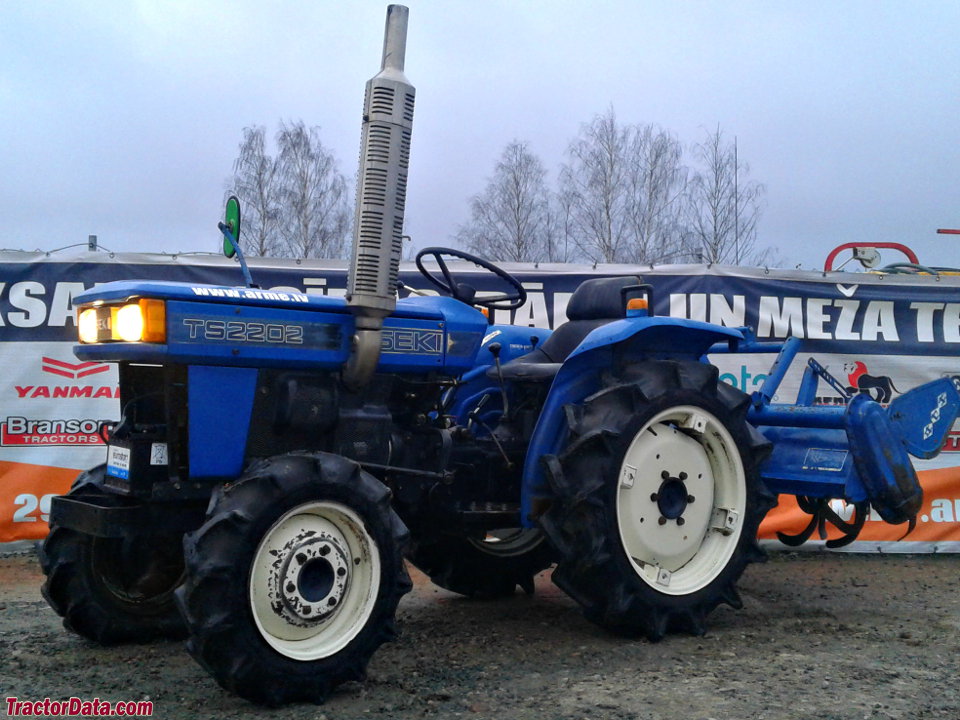

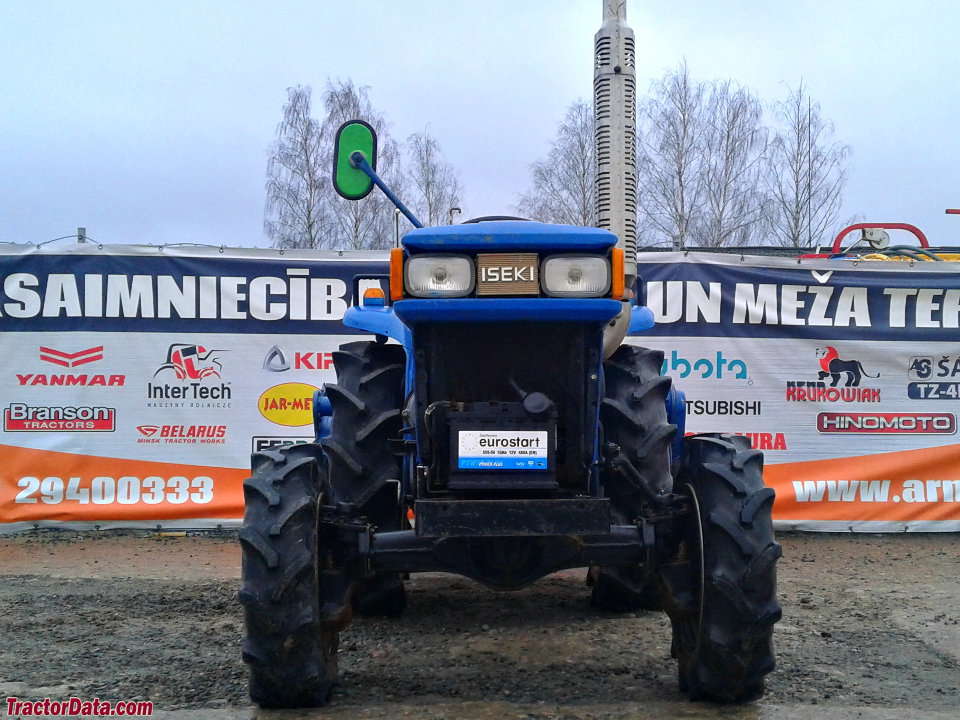

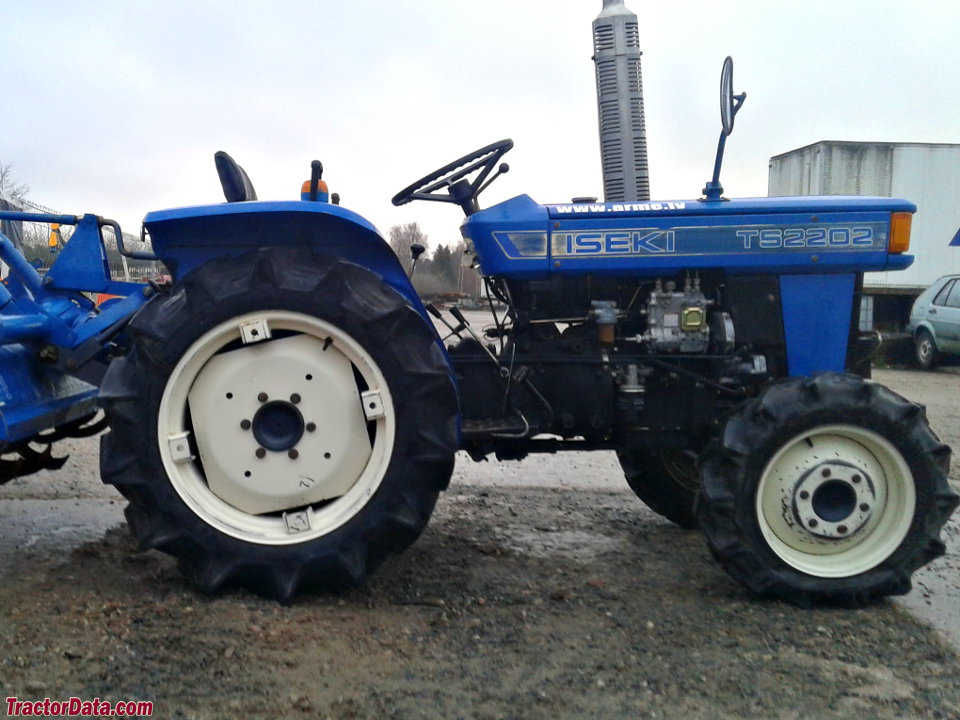

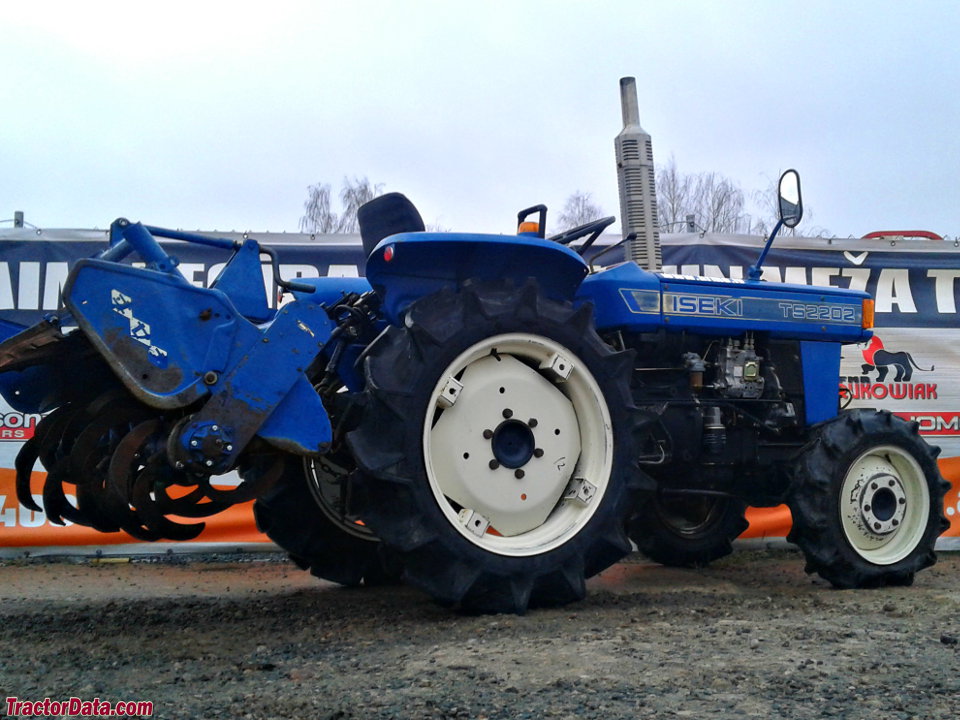

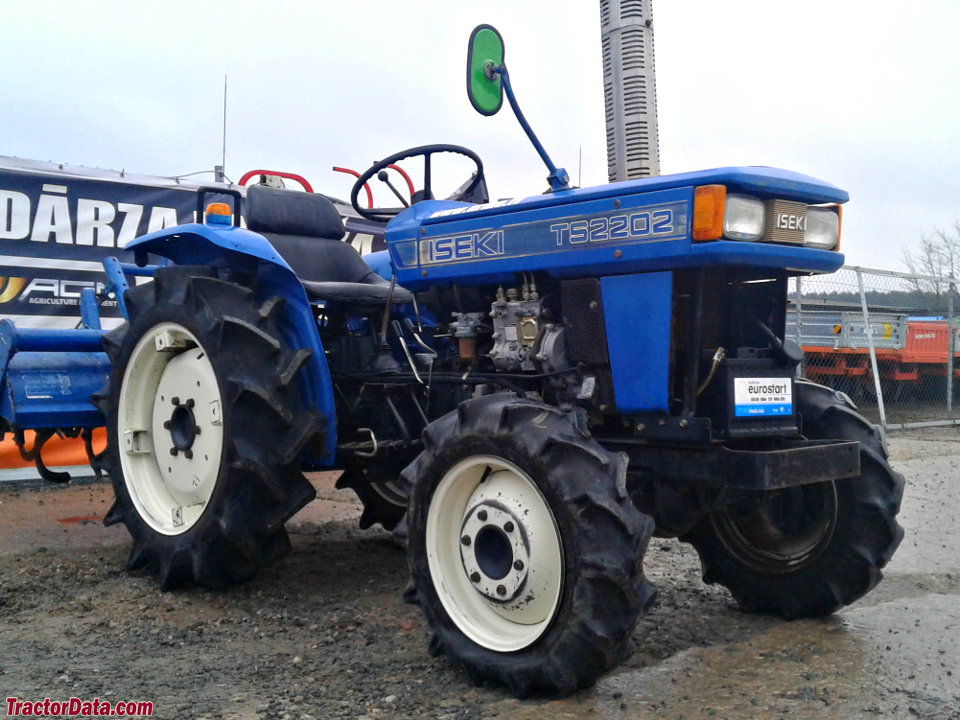

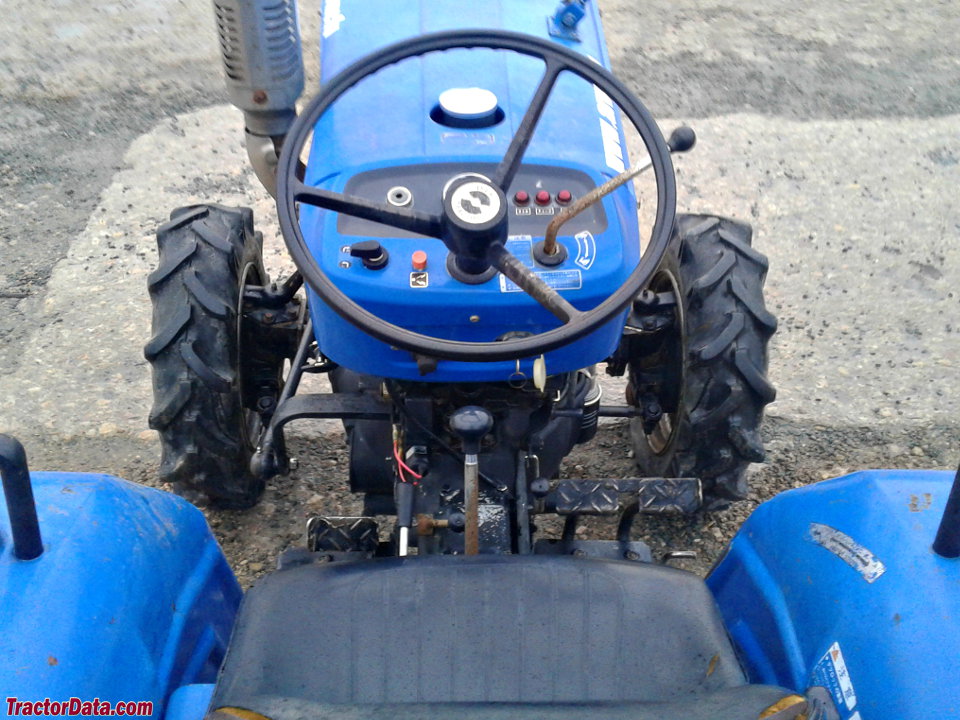

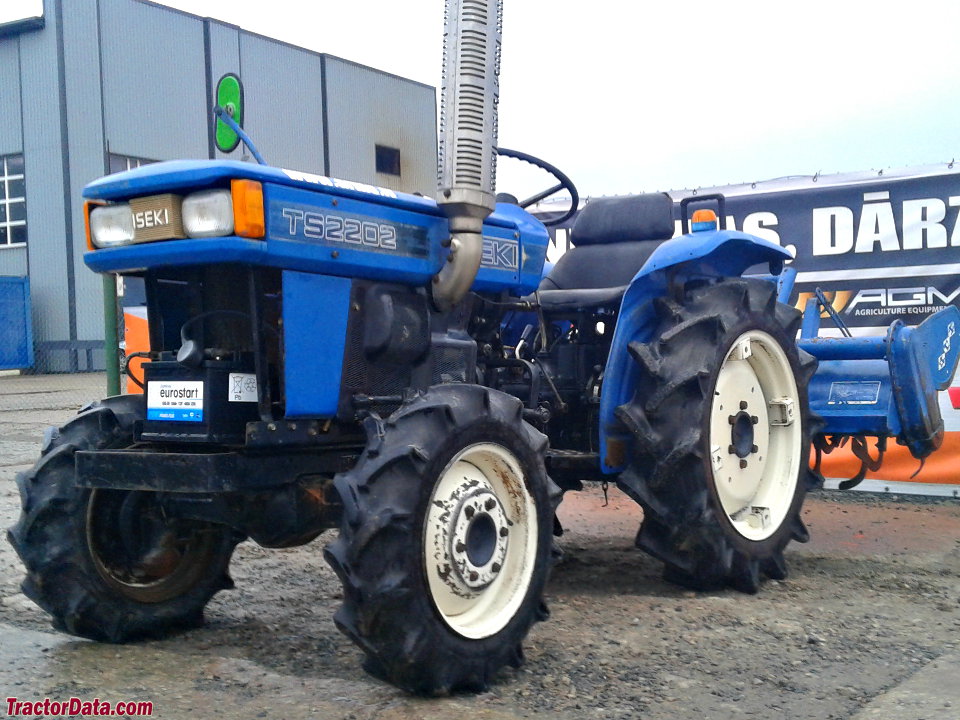

Iseki TS2202
Iseki TS2202 — Compact Utility tractor · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
850 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Open operator station.Reference
Variants
TS22024WDReference
TS22052WDReference
Engine
Isuzu 1.2L 2-cyl dieselReference
Fuel tank15.9 LReference
Engine16.2 kWReference
Isuzu 2AB1Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.2 LReference
Bore/Stroke86 x 102 mmReference
Power16.2 kWReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
18-speedReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM537@2300Reference
Engine RPM711@2300Reference
Engine RPM890@2300Reference
Engine RPM1274@2300Reference
Dimensions
Wheelbase137 cmReference
Weight850 kgReference
Front tire6-14Reference
Rear tire8.3/8-22Reference
Ag front6-14Reference
Ag rear8.3/8-22Reference
Length226 cmReference
Width118 cmReference
Height193 cmReference
Ground clearance25 cmReference
Front tread96 cmReference
Rear tread88/103 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
