Tractor · 1976Unverified

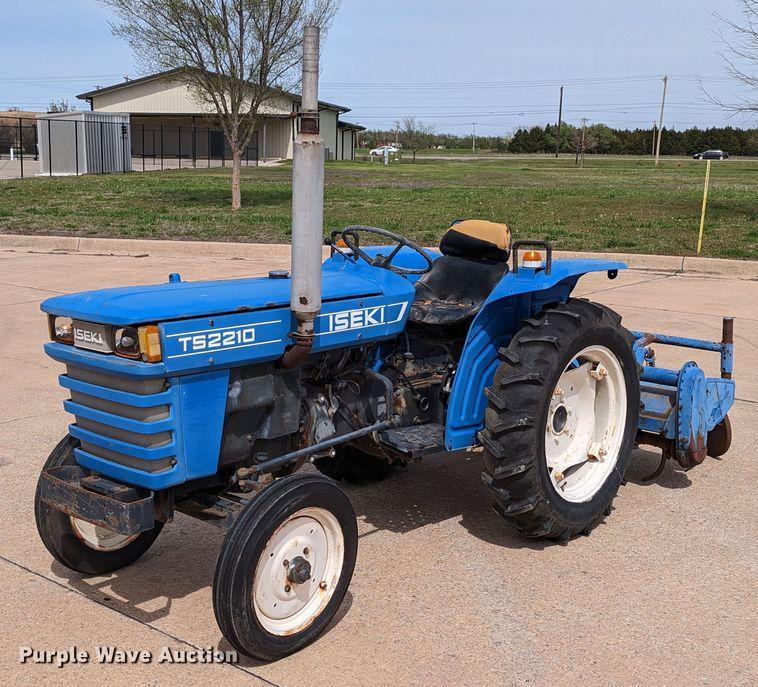

Iseki TS2210
Iseki TS2210 — TS Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1071 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Mechanical brakesReference
Open operator station.Reference
Variants
TS2210F4WDReference
Engine
Isuzu 1.2L 2-cyl dieselReference
Fuel tank13.2 LReference
Engine16.4 kWReference
Isuzu 2AB1Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.2 LReference
Bore/Stroke86 x 102 mmReference
Power16.4 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Three gears (1-3) plus reverse (R) in three ranges. Additional creeper range available on four-wheel drive models.Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM635@2600Reference
Engine RPM780@2600Reference
Engine RPM1001@2600Reference
Engine RPM1573@2600Reference
Dimensions
Wheelbase156 cmReference
Weight1071 kgReference
Front tire4.00-15SLReference
Rear tire11.2-24Reference
Ag front4.00-15SLReference
Ag rear11.2-24Reference
Length281 cmReference
Width129 cmReference
Height124 cmReference
Ground clearance30 cmReference
2WD Front tread94 to 135 cmReference
Rear tread94 to 130 cmReference
Electrical
GroundnegativeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
