Tractor · 1976Unverified

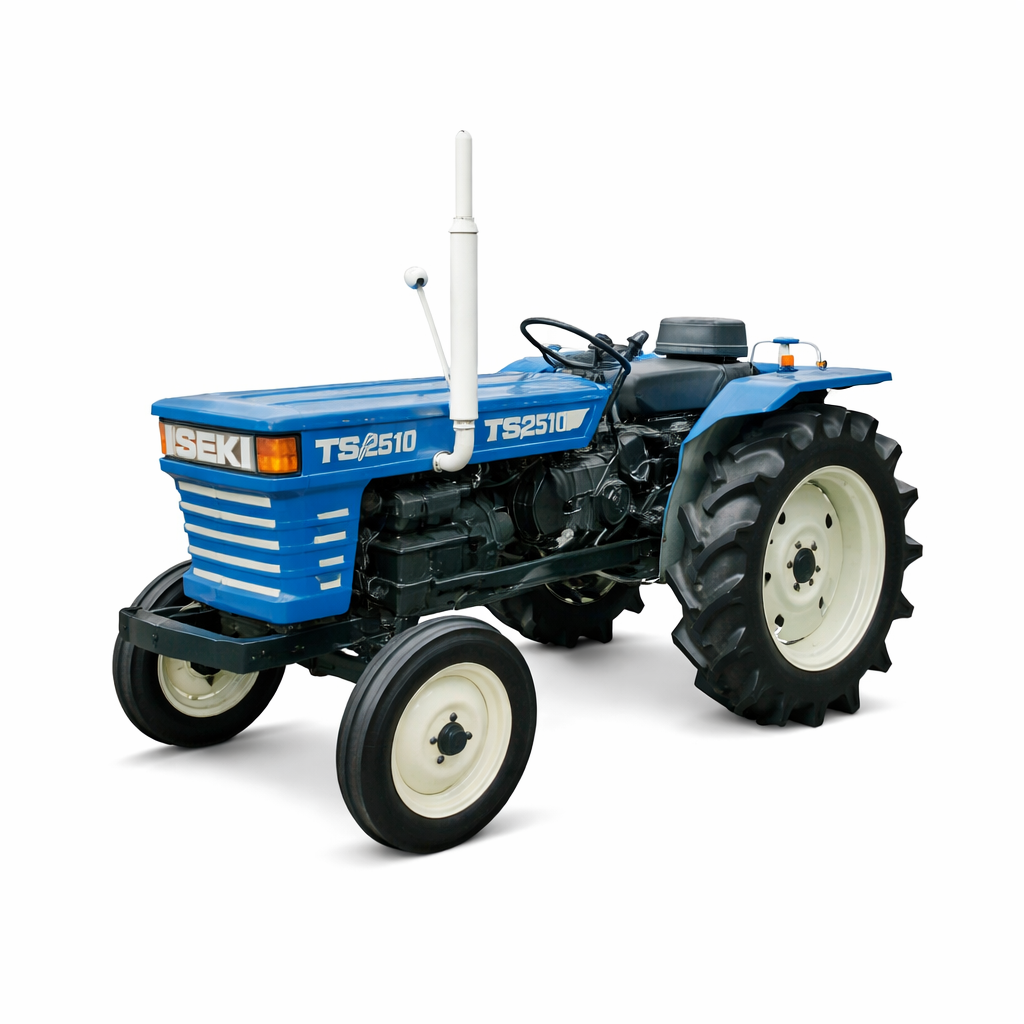

Iseki TS2510
Iseki TS2510 — TS Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1179 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TS2510F4WDReference
Engine
Isuzu 1.2L 2-cyl dieselReference
Fuel tank29.9 LReference
Engine18.6 kWReference
Isuzu 2AB1Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.2 LReference
Bore/Stroke86 x 102 mmReference
Power18.6 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Three gears (1-3) plus reverse (R) in three ranges. Additional creeper range available on four-wheel drive models.Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM630@2600Reference
Engine RPM773@2600Reference
Engine RPM990@2600Reference
Engine RPM1547@2600Reference
Dimensions
Wheelbase164 cmReference
Weight1179 kgReference
Front tire5.00-15Reference
Rear tire11.2/10-24Reference
Standard tires (ag)Front: 5.00-15. Rear: 11.2/10-24Reference
Length298 cmReference
Width144 cmReference
Height137 cmReference
2WD Front tread107 to 148 cmReference
4WD Front tread112 cmReference
Rear tread114 to 143 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
