Tractor · 1976Unverified
Iseki TS2810
Iseki TS2810 — TS Series · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
2690 to 2976 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TS2810F4WDReference

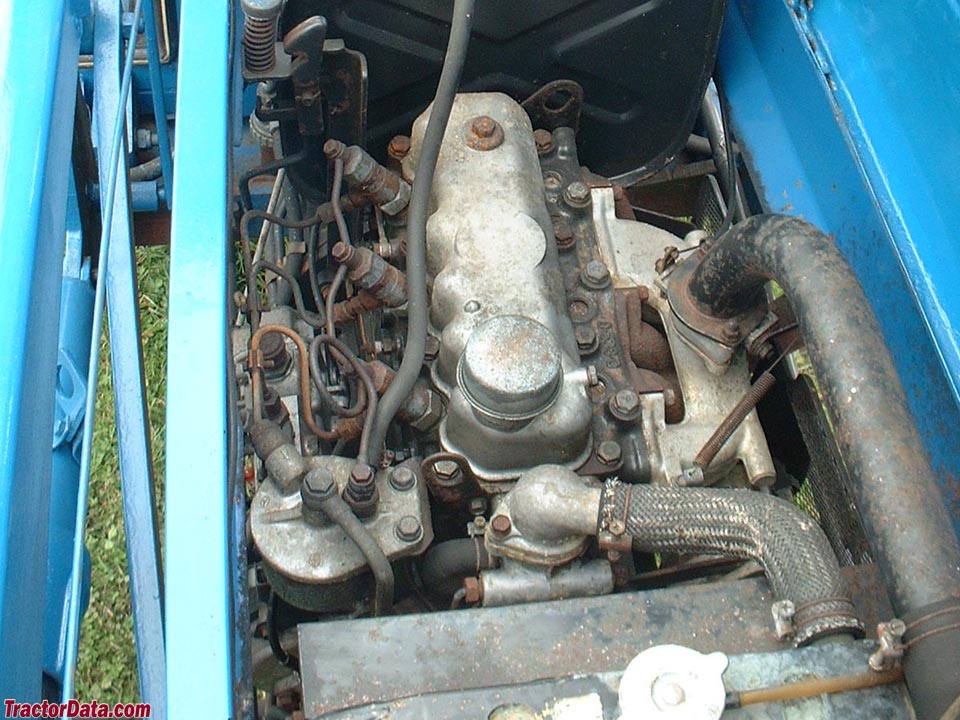

Engine
Isuzu 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine20.9 kWReference
Isuzu 3AA1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power20.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Three gears (1-3) plus reverse (R) in three ranges. Additional creeper range available on four-wheel drive models.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM630@2600Reference
Engine RPM773@2600Reference
Engine RPM990@2600Reference
Engine RPM1547@2600Reference
Dimensions
2WD Wheelbase175 cmReference
4WD Wheelbase178 cmReference
Weight2690 to 2976 poundsReference
Front tire5.00-15Reference
2WD Rear tire12.4/11-24Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 12.4/11-24Reference
4WD Standard tires (ag)Front: 6.00-16. Rear: 12.4/11-24Reference
Length310 cmReference
Width148 cmReference
Height199 cmReference
2WD Weight1220 kgReference
4WD Weight1349 kgReference
2WD Ground clearance36 cmReference
4WD Ground clearance32 cmReference
2WD Front tread107 to 148 cmReference
4WD Front tread112 cmReference
Rear tread114 to 143 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
