Tractor · 1976Unverified

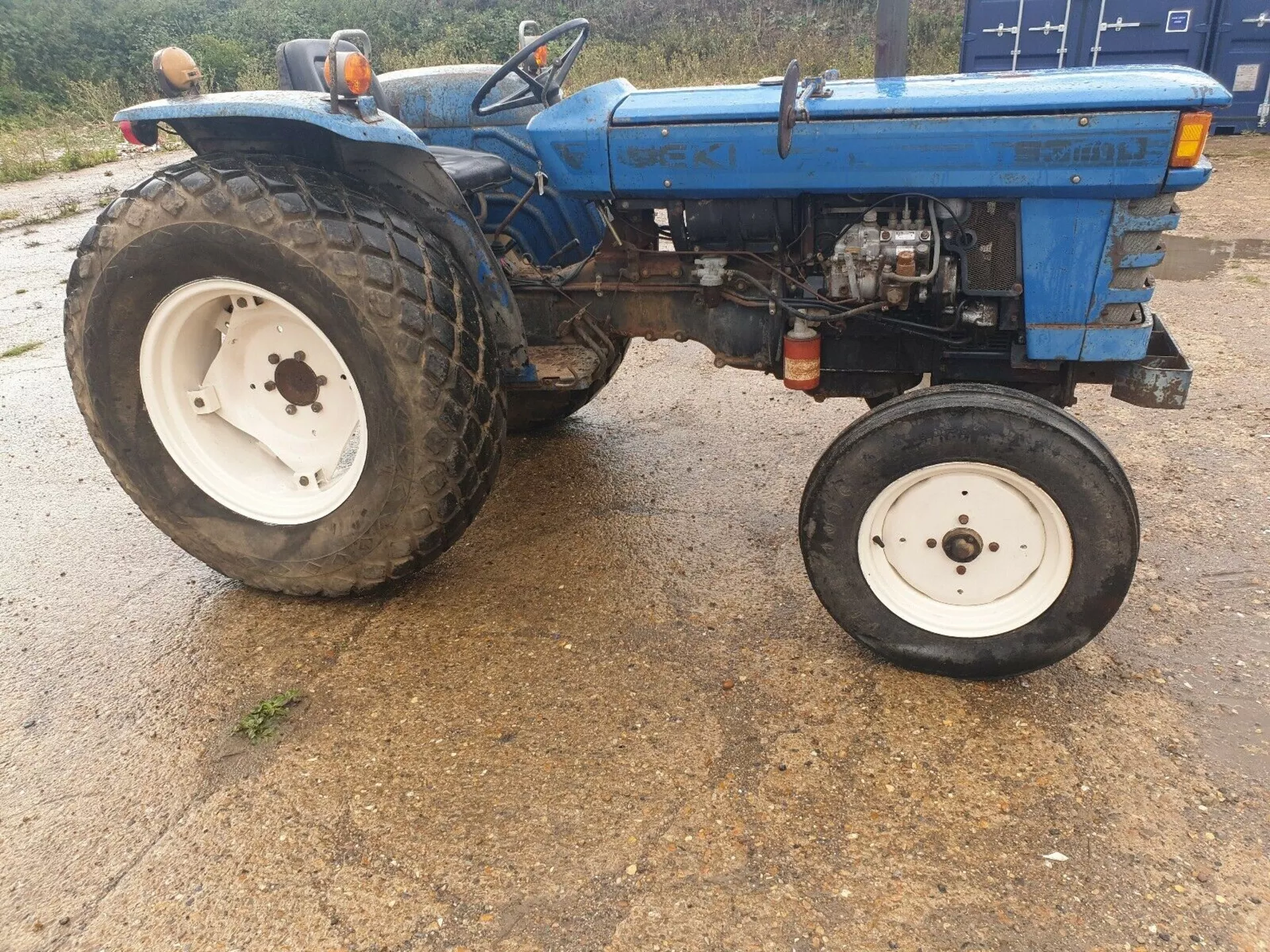

Iseki TS3510
Iseki TS3510 — Compact Utility tractor · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1360 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Wet disc brakesReference
Open operator station.Reference
Variants
TS3510F4WDReference
Engine
Isuzu 1.8L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine25.7 kWReference
Isuzu 3AB1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Sales documents from Australia and New Zealand show the 1.5L Isuzu 3AD1 installed on the TS3510, also at 35 horsepower. European and Japanese sources show the larger 3AB1.Reference
Displacement1.8 LReference
Bore/Stroke86 x 102 mmReference
Power25.7 kWReference
Rated RPM2400Reference
Torque107.9 NmReference
Torque RPM1600Reference
Starter typeelectricReference
Transmission
8-speed gearReference
16-speed creeperReference
TypegearReference
Gears8 forward and 2 reverseReference
TypecreeperReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM582@2400Reference
Engine RPM714@2400Reference
Engine RPM914@2400Reference
Engine RPM1429@2400Reference
Dimensions
Wheelbase175 cmReference
Weight1360 kgReference
Front tire5.50-16Reference
Rear tire13.6/12-24Reference
Ag front5.50-16Reference
Ag rear13.6/12-24Reference
Length310 cmReference
Width153 cmReference
Height217 cmReference
Ground clearance38 cmReference
Front tread117 to 137 cmReference
Rear tread119 to 145 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
