Tractor · 1980Unverified

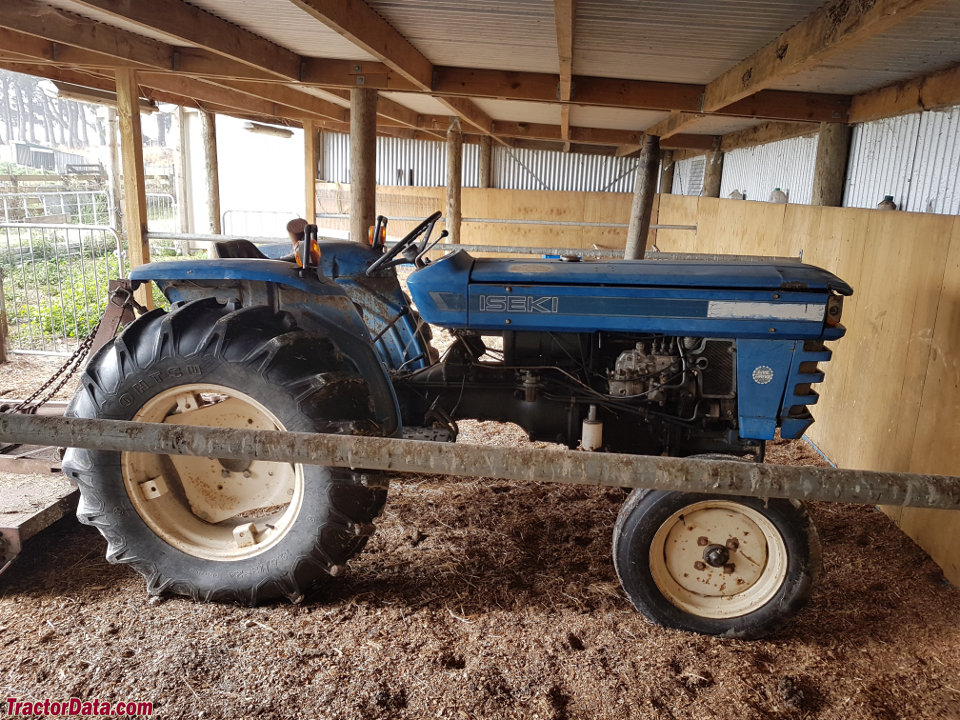

Iseki TS4010
Iseki TS4010 — Compact Utility tractor · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Mechanical drum brakesReference
Open operator station.Reference
Engine
Isuzu 1.8L 3-cyl dieselReference
Engine30.6 kWReference
Isuzu 3AB1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke86 x 102 mmReference
Power30.6 kWReference
Air cleanerdryReference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow20.4 lpmReference
Rear lift1000 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase175 cmReference
Length309 cmReference
Width154 cmReference
Height (steering wheel)143 cmReference
Ground clearance38 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
