Tractor · 1978Unverified

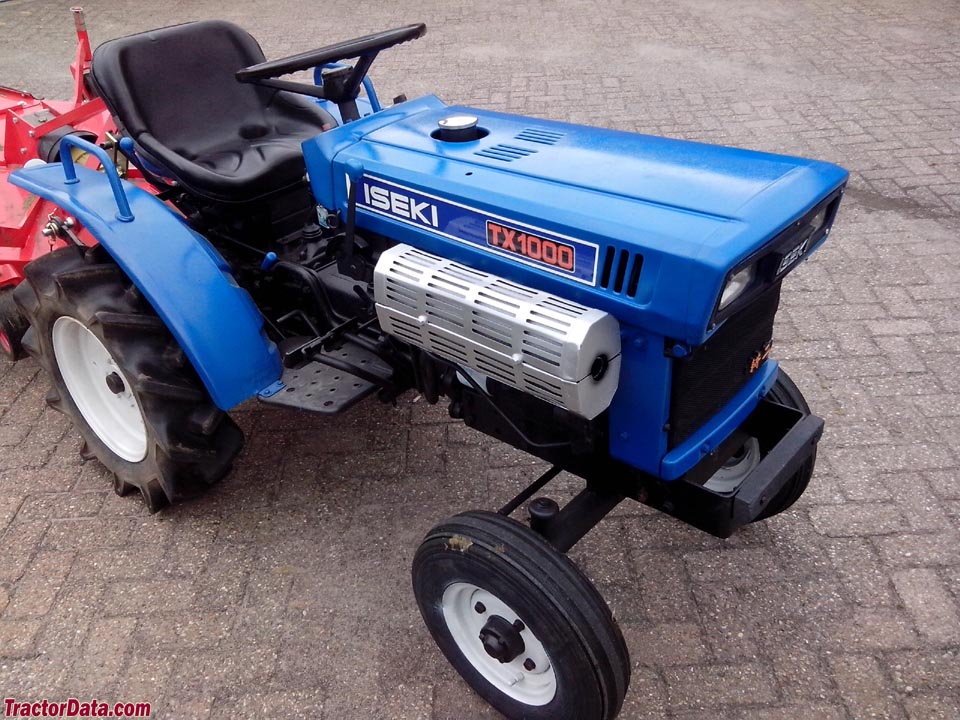

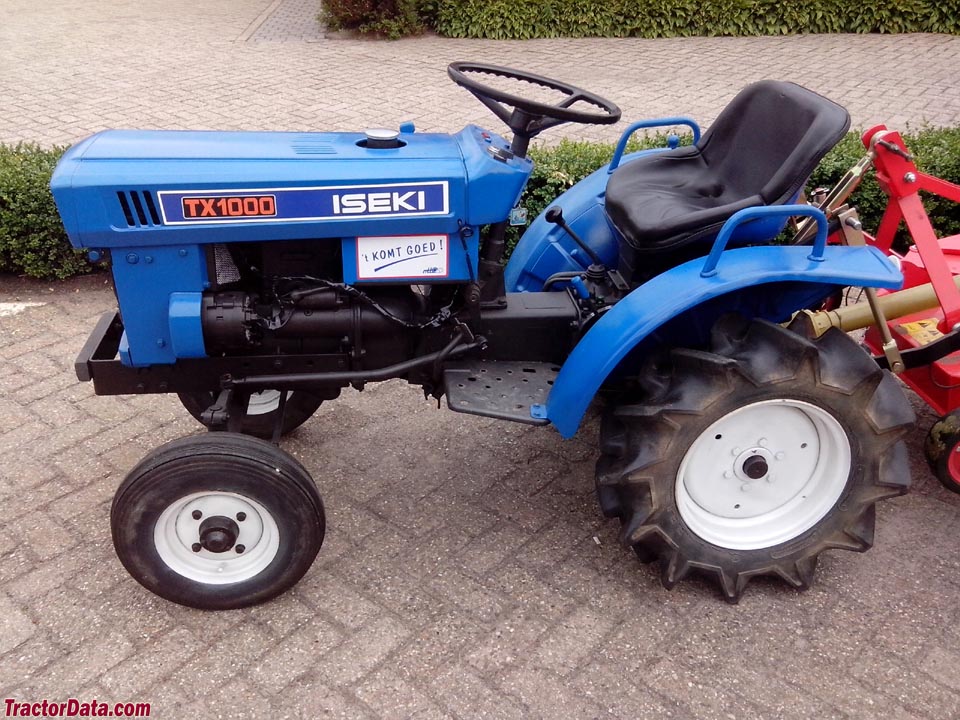

Iseki TX1000
Iseki TX1000 — Compact Utility tractor · 11 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
11 hp
Weight
988 to 1054 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Manual steeringReference
Drum brakesReference
Open operator station.Reference
Variants
TX1000F4WDReference
Engine
Mitsubishi 0.5L 2-cyl dieselReference
Fuel tank12.1 LReference
Engine8.2 kWReference
Mitsubishi KE55Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.5 LReference
Bore/Stroke68 x 74 mmReference
Power8.2 kWReference
Air cleanerdryReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear Type0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM472@2700Reference
Engine RPM752@2700Reference
Engine RPM1177@2700Reference
Dimensions
Wheelbase118 cmReference
Weight988 to 1054 poundsReference
Front tire4.00-9Reference
2WD Rear tire7-14Reference
2WD Standard tires (ag)Front: 4.00-9. Rear: 7-14Reference
4WD Standard tires (ag)Front: 5.00-12. Rear: 7-14Reference
Length182 cmReference
Width90 cmReference
Height115 cmReference
2WD Weight448 kgReference
4WD Weight478 kgReference
2WD Ground clearance30 cmReference
4WD Ground clearance24 cmReference
2WD Front tread70 cmReference
4WD Front tread76 cmReference
Rear tread70 to 80 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
