Tractor · 1978Unverified
Iseki TX1410
Iseki TX1410 — Compact Utility tractor · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
1091 to 1179 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TX1410F4WDReference
Engine
Mitsubishi 0.8L 3-cyl dieselReference
Fuel tank11.7 LReference
Engine10.3 kWReference
Mitsubishi K3AReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke65 x 78 mmReference
Power10.3 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference

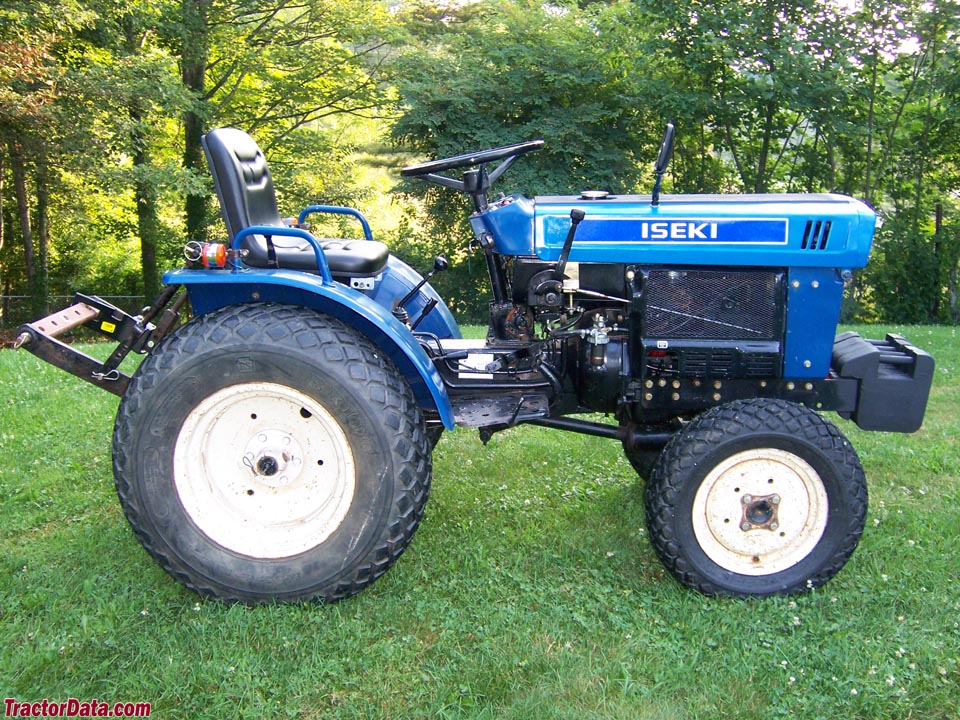

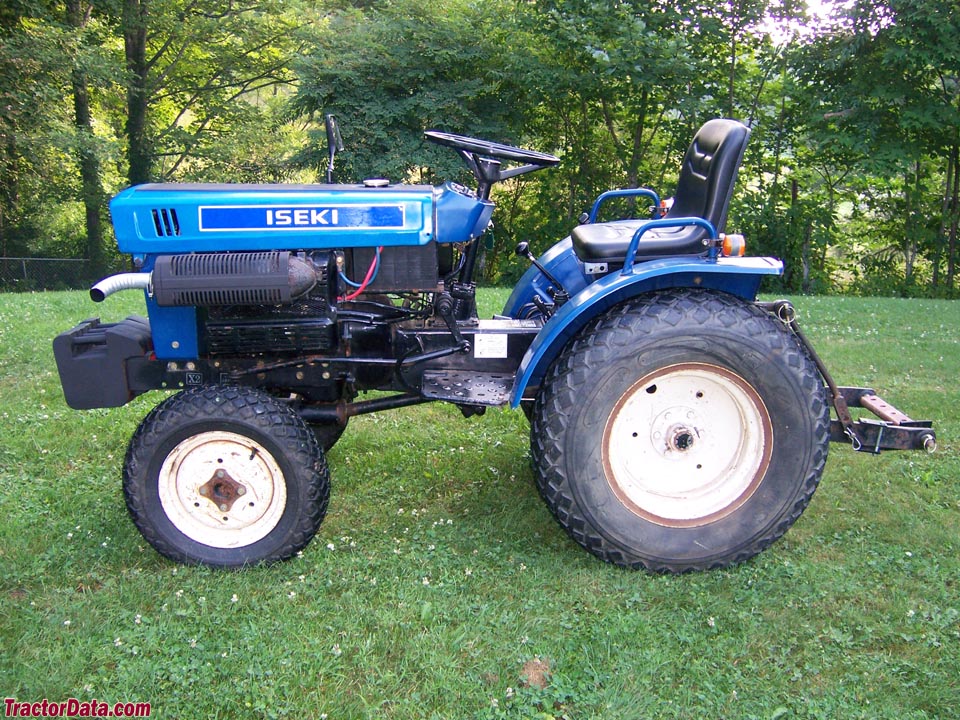

Image courtesy of Greg SargentReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM454@2600Reference
Engine RPM724@2600Reference
Engine RPM1185@2600Reference
Dimensions
Wheelbase121 cmReference
Weight1091 to 1179 poundsReference
Front tire4.50-10Reference
2WD Rear tire8-16Reference
2WD Standard tires (ag)Front: 4.50-10. Rear: 8-16Reference
4WD Standard tires (ag)Front: 5.00-12. Rear: 8-16Reference
Length195 cmReference
Width108 cmReference
Height167 cmReference
2WD Weight494 kgReference
4WD Weight534 kgReference
2WD Ground clearance33 cmReference
4WD Ground clearance24 cmReference
2WD Front tread70 cmReference
4WD Front tread76 cmReference
Rear tread74/91 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
