Tractor · 1978Unverified

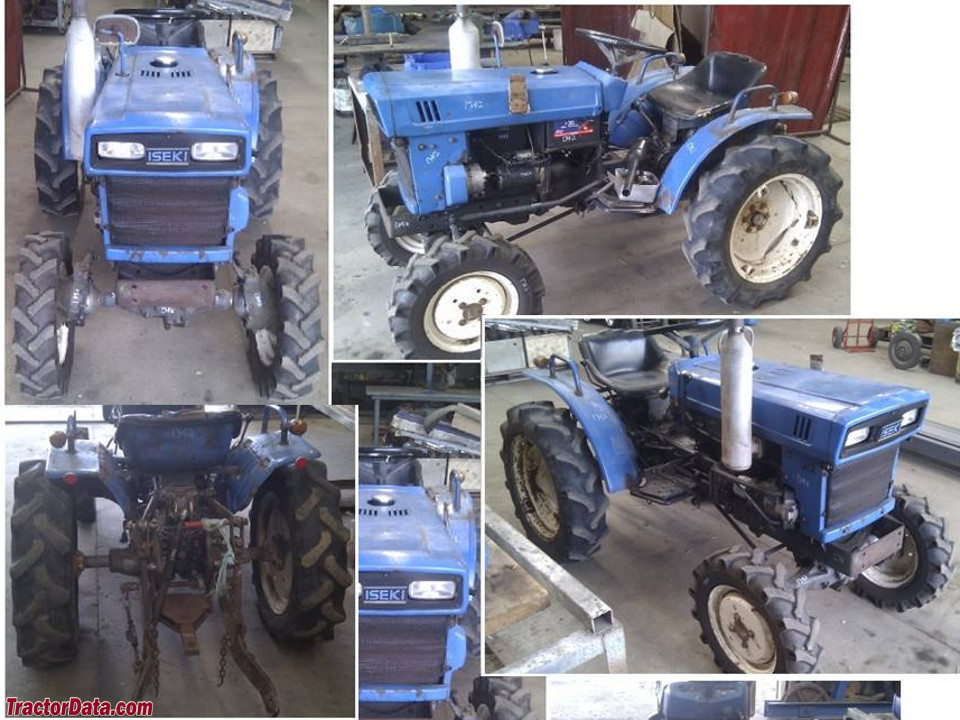

Iseki TX1500
Iseki TX1500 — Compact Utility tractor · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
1120 to 1184 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
The Iseki TX1500 is the same as the Bolens G172. The four-wheel drive Iseki TX1500F is the same as the Bolens G174.Reference
Two- or four-wheel driveReference
Manual steeringReference
Drum brakesReference
Open operator station.Reference
Variants
TX1500F4WDReference
Engine
Mitsubishi 0.8L 2-cyl dieselReference
Fuel tank12.1 LReference
Engine (gross)11.2 kWReference
Mitsubishi KE75Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke78 x 80 mmReference
Power (gross)11.2 kWReference
Air cleanerdryReference
Rated RPM2600Reference
Starter typeelectricReference
Oil capacity2.6 LReference
Exhaust valve clearance0.356 mmReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Oil capacity12.3 LReference
PTO & Hydraulics
Pressure117.2 barReference
Total flow10.2 lpmReference
Rear TypeJIS-0Reference
Rear lift (at ends)380 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM472@2700Reference
Engine RPM752@2700Reference
Engine RPM1177@2700Reference
Dimensions
Wheelbase128 cmReference
Weight1120 to 1184 poundsReference
Front tire4.00-12Reference
2WD Rear tire8-18Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8-18Reference
4WD Standard tires (ag)Front: 5.00-12. Rear: 8-18Reference
Length199 cmReference
Width102 cmReference
Height (steering wheel)122 cmReference
2WD Weight508 kgReference
4WD Weight537 kgReference
Ground clearance26 cmReference
Electrical
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Battery AH45Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
