Tractor · 1978Unverified

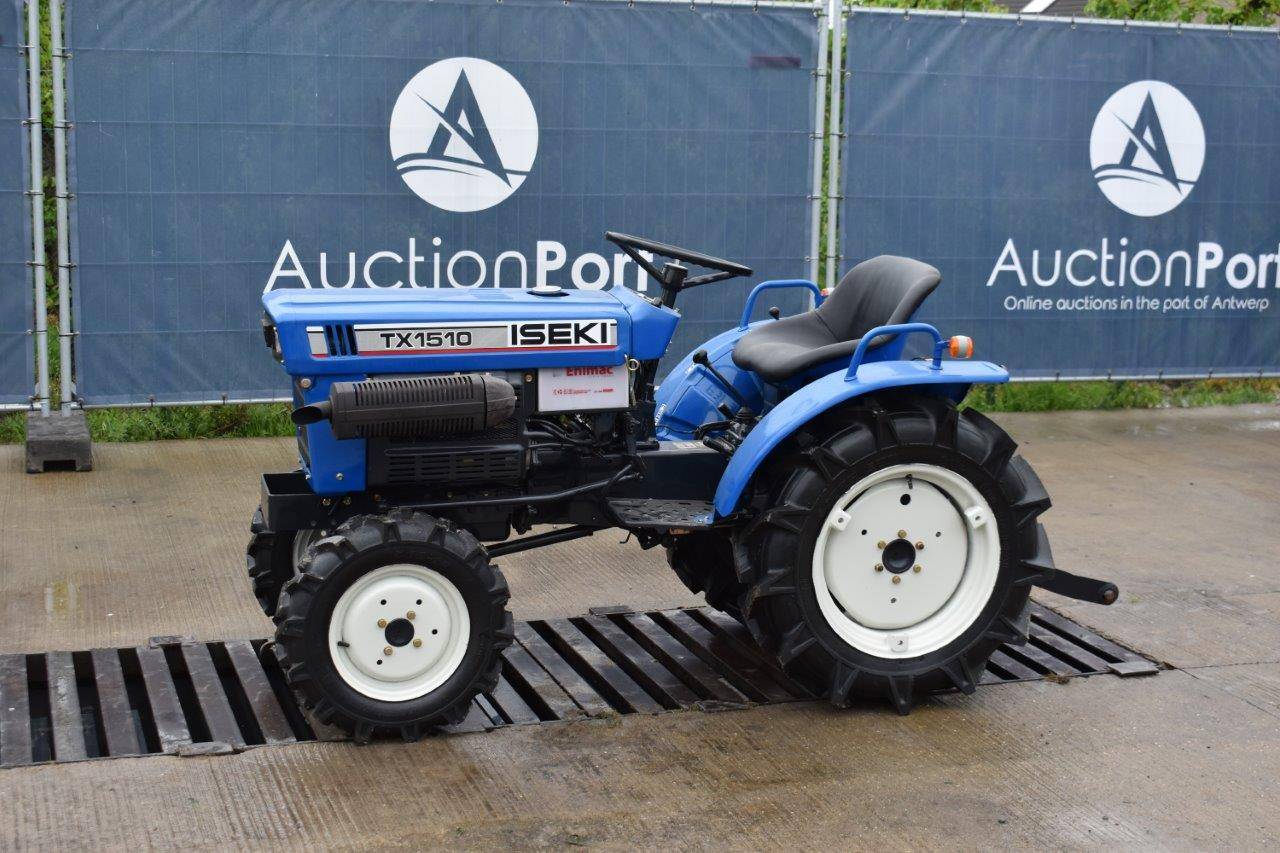

Iseki TX1510
Iseki TX1510 — Compact Utility tractor · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
1168 to 1213 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TX1510F4WDReference
Engine
Mitsubishi 0.8L 3-cyl dieselReference
Fuel tank11.7 LReference
Engine10.9 kWReference
Mitsubishi K3BReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke68 x 78 mmReference
Power10.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM454@2600Reference
Engine RPM724@2600Reference
Engine RPM1185@2600Reference
Dimensions
Wheelbase128 cmReference
Weight1168 to 1213 poundsReference
Front tire4.00-12Reference
2WD Rear tire8-18Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8-18Reference
4WD Standard tires (ag)Front: 5.00-12. Rear: 8-18Reference
2WD Length198 cmReference
4WD Length199 cmReference
Width112 cmReference
Height169 cmReference
2WD Weight529 kgReference
4WD Weight550 kgReference
2WD Ground clearance35 cmReference
4WD Ground clearance24 cmReference
2WD Front tread70 cmReference
4WD Front tread76 cmReference
Rear tread77 to 88 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
