Tractor · 1957Unverified
Lanz Alldog A1806
Lanz Alldog A1806 · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
1520 kg
Hover a source tag to verify
Overview
ManufacturerLanzReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Total built777Reference

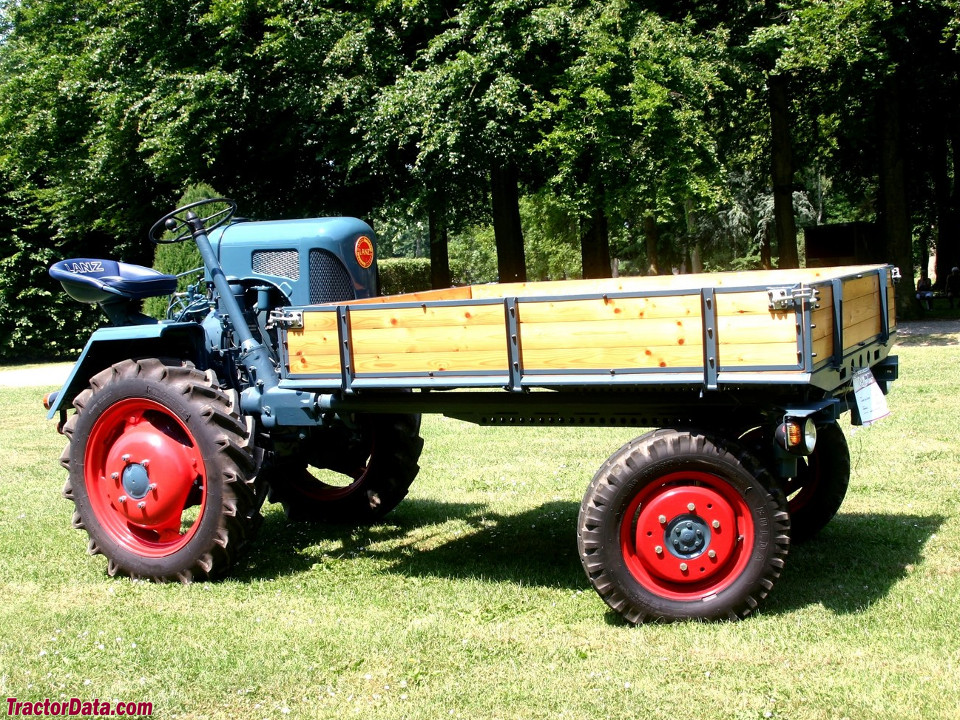

The Lanz Alldog is a tool carrier with a front-mounted cargo box.Reference
Two-wheel driveReference
Open operator station.Reference
Engine
MWM 1.3L 2-cyl dieselReference
Engine11.9 kWReference
MWMReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke85 x 110 mmReference
Power11.9 kWReference
Rated RPM2000Reference
Transmission
6-speedReference
Gears6 forward and 1 reverseReference
Dimensions
Weight1520 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
