Tractor · 1938Unverified

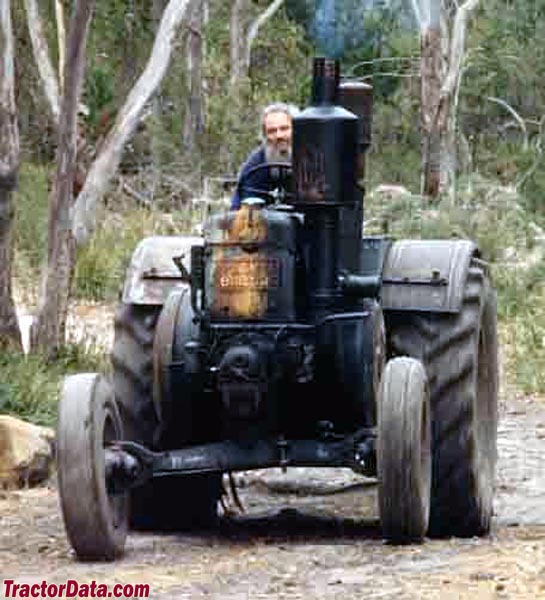

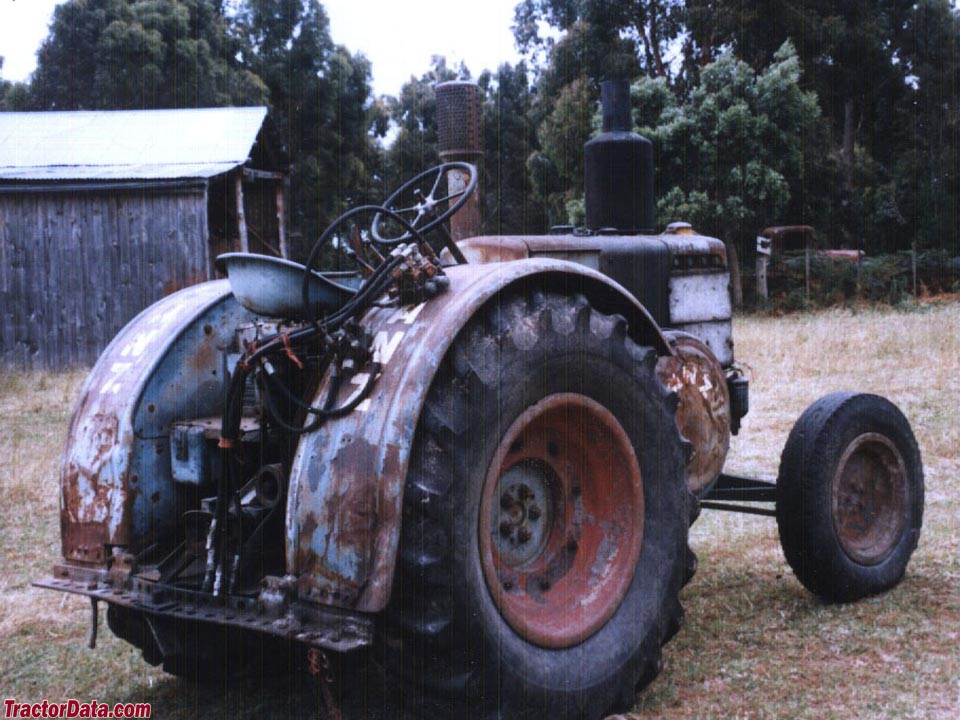

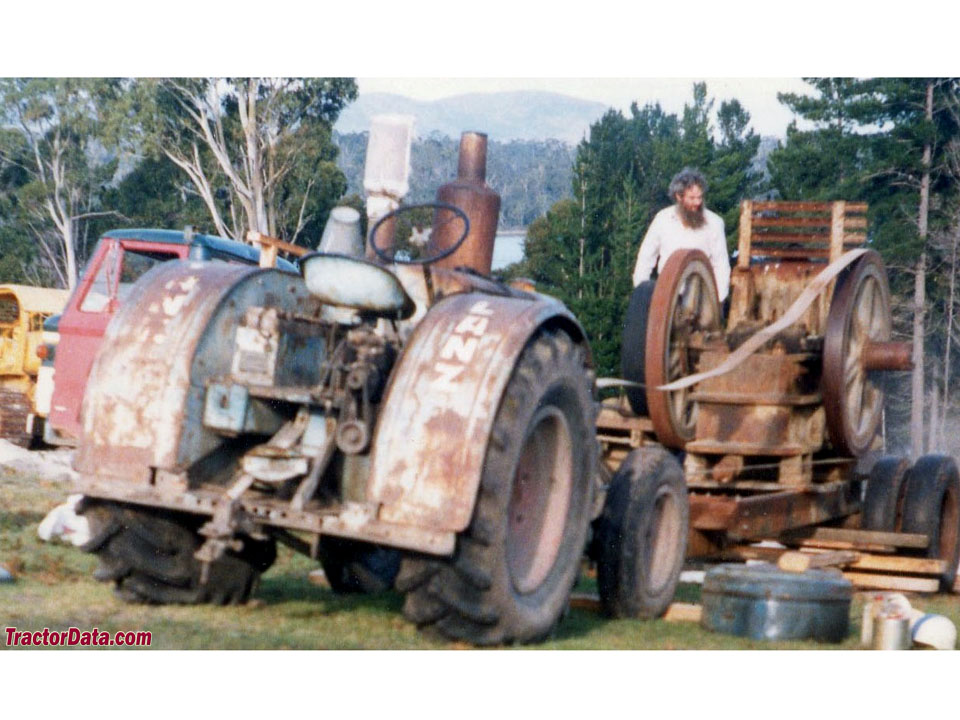

Lanz Bulldog D1506
Lanz Bulldog D1506 · 54 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Hover a source tag to verify
Overview
ManufacturerLanzReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Drive2WDReference
Open operator station.Reference
Variants
D15003-speedReference
D15066-speedReference
Engine
Lanz 10.3L 1-cyl dieselReference
Engine40.2 kWReference
LanzReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement10.3 LReference
Bore/Stroke225 x 260 mmReference
Power40.2 kWReference
Rated RPM750Reference
Transmission
6-speedReference
Gears6 forwardReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
