Tractor · 1951Unverified

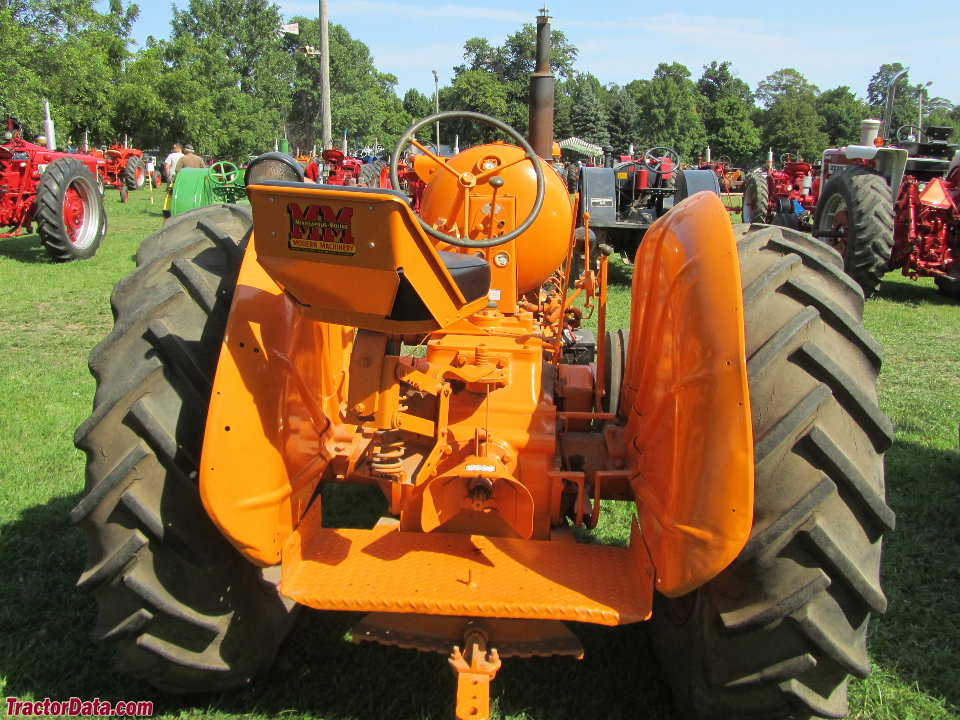

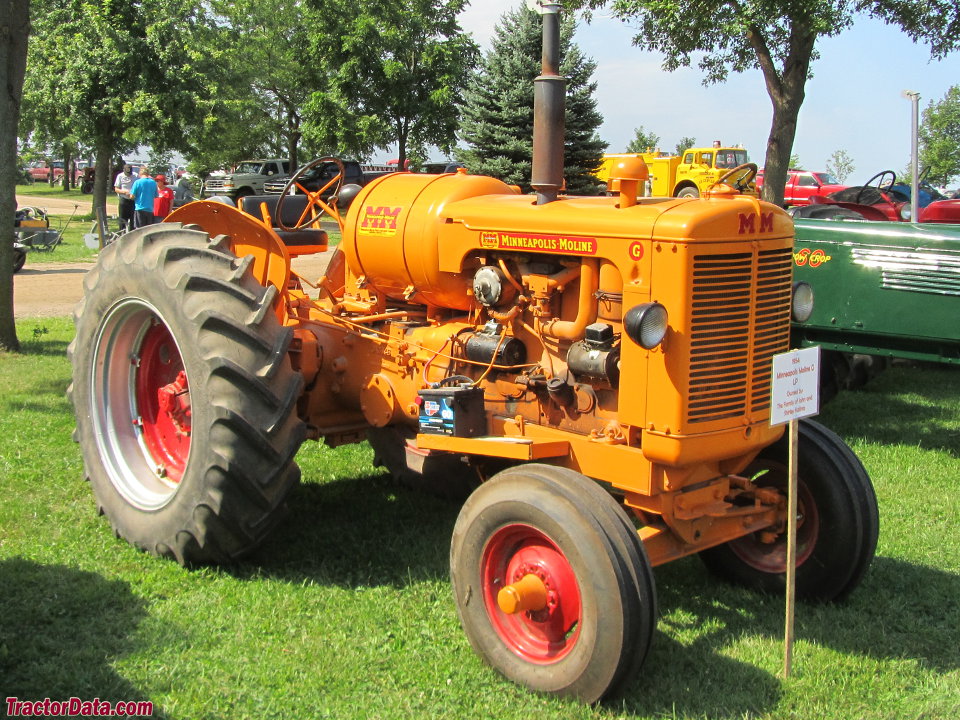

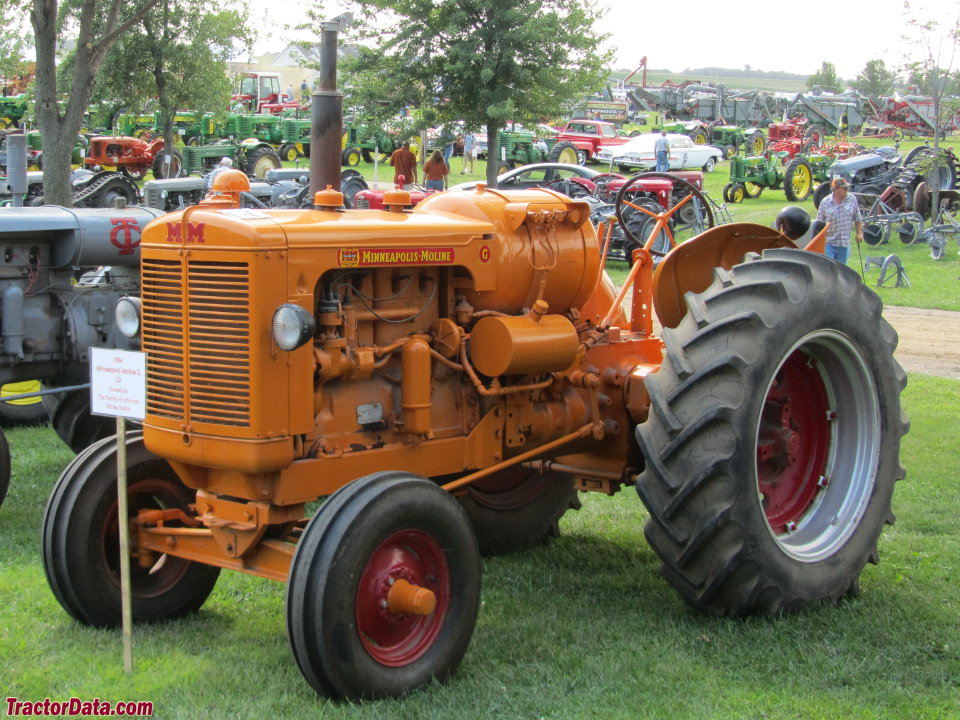

Minneapolis-Moline GTC
Minneapolis-Moline GTC — Standard-tread tractor. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Hover a source tag to verify
Overview
ManufacturerMinneapolis-MolineReference
Standard-tread tractorReference
Built in Minneapolis, Minnesota, USAReference
Two-wheel driveReference
SteeringmanualReference
Open operator station.Reference
Variants
GTBgasolineReference
GTCLP-gasReference
Engine
Minneapolis-Moline 5.6L 4-cyl LP gasReference
Minneapolis-Moline 340-4Reference
LP gasReference
4-cylinderReference
liquid-cooledReference
Displacement5.6 LReference
Bore/Stroke108 x 152 mmReference
Rated RPM1100Reference
Starter volts6Reference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase209 cmReference
Front tire7.50-18Reference
Rear tire14-34Reference
Ag front7.50-18Reference
Ag rear14-34Reference
Length338 cmReference
Height180 cmReference
Front tread135 cmReference
Rear tread157 cmReference
GTC Serial Number Location
Right side of tractor frame, just ahead of operator platform.Reference
GTC Serial Numbers
195104700001Reference
195204700019Reference
195304700677Reference
Final04701101Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter40 cmReference
Width17 cmReference
RPM627Reference
Speed801.62 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
