Tractor · 1979Unverified

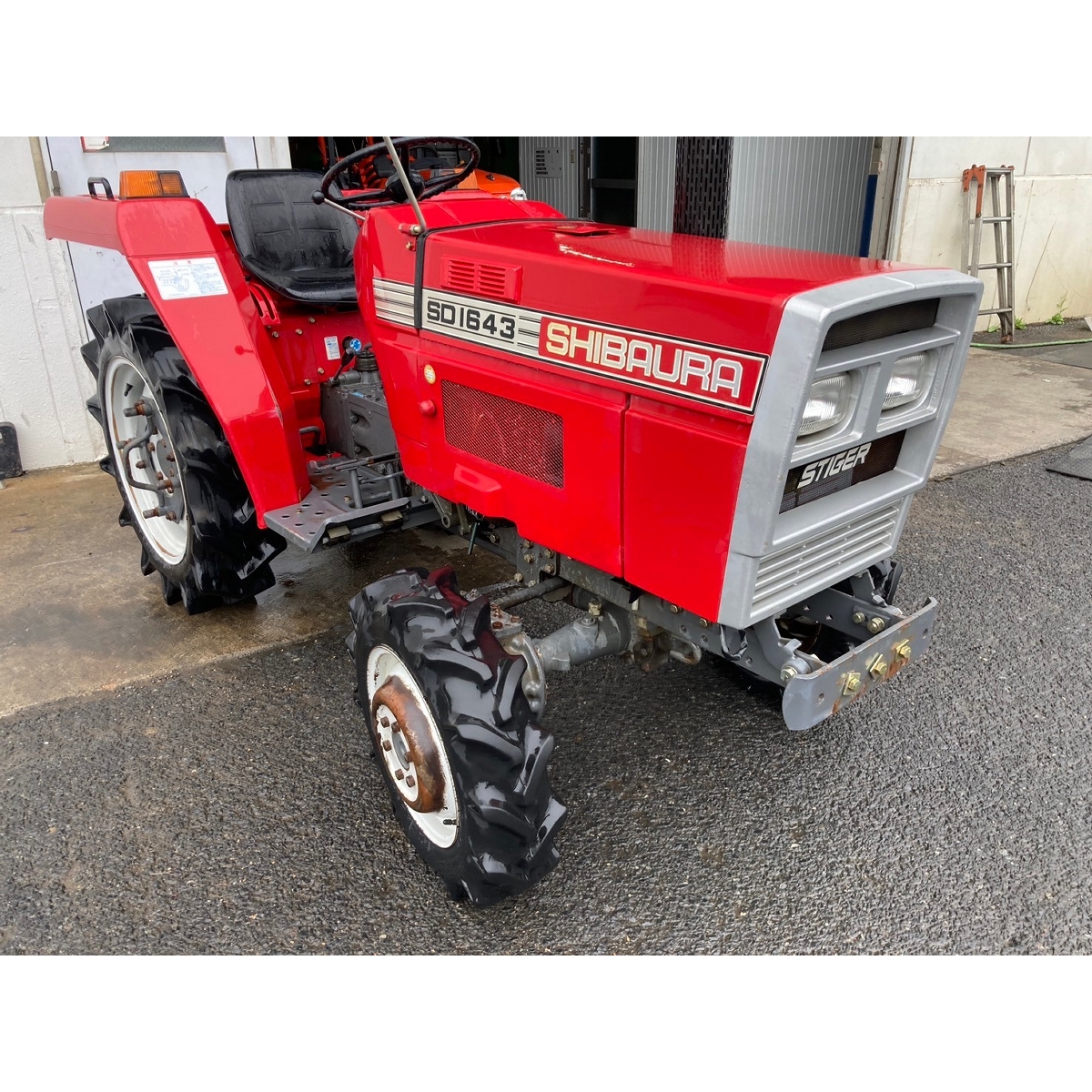

Shibaura SD1643
Shibaura SD1643 — SD3 Series · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Compact Utility tractorReference
Four-wheel driveReference
Open operator station.Reference
Variants
16032WDReference
16434WDReference
Engine
Shibaura 3-cyl dieselReference
Engine11.9 kWReference
Shibaura H763Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Power11.9 kWReference
Rated RPM2600Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Three gears, plus reverse, in four ranges.Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
