Tractor · 1969Unverified

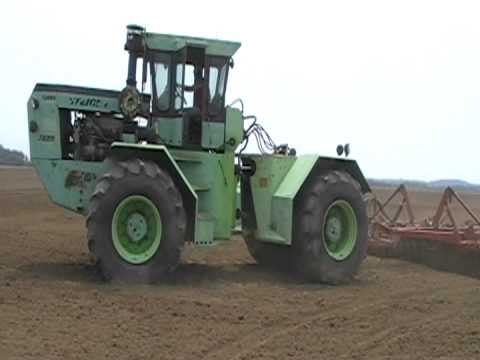

Steiger 800 Tiger
Steiger 800 Tiger — Barn Series · 300 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
300 hp
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Red Lake Falls, Minnesota, USAReference
Four-wheel driveReference
Articulated power steeringReference
Engine
Cummins 14.8L 8-cyl dieselReference
Engine223.7 kWReference
Cummins V903Reference
dieselReference
8-cylinderReference
liquid-cooledReference
Displacement14.8 LReference
Bore/Stroke140 x 121 mmReference
Power223.7 kWReference
Transmission
10-speedReference
TransmissionSpicerReference
Gears10 forward and 2 reverseReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
