Tractor · 1974Unverified

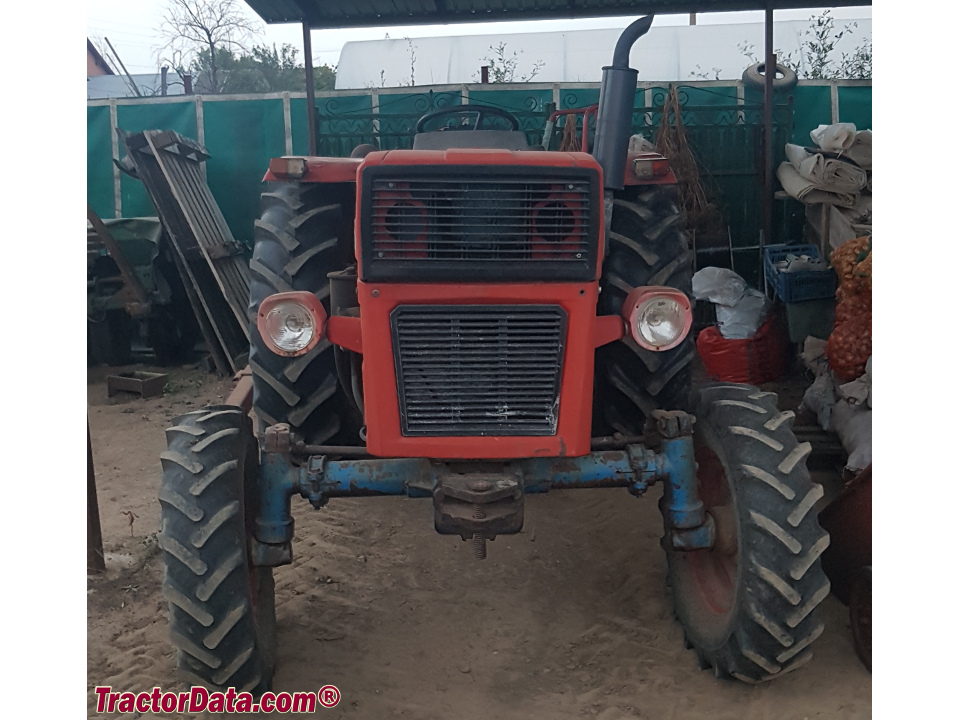

UTB/Universal 500
UTB/Universal 500. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
1840 kg
Hover a source tag to verify
Overview
ManufacturerUTB/UniversalReference
Built in Brasov, RomaniaReference
Engine
UTB 2.3L 3-cyl dieselReference
Fuel tank54.1 LReference
UTBReference
dieselReference
3-cylinderReference
Displacement2.3 LReference
Bore/Stroke95 x 110 mmReference
Rated RPM2600Reference
Transmission
8-speedReference
12-speedReference
Gears8 forward and 2 reverseReference
Gears12 forward and 3 reverseReference
PTO & Hydraulics
Pump flow22.0 lpmReference
Rear lift1200 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase195 cmReference
Weight1840 kgReference
Front tire6.00-16Reference
Rear tire12.4-28Reference
Ag front6.00-16Reference
Ag rear12.4-28Reference
Length313 cmReference
Height148 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
