Tractor · 1984Unverified

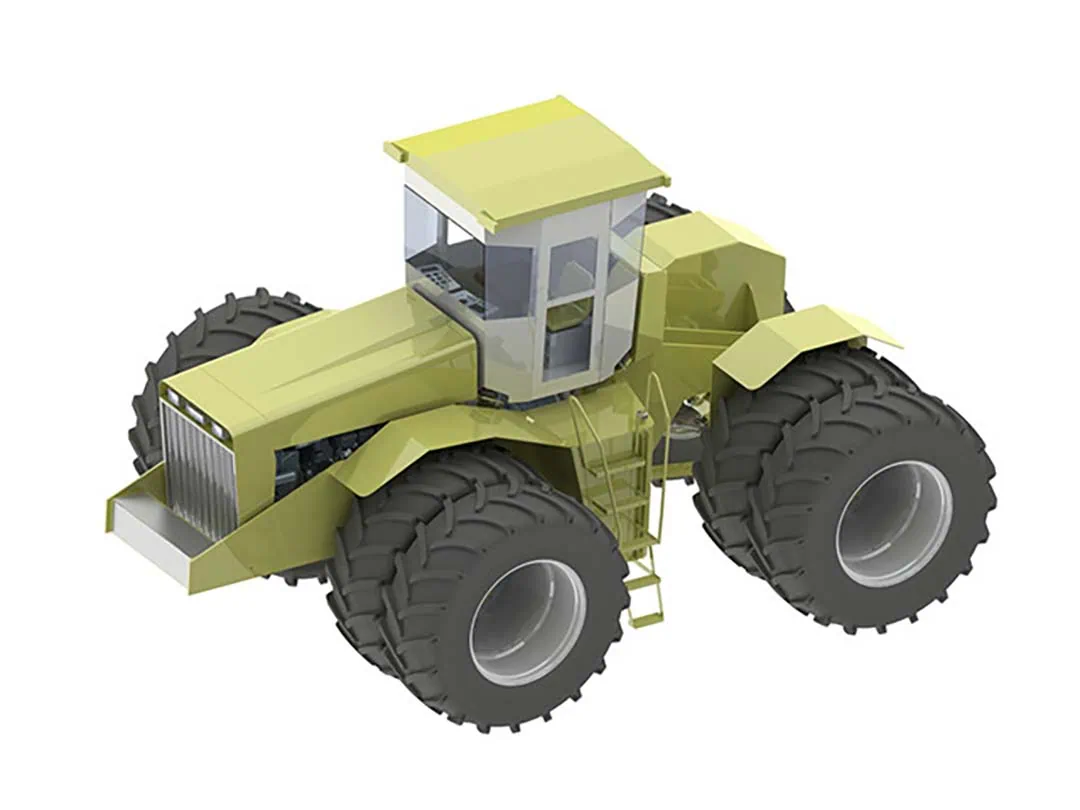

Acremaster 422A
Acremaster 422A — 400 Series · 240 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
240 hp
Weight
9599 kg
Hover a source tag to verify
Overview
ManufacturerAcremasterReference
Four-wheel Drive (4WD) tractorReference
Built in Merredin, AustraliaReference
Four-wheel driveReference
Articulated power steeringReference
Cab standard with air-conditioning.Reference
Engine
Mercedes-Benz 14.6L 8-cyl dieselReference
Fuel tank1015.9 LReference
Engine179.0 kWReference
Mercedes-Benz OM422AReference
turbocharged dieselReference
8-cylinderReference
liquid-cooled V8Reference
Displacement14.6 LReference
Bore/Stroke128 x 142 mmReference
Power179.0 kWReference
Rated RPM2100Reference
Starter typeelectricReference
Transmission
9-speed gearReference
TransmissionAcremasterReference
TypegearReference
Gears9 forward and 3 reverseReference
Dimensions
Weight9599 kgReference
Front tire23.1x30Reference
Rear tire23.1x30Reference
Ag front23.1x30Reference
Ag rear23.1x30Reference
Length580 cmReference
Width382 cmReference
Height (exhaust)329 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
