Tractor · 1928Unverified

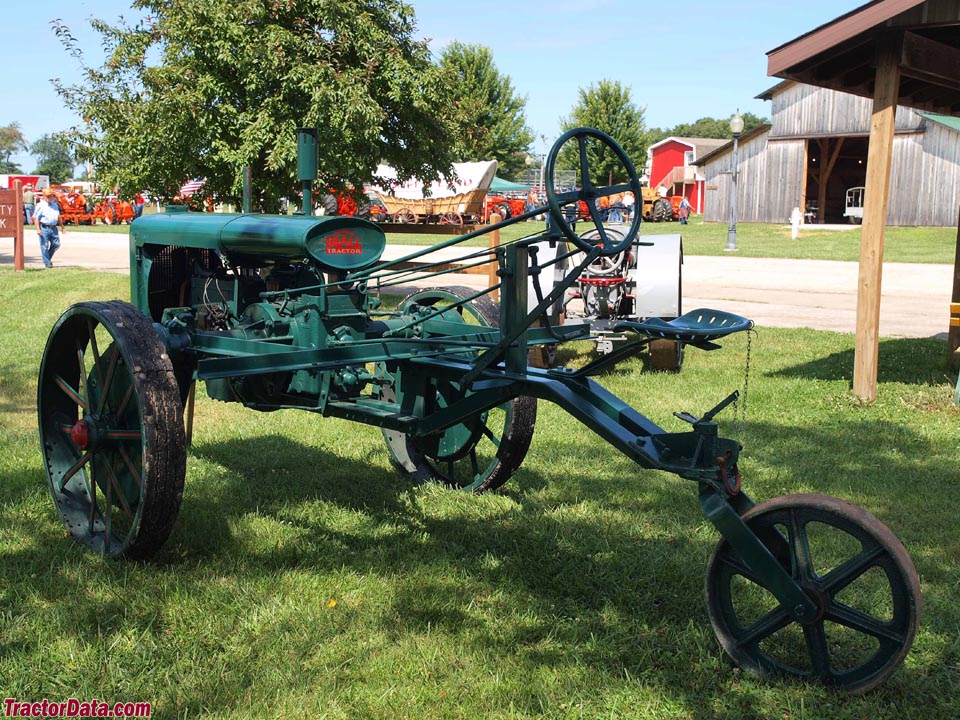

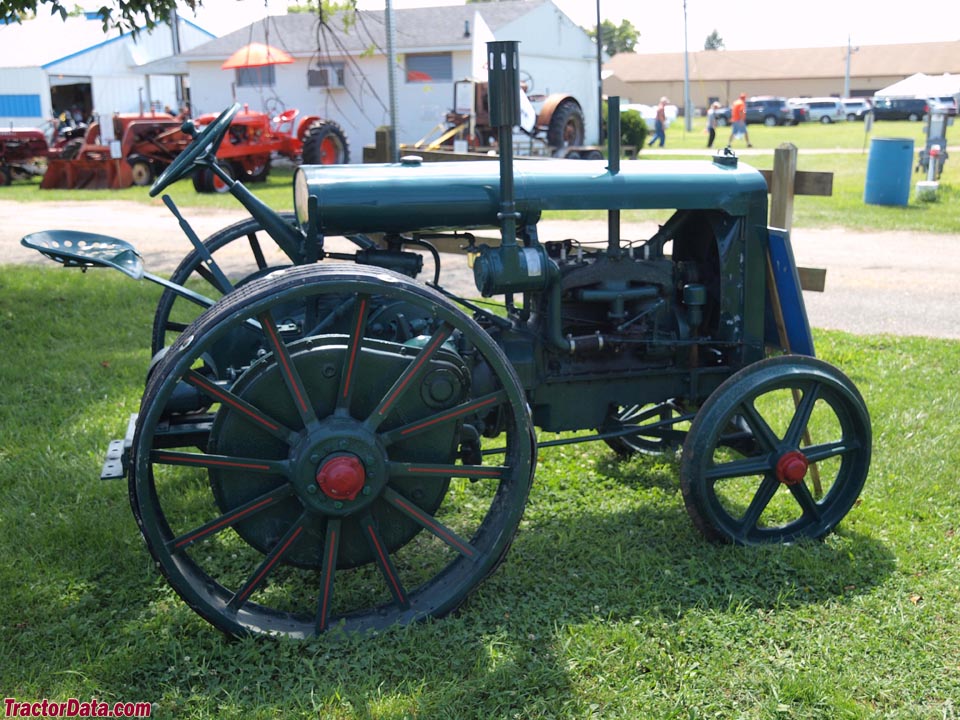

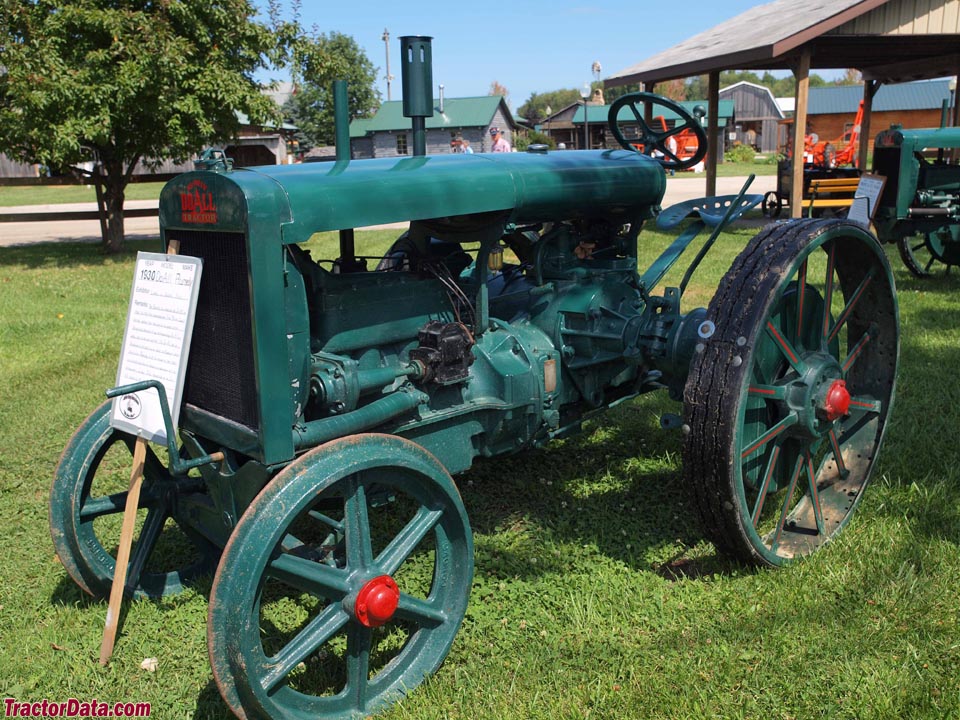

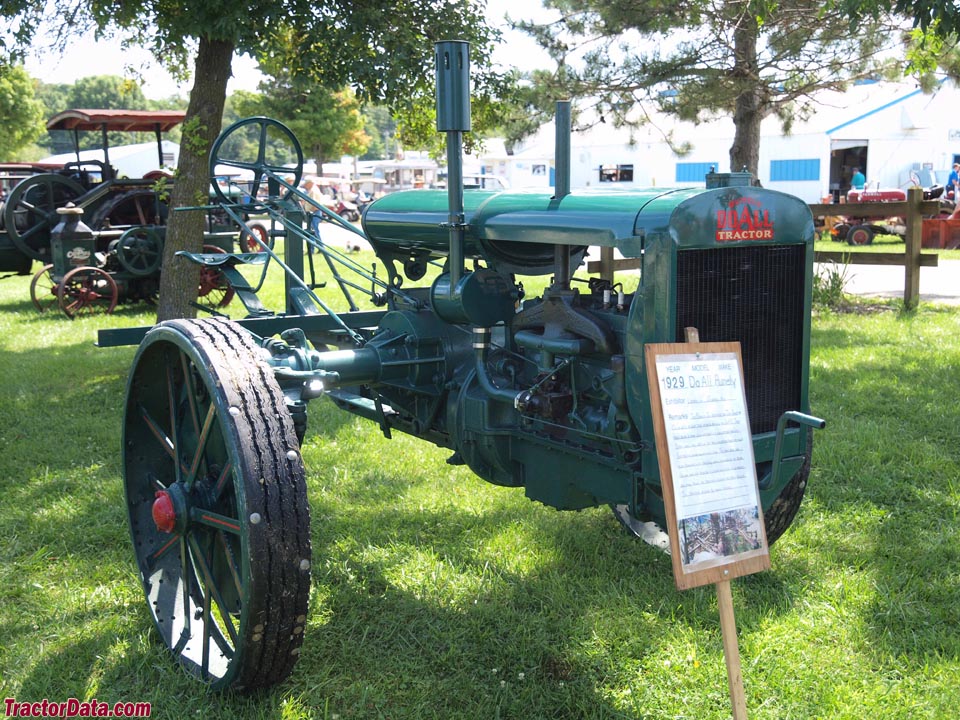

Advance-Rumely DoAll
Advance-Rumely DoAll · 10 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
10 hp
Max power
12.2 kW
Weight
1679 kg
Hover a source tag to verify
Overview
ManufacturerAdvance-RumelyReference
Built in La Porte, IndianaReference
Total built3,192Reference
Two-wheel driveReference
SteeringmanualReference
Open operator station.Reference
Engine
Waukesha 2.8L 4-cyl gasolineReference
Fuel tank56.8 LReference
Drawbar (claimed)7.5 kWReference
Belt (claimed)14.9 kWReference
Drawbar (tested)12.2 kWReference
Belt (tested)16.1 kWReference
WaukeshaReference
gasolineReference
4-cylinderReference
liquid-cooled vertical L-headReference
Displacement2.8 LReference
Bore/Stroke89 x 114 mmReference
Rated RPM1400Reference
Coolant capacity20.8 LReference
Belt power (max)16.1 kWReference
Max power12.2 kWReference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Dimensions
Weight1679 kgReference
Front tire26x5Reference
Rear tire42x7Reference
Ag front26x5 (steel)Reference
Ag rear42x7 (steel)Reference
Length279 cmReference
Width208 cmReference
Height162 cmReference
DoAll Serial Numbers
1928501Reference
1929701Reference
19302116Reference
19313514Reference
FAQ: How to read a serial number table.Reference
Test results
Gasoline 2-speed 2WDOctober 29 - November 24, 1928Link: Nebraska Tractor Test 154 fileReference
Belt fuel use (max)9.1 l/hourReference
Drawbar performanceReference
Max pull912 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
