Tractor · 1910Unverified

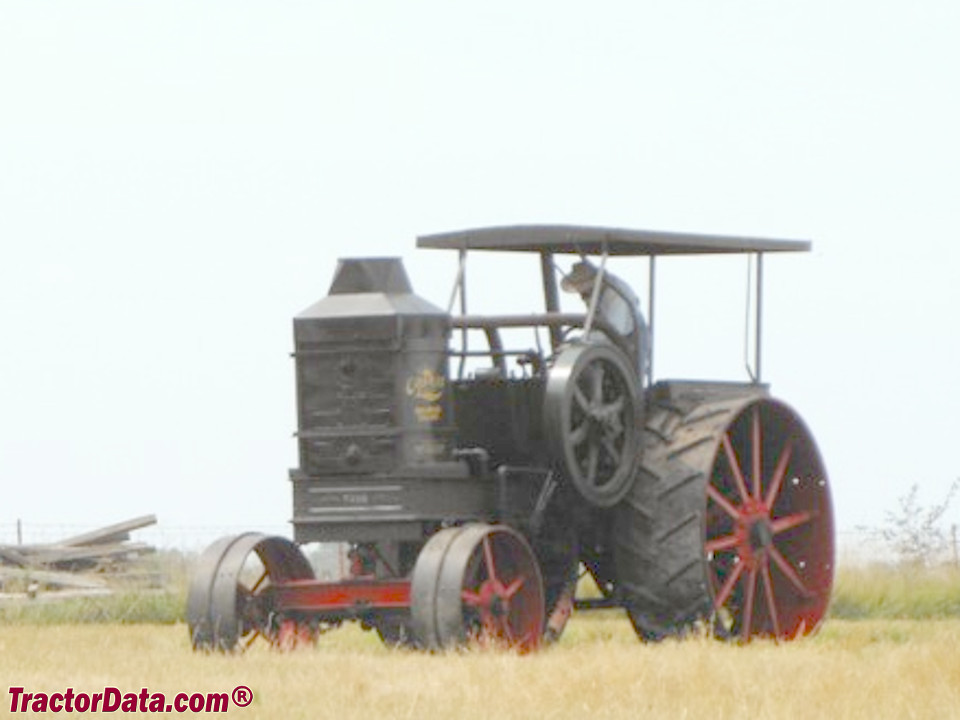

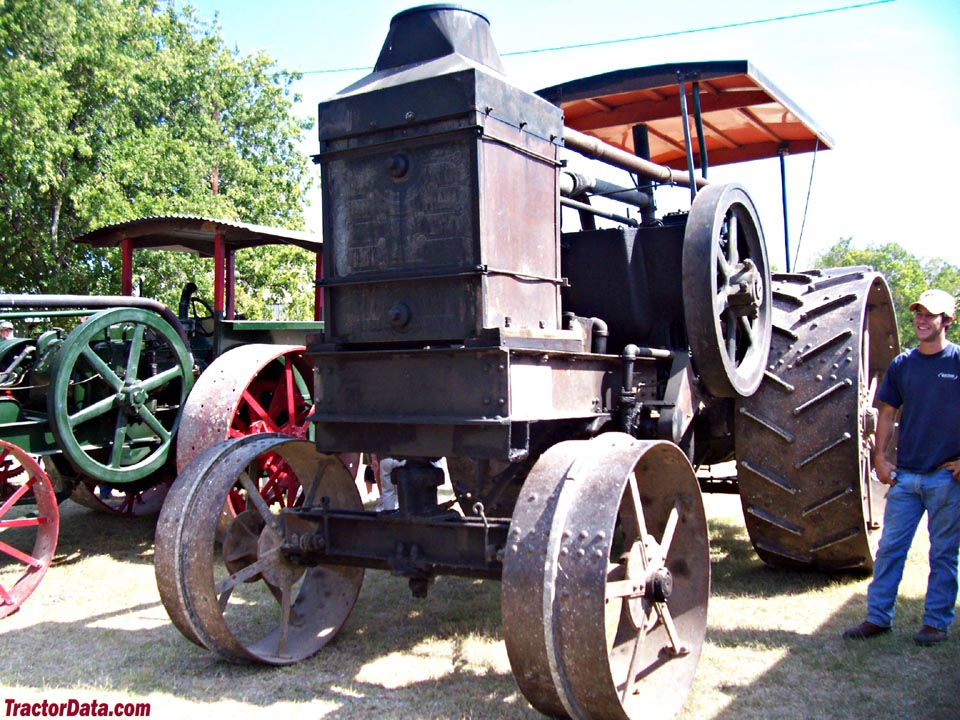

Advance-Rumely OilPull E 30/60
Advance-Rumely OilPull E 30/60 — Standard-tread tractor · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Max power
56.4 kW
Weight
11929 kg
Hover a source tag to verify
Overview
ManufacturerAdvance-RumelyReference
Standard-tread tractorReference
Built in La Porte, IndianaReference
Total built8,224Reference
Two-wheel driveReference
Manual steeringReference
Open operator station with canopy.Reference
Engine
Rumley 30.9L 2-cyl keroseneReference
Fuel tank264.9 LReference
Aux. fuel11.4 LReference
Drawbar (claimed)22.4 kWReference
Belt (claimed)44.7 kWReference
Drawbar (tested)37.2 kWReference
RumleyReference
keroseneReference
2-cylinderReference
liquid-cooled horizontalReference
Displacement30.9 LReference
Bore/Stroke254 x 305 mmReference
Coolant capacity265.0 LReference
Max power56.4 kWReference
Power at rated engine speed44.9 kWReference
Max power37.2 kWReference
Transmission
1-speed gearReference
TypegearReference
Gears1 forward and reverseReference
PTO & Hydraulics
PTO (tested)56.4 kWReference
Dimensions
Weight11929 kgReference
Front tire44x16Reference
Rear tire80x30Reference
Ag front44x16 steelReference
Ag rear80x30 steelReference
Length579 cmReference
Width294 cmReference
Height335 cmReference
OilPull E 30/60 Serial Numbers
1910101Reference
1911237Reference
1912747Reference
19131679Reference
1914NoneReference
19151819Reference
19162019Reference
19172997Reference
19188725Reference
191911500Reference
19202252Reference
19212352Reference
19222404Reference
19232454Reference
FAQ: How to read a serial number table.Reference
Test results
Kerosene 1-speed 2WDApril 23 - May 11, 1920Link: Nebraska Tractor Test 8 fileReference
PTO performanceReference
Fuel use29.1 l/hourReference
Drawbar performanceReference
Gear 1 used for power test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
