Tractor · 1917Unverified

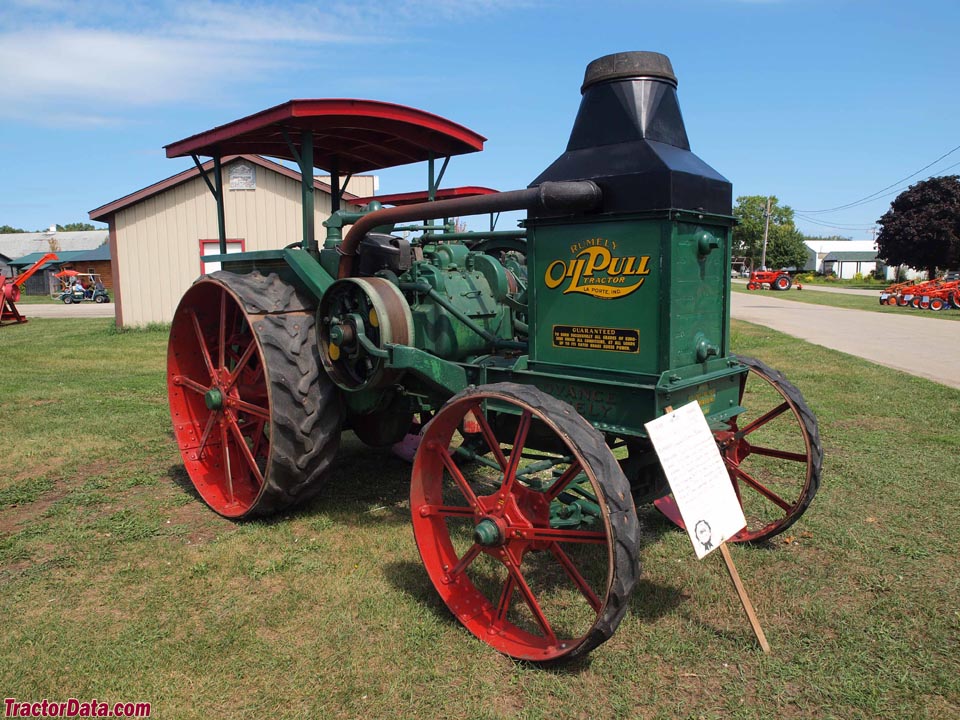

Advance-Rumely OilPull H 16/30
Advance-Rumely OilPull H 16/30 — Standard-tread tractor · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Max power
17.1 kW
Weight
4311 kg
Hover a source tag to verify
Overview
ManufacturerAdvance-RumelyReference
Standard-tread tractorReference
Built in La Porte, Indiana, USAReference
Total built13,553Reference
Two-wheel driveReference
SteeringmanualReference
Engine
Rumley 10.7L 2-cyl keroseneReference
Fuel tank128.7 LReference
Aux. fuel3.8 LReference
Drawbar (claimed)11.9 kWReference
Belt (claimed)22.4 kWReference
Drawbar (tested)17.1 kWReference
Belt (tested)25.0 kWReference
RumleyReference
keroseneReference
2-cylinderReference
liquid-cooled horizontal opposedReference
Displacement10.7 LReference
Bore/Stroke178 x 216 mmReference
Rated RPM530Reference
Coolant capacity56.8 LReference
Belt power (max)25.0 kWReference
Max power17.1 kWReference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Dimensions
Weight4311 kgReference
Front tire40x7Reference
Rear tire56x18Reference
Ag front40x7 (steel)Reference
Ag rear56x18 (steel)Reference
Length401 cmReference
Width203 cmReference
Height251 cmReference
OilPull H 16/30 Serial Numbers
19178627Reference
19189178Reference
191910711Reference
1920H3751Reference
1921H4393Reference
1922H7396Reference
1923H8646Reference
1924H9046Reference
FAQ: How to read a serial number table.Reference
Test results
Kerosene 2WDApril 24 - May 21, 1920Link: Nebraska Tractor Test 9 fileReference
Belt fuel use (max)22.7 l/hourReference
Drawbar performanceReference
Max pull2120 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
