Tractor · 1924Unverified

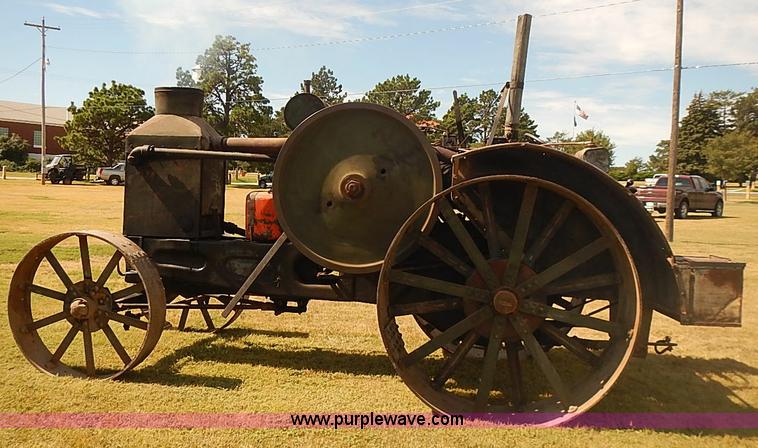

Advance-Rumely OilPull S 30/60
Advance-Rumely OilPull S 30/60 — Standard-tread tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Max power
30.3 kW
Weight
7938 kg
Hover a source tag to verify
Overview
ManufacturerAdvance-RumelyReference
Standard-tread tractorReference
Built in La Porte, Indiana, USAReference
Total built514Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Rumley 22.9L 2-cyl keroseneReference
Fuel tank198.7 LReference
Aux. fuel7.6 LReference
Drawbar (claimed)22.4 kWReference
Belt (claimed)44.7 kWReference
Drawbar (tested)30.3 kWReference
Belt (tested)52.3 kWReference
RumleyReference
keroseneReference
2-cylinderReference
liquid-cooled horizontal opposedReference
Displacement22.9 LReference
Bore/Stroke229 x 279 mmReference
Rated RPM470Reference
Coolant capacity143.9 LReference
Belt power (max)52.3 kWReference
Max power30.3 kWReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Dimensions
Weight7938 kgReference
Front tire44x10Reference
Rear tire64x24Reference
Ag front44x10 steelReference
Ag rear64x24 steelReference
Length485 cmReference
Width254 cmReference
Height290 cmReference
OilPull S 30/60 Serial Numbers
19241Reference
19255Reference
192635Reference
1927235Reference
1928435Reference
FAQ: How to read a serial number table.Reference
Test results
Kerosene 3-speed 2WDSeptember 6 - 13, 1924Link: Nebraska Tractor Test 103 fileReference
Drawbar performanceReference
Max pull3787 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
