Tractor · 1995Unverified

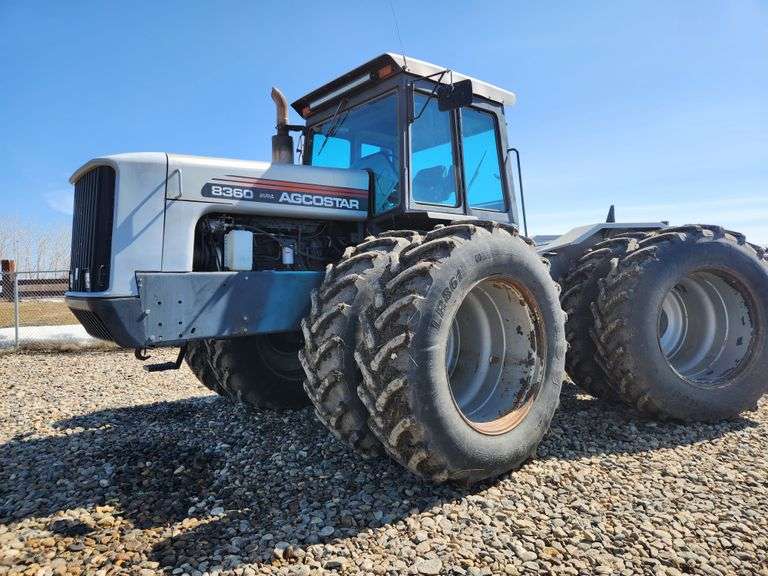

AGCO AGCOSTAR 8360
AGCO AGCOSTAR 8360 — Four-wheel Drive (4WD) tractor · 360 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
360 hp
Max power
216.7 kW
Weight
12836 kg
Hover a source tag to verify
Overview
ManufacturerAGCOReference
Four-wheel Drive (4WD) tractorReference
Built in Coldwater, Ohio, USAReference
After purchasing McConnell in 1994, AGCO turned the McConnell 900 into the AGCOSTAR 8360. Three paint options were available depending on whether the customer wanted Massey red, Allis orange, or White silver.Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic dry disc brakesReference
Cab standard with air conditioning.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Fuel tank870.6 LReference
Engine268.5 kWReference
Drawbar (tested)216.7 kWReference
Cummins N14Reference
turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power268.5 kWReference
Fuel systemdirect injectionReference
Air cleanerdual paper elements with aspiratorReference
Pre-heatingcoolant heaterReference
Compression16.5:1Reference
Rated RPM2100Reference
Idle RPM825-2400Reference
Torque1647.5 NmReference
Torque RPM1400Reference
Starter volts12Reference
Max power216.7 kWReference
Transmission
18-speed partially synchronizedReference
TransmissionEaton FullerReference
Typepartially synchronizedReference
Gears18 forward and 2 reverseReference
Clutch393.7mm cerametallic discReference
PTO & Hydraulics
Typeclosed centerReference
Pressure172.4 barReference
Valves4 or 5Reference
Pump flow132.5 lpmReference
SCV flow102.2 lpmReference
Dimensions
Wheelbase348 cmReference
Weight12836 kgReference
Front tire20.8R42Reference
Rear tire20.8R42Reference
Ag front20.8R42Reference
Ag rear20.8R42Reference
Ag front24.5-32Reference
Ag front30.5L-32Reference
Ag front20.8R38Reference
Ag rear24.5-32Reference
Ag rear30.5L-32Reference
Ag rear20.8R38Reference
Length691 cmReference
Width388 cmReference
Ground clearance52 cmReference
Clearance (drawbar)58 cmReference
Shipping12836 kgReference
Ballasted15513 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps130Reference
Batteries3Reference
Battery CCA700Reference
Battery volts12Reference
Capacities
Max capacity17010 kgReference
AGCO 8360 Height
Hood240 cmReference
Cab338 cmReference
Exhaust352 cmReference
Test results
Diesel 18-speed 4WDOctober 7 - 17, 1996Link: OCED Tractor Test 1720 fileReference
Drawbar performanceReference
Fuel use71.5 l/hourReference
Gear 5L used for power test.Reference
Max pull14731 kgReference
Gear 2L used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
