Tractor · 1991Unverified

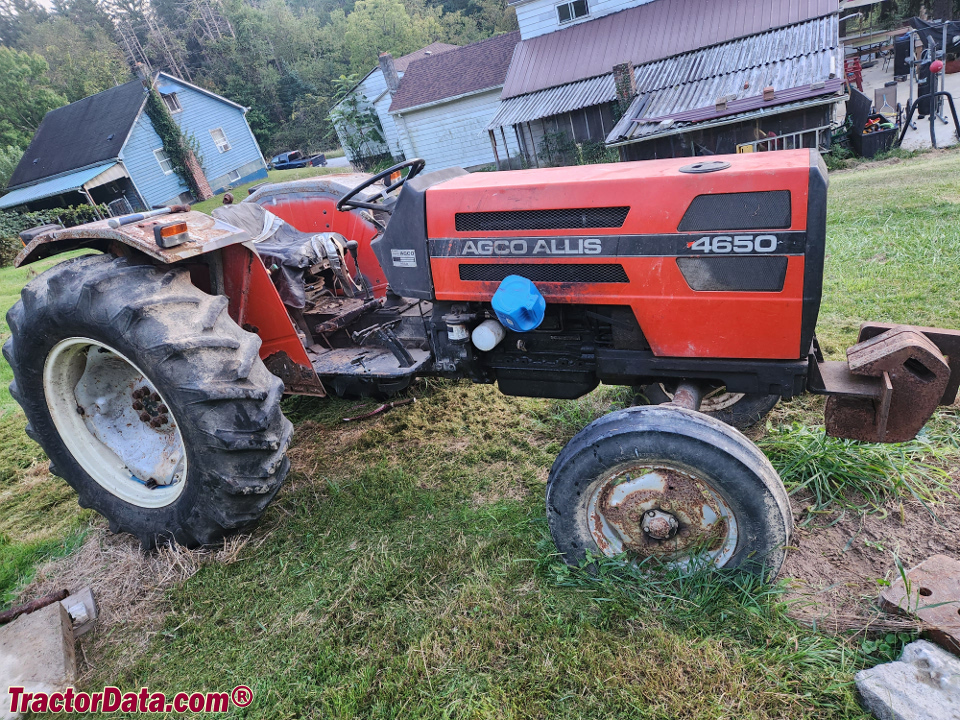

AGCO Allis 4650
AGCO Allis 4650 — Utility tractor · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Max power
27.8 kW
Weight
4475 to 5071 pounds
Hover a source tag to verify
Overview
DistributorAGCO Allis (a part of AGCO)Reference
ManufacturerSAMEReference
Utility tractorReference
Built in ItalyReference
Original price was $18,800 in 1997Reference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Four-post ROPS.Reference
Variants
Solar 50similar SAME modelReference
Engine
SLH 2.7L 3-cyl dieselReference
SLH 3.1L 3-cyl dieselReference
Engine37.3 kWReference
Drawbar (tested)27.8 kWReference
SLH 983 LReference
dieselReference
3-cylinderReference
air-cooled inlineReference
The 983 L was the original engine, but appears to have been replaced by 1992.Reference
Displacement2.7 LReference
Bore/Stroke98 x 120 mmReference
Power37.3 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression17:1Reference
Rated RPM2200Reference
Idle RPM675-2372Reference
StarterelectricReference
Starter volts12Reference
Oil capacity7.5 LReference
SLH 1053 PReference
The AGCO parts manual identified the use of the 1053 as a detuned 4660 engine.Reference
Displacement3.1 LReference
Bore/Stroke105 x 120 mmReference
Idle RPM675-2370Reference
Oil capacity9.5 LReference
Power at rated engine speed30.1 kWReference
Max power27.8 kWReference
Transmission
12-speed synchromeshReference
16-speed creeperReference
TypesynchromeshReference
Gears12 forward and 3 reverseReference
Clutch250mm dry discReference
TypecreeperReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)29.8 kWReference
PTO (tested)30.1 kWReference
Hydraulic system39.4 LReference
Typeopen centerReference
Capacity39.4 LReference
Pressure180.0 barReference
Valves1Reference
Pump flow29.9 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)2100 kgReference
Rear lift (at 24"/610mm)1199 kgReference
Rear PTOindependentReference
Clutchdry discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1938Reference
Power at rated PTO speed27.4 kWReference
Capacities
Fuel54.9 LReference
2WD Max capacity3700 kgReference
4WD Max capacity3900 kgReference
Dimensions
2WD Wheelbase211 cmReference
4WD Wheelbase209 cmReference
Weight4475 to 5071 poundsReference
Front tire6.50-16Reference
2WD Rear tire13.6R28Reference
2WD Standard tires (ag)Front: 6.50-16. Rear: 13.6R28Reference
4WD Standard tires (ag)Front: 9.6-20. Rear: 13.6R28Reference
4WD Optional tires (ag)Front: 11.2-20. Rear: 14.9R28Reference
2WD Length369 cmReference
4WD Length367 cmReference
Width172 cmReference
Height (ROPS)5969 cmReference
2WD Clearance (front axle)39 cmReference
4WD Clearance (front axle)33 cmReference
2WD Front tread124 to 165 cmReference
4WD Front tread138 to 187 cmReference
Rear tread138 to 188 cmReference
2WD Shipping2029 kgReference
4WD Shipping2300 kgReference
4650 Serial Numbers
Location:On console, right sideReference
19911001Reference
19921110Reference
19931195Reference
19941278Reference
19951446Reference
19961486Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery volts12Reference
Battery AH100Reference
Test results
2.7L diesel 12-speed 4WDApril 1987 - September 1987, Link: OCED Tractor Test 1103 fileReference
PTO performanceReference
Fuel use9.5 l/hourReference
Fuel use7.9 l/hourReference
Drawbar performanceReference
Gear 4N used for power test.Reference
Max pull1807 kgReference
Gear 2N used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
