Tractor · 1998Unverified

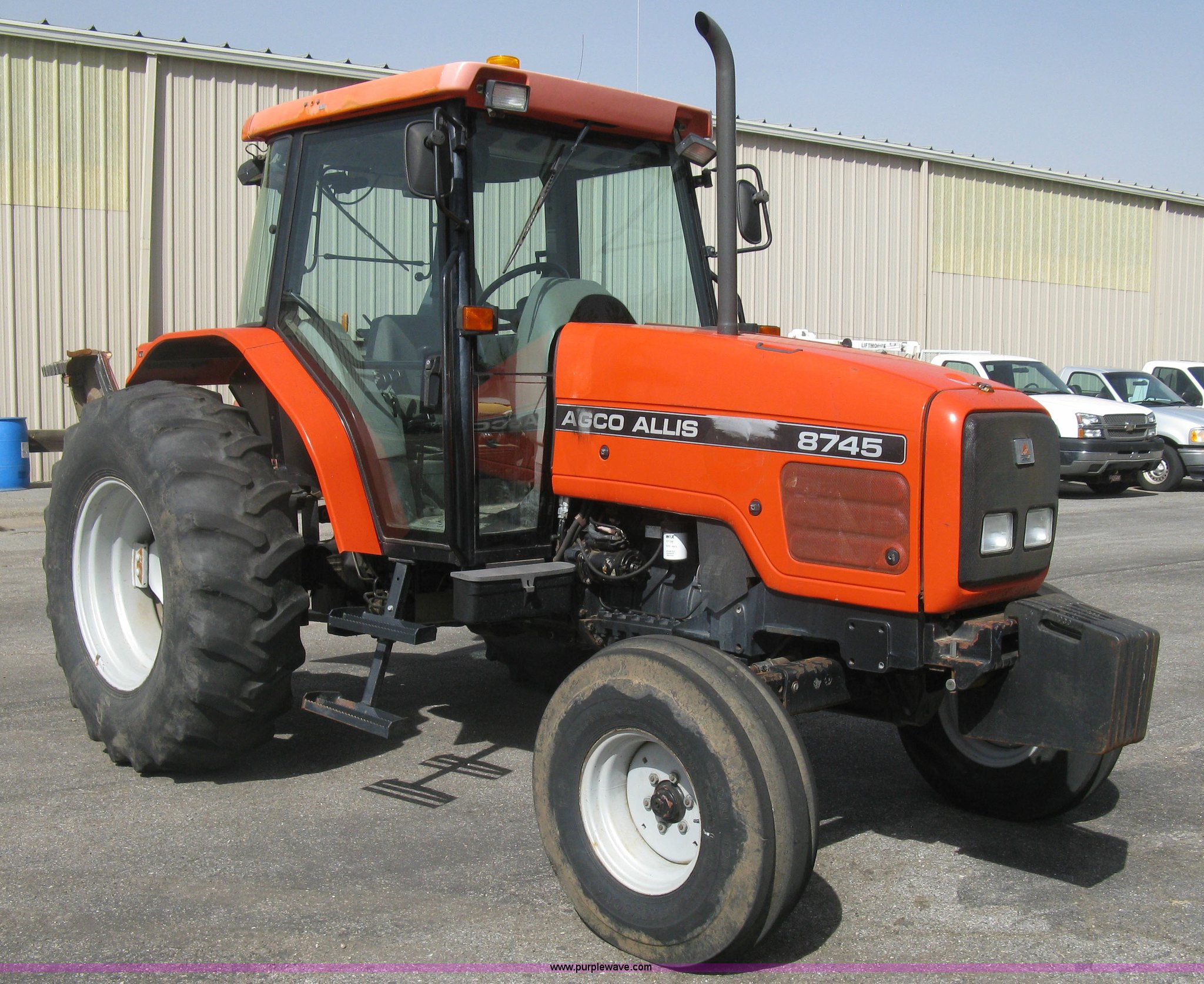

AGCO Allis 8745
AGCO Allis 8745 — Utility tractor · 71 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
71 hp
Max power
57.0 kW
Weight
6820 to 8700 pounds
Hover a source tag to verify
Overview
ManufacturerAGCO Allis (a part of AGCO)Reference
Utility tractorReference
Built in Beauvais, FranceReference
Original price$31,113 (1998 2WD gear ROPS )Reference
Original price$34,884 (1998 shuttle 2WD ROPS )Reference
Original price$39,013 (1998 gear 2WD cab )Reference
Original price$42,784 (1998 shuttle 2WD cab )Reference
Two- or four-wheel driveReference
Final drivesoutboard planetaryReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Variants
6410similar White modelReference
Engine
SisuDiesel 4.4L 4-cyl dieselReference
Cummins 3.9L 4-cyl dieselReference
ROPS Fuel tank124.9 LReference
Cab Fuel tank140.0 LReference
SisuDiesel 444YReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Compression16.5:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Cummins B3.9TReference
liquid-cooled inlineReference
Displacement3.9 LReference
Bore/Stroke102 x 120 mmReference
Max power57.0 kWReference
Power at rated engine speed52.6 kWReference
Max power56.1 kWReference
Power at rated engine speed52.5 kWReference
Transmission
12-speed partially synchronizedReference
12-speed synchronized shuttleReference
24-speed power shuttleReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
Typepower shuttleReference
Gears24 forward and reverseReference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
PTO (tested)57.0 kWReference
Typeopen centerReference
Pressure210.0 barReference
Valves2 or 3Reference
Pump flow37.9 lpmReference
Pump flow26.5 lpmReference
SCV flow37.9 lpmReference
SCV flow67.8 lpmReference
Total flow97.7 lpmReference
Steering flow29.9 lpmReference
Rear TypeIIReference
Controlelectronic draft sensingReference
Rear lift (at 24"/610mm)1859 kgReference
Rear lift (at 24"/610mm)2812 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed56.2 kWReference
Power at rated PTO speed55.8 kWReference
Dimensions
Wheelbase251 cmReference
Weight6820 to 8700 poundsReference
Front tire9.5L-15Reference
Rear tire18.4R30Reference
Ag front9.5L-15Reference
Ag front10-11-16Reference
Ag front11-00-16Reference
Ag front12.4R24Reference
Ag front13.6-24Reference
Ag front14.9-24Reference
Ag rear18.4R30Reference
Ag rear14.9-34Reference
Ag rear16.9-34Reference
Ag rear18.4-34Reference
Ag rear16.9-38Reference
Length419 cmReference
Width210 cmReference
Height (cab)261 cmReference
2WD ROPS Weight3093 kgReference
4WD Cab Weight3946 kgReference
Flange rear axleReference
2WD Front tread152 to 223 cmReference
8745 Serial Numbers
Location:Console, right sideReference
1998G01001Reference
1999H01001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
NTTL 1767: Sisu diesel 12-speed 4WDReference
NTTL 1769: Cummins diesel 12-speed 4WDReference
Sisu diesel 12-speed 4WDMarch 14 - 17, 2000Link: Nebraska Tractor Test 1767 fileReference
PTO performanceReference
Fuel use16.7 l/hourReference
Fuel use17.0 l/hourReference
Cummins diesel 12-speed 4WDMarch 16 - 17, 2000Link: Nebraska Tractor Test 1769 fileReference
Fuel use17.4 l/hourReference
Fuel use18.5 l/hourReference
Fuel use18.2 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
