Tractor · 1998Unverified

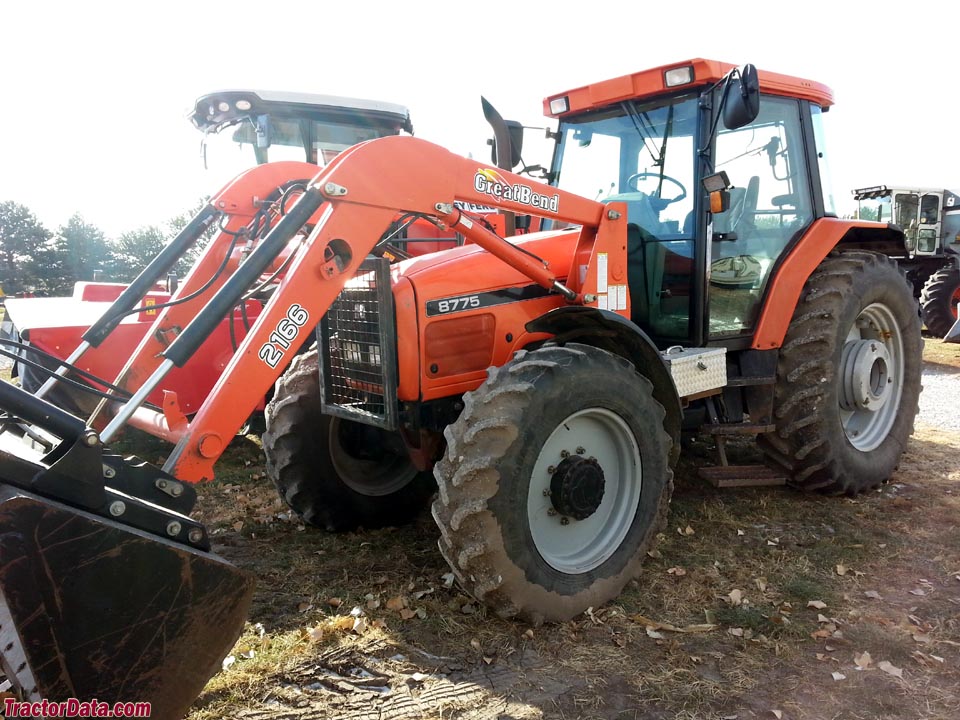

AGCO Allis 8775
AGCO Allis 8775 — Row-Crop tractor · 96 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
96 hp
Max power
76.1 kW
Weight
10000 to 11300 pounds
Hover a source tag to verify
Overview
ManufacturerAGCO Allis (a part of AGCO)Reference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price$39,519 (1998 2WD ROPS )Reference
Original price$51,587 (1998 2WD Cab )Reference
Original price$46,450 ( 4WD ROPS )Reference
Original price$58,804 ( 4WD Cab )Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning. Two-post fixed ROPS available.Reference
Variants
6710similar White modelReference
Engine
SisuDiesel 6.6L 6-cyl dieselReference
Cummins 5.9L 6-cyl dieselReference
Fuel tank159.0 LReference
SisuDiesel 666Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
Compression16.5:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Cummins B5.9TReference
Displacement5.9 LReference
Bore/Stroke102 x 120 mmReference
Max power76.1 kWReference
Power at rated engine speed71.3 kWReference
Max power74.3 kWReference
Power at rated engine speed72.0 kWReference
Transmission
32-speed four-speed power shiftReference
TransmissionQuadrashiftReference
Typefour-speed power shiftReference
Gears32 forward and reverseReference
Clutchwet discReference
PTO & Hydraulics
PTO (claimed)70.8 kWReference
PTO (tested)76.1 kWReference
Typeclosed centerReference
Pressure200.0 barReference
Valves2 or 3Reference
Pump flow104.8 lpmReference
SCV flow104.8 lpmReference
Rear TypeIIReference
Controlelectronic draft sensingReference
Rear lift (at 24"/610mm)3175 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed74.7 kWReference
Power at rated PTO speed73.2 kWReference
Dimensions
Wheelbase286 cmReference
Weight10000 to 11300 poundsReference
Front tire11.00-16Reference
Rear tire16.9R-38Reference
Ag front11.00-16Reference
Ag rear16.9R-38Reference
Length439 cmReference
Width223 cmReference
Height (cab)276 cmReference
2WD ROPS Shipping weight4536 kgReference
4WD Cab Shipping weight5125 kgReference
Flange rear axleReference
2WD Front tread152 to 223 cmReference
8775 Serial Numbers
Location:Console, right sideReference
1998G01001Reference
1999H01001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Batteries2Reference
Battery CCA590Reference
Battery volts12Reference
Test results
NTTL 1763: Cummins diesel 32-speed 4WDReference
NTTL 1779: Sisu diesel 32-speed 4WDReference
Cummins diesel 32-speed 4WDSeptember 16 - 23, 1999Link: Nebraska Tractor Test 1763 fileReference
PTO performanceReference
Fuel use23.1 l/hourReference
Fuel use22.3 l/hourReference
Sisu diesel 32-speed 4WDJune 2 - 6, 2000Link: Nebraska Tractor Test 1779 fileReference
Fuel use24.6 l/hourReference
Fuel use23.8 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
