Tractor · 1998Unverified

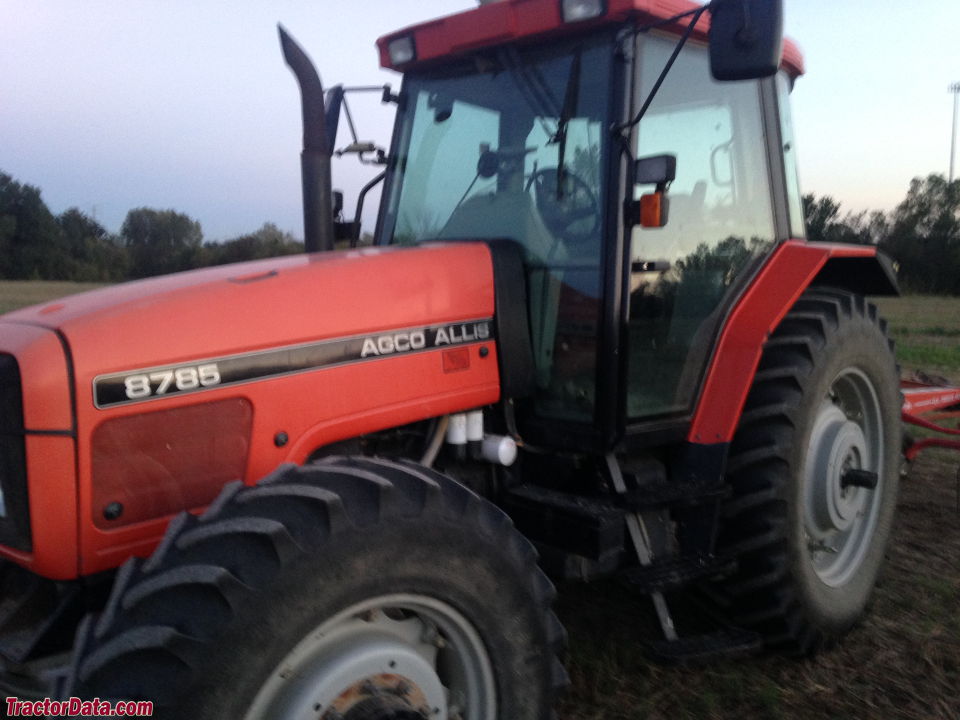

AGCO Allis 8785
AGCO Allis 8785 — Row-Crop tractor · 111 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
111 hp
Max power
89.4 kW
Weight
10800 to 12450 pounds
Hover a source tag to verify
Overview
ManufacturerAGCO Allis (a part of AGCO)Reference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price$47,048 (1998 2WD ROPS )Reference
Original price$59,117 (1998 2WD Cab )Reference
Original price$55,502 ( 4WD ROPS )Reference
Original price$67,856 ( 4WD Cab )Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning. Two-post fixed ROPS available.Reference
Variants
6810similar White modelReference
Engine
SisuDiesel 6.6L 6-cyl dieselReference
Cummins 5.9L 6-cyl dieselReference
ROPS Fuel tank159.0 LReference
Cab Fuel tank223.3 LReference
Drawbar (tested)71.5 kWReference
SisuDiesel 666TReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
Air cleanerdual dry elementReference
Compression16.5:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Cummins B5.9TReference
dieselReference
Displacement5.9 LReference
Bore/Stroke102 x 120 mmReference
Max power89.4 kWReference
Power at rated engine speed82.9 kWReference
Max power71.5 kWReference
Power at rated engine speed83.8 kWReference
Transmission
32-speed four-speed power shiftReference
TransmissionQuadrashiftReference
Typefour-speed power shiftReference
Gears32 forward and reverseReference
Clutchwet discReference
PTO & Hydraulics
PTO (claimed)82.0 kWReference
PTO (tested)89.4 kWReference
Typeclosed centerReference
Pressure200.0 barReference
Valves2 or 3Reference
Pump flow104.8 lpmReference
SCV flow104.8 lpmReference
Rear TypeIIReference
Controlelectronic draft sensingReference
Rear lift (at 24"/610mm)4082 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed87.9 kWReference
Power at rated PTO speed87.3 kWReference
Dimensions
Wheelbase286 cmReference
Weight10800 to 12450 poundsReference
Front tire11.00-16Reference
Rear tire18.4R38Reference
Ag front11.00-16Reference
Ag rear18.4R38Reference
Length439 cmReference
Width223 cmReference
Height (cab)276 cmReference
Bar rear axle82 by 2235 mmReference
Bar rear axle82 by 2870 mmReference
2WD Front tread152 to 223 cmReference
2WD ROPS Shipping4898 kgReference
4WD Cab Shipping5488 kgReference
Operating5647 kgReference
8785 Serial Numbers
Location:Console, right sideReference
1998G01001Reference
1999G01001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Batteries2Reference
Battery CCA590Reference
Battery volts12Reference
Test results
OECD 1780: Cummins diesel 32-speed 4WDReference
NTTL 1780A: Sisu diesel 32-speed 4WDReference
Cummins diesel 32-speed 4WDJune 14 - 19, 2000Link: OCED Tractor Test 1780 fileReference
PTO performanceReference
Fuel use28.8 l/hourReference
Fuel use26.5 l/hourReference
Fuel use26.1 l/hourReference
Drawbar performanceReference
Gear 17 used for power test.Reference
Max pull5409 kgReference
Gear 8 used for pull test.Reference
Sisu diesel 32-speed 4WDJune 6 - 7, 2000Link: Nebraska Tractor Test 1780A fileReference
Fuel use26.9 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
