Tractor · 1991Unverified

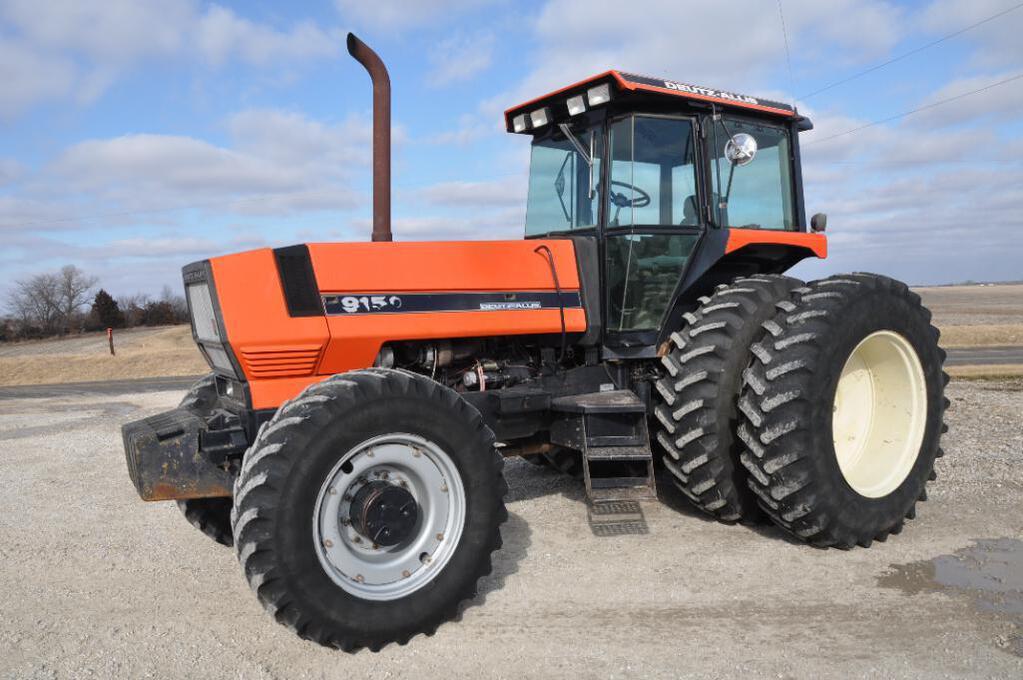

AGCO Allis 9150
AGCO Allis 9150 — Row-Crop tractor · 151 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
151 hp
Max power
99.0 kW
Weight
5670 kg
Hover a source tag to verify
Overview
DistributorAGCO AllisReference
ManufacturerWhiteReference
Row-Crop tractorReference
Built in Coldwater, Ohio, USAReference
Original price was $64,000 in 1992Reference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Engine
Deutz 6.1L 6-cyl dieselReference
Fuel tank340.7 LReference
Drawbar (claimed)100.7 kWReference
Drawbar (tested)99.0 kWReference
DeutzReference
dieselReference
6-cylinderReference
air-cooledReference
Displacement6.1 LReference
Bore/Stroke102 x 125 mmReference
Rated RPM2400Reference
Starter volts12Reference
Power at rated engine speed112.7 kWReference
Max power99.0 kWReference
Transmission
18-speed three-speed power shiftReference
Typethree-speed power shiftReference
Gears18 forward and 6 reverseReference
Six forward gears, each with a three-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)111.9 kWReference
PTO (tested)112.7 kWReference
Typeclosed centerReference
Valves3Reference
Pump flow90.8 lpmReference
Rear TypeIII/IIReference
Rear lift3271 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed112.0 kWReference
Dimensions
Wheelbase304 cmReference
Weight5670 kgReference
Front tire11.00-16Reference
Rear tire18.4R38Reference
Ag front11.00-16Reference
Ag rear18.4R38Reference
9150 Serial Numbers
19891001Reference
19901200Reference
19912001Reference
199213000Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 18-speed 2WDNovember 2 - 14, 1989Link: Nebraska Tractor Test 1633 fileReference
PTO performanceReference
Fuel use35.2 l/hourReference
Fuel use34.4 l/hourReference
Drawbar performanceReference
Gear 3D used for power test.Reference
Max pull54 kgReference
Gear 1O used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
