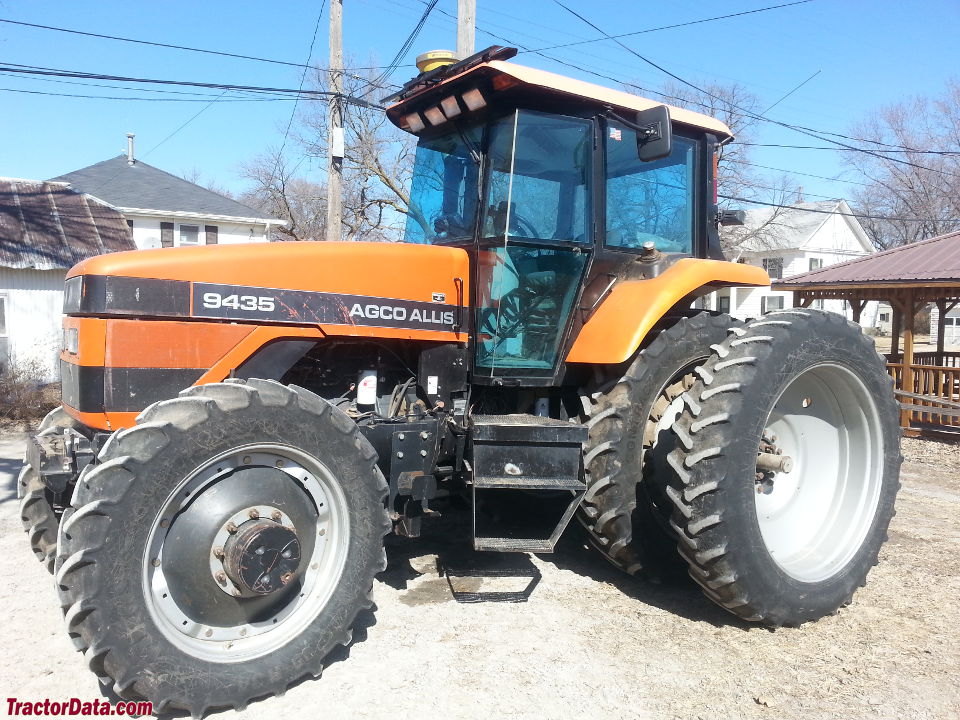

AGCO Allis 9435
AGCO Allis 9435 — Row-Crop tractor · 136 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
136 hp
Max power
107.2 kW
Weight
13800 to 15432 pounds
Hover a source tag to verify
Overview
ManufacturerAGCO Allis (a part of AGCO)Reference
Row-Crop tractorReference
Original price was $70,000 in 1997Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
943532-speed semi-powershiftReference
963518-speed full powershiftReference
Engine
Detroit Diesel 7.6L 6-cyl dieselReference
Fuel tank287.7 LReference
Drawbar (tested)89.7 kWReference
Detroit Diesel 40Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.6 LReference
Bore/Stroke109 x 136 mmReference
Air cleanerdual dry elementReference
Compression15.8:1Reference
Rated RPM2200Reference
Starter volts12Reference
Max power107.2 kWReference
Power at rated engine speed101.2 kWReference
Max power89.7 kWReference
Transmission
32-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears32 forward and reverseReference
Four power-shift gears (A-D) in four synchronized ranges (1-4) with additional high-low range shift and synchronized shuttle.Reference
PTO & Hydraulics
PTO (claimed)100.7 kWReference
PTO (tested)107.2 kWReference
Typeclosed centerReference
Pressure200.0 barReference
Valves3 or 4Reference
Pump flow102.2 lpmReference
Rear TypeIII/IIReference
Controlelectronic lower-link draft sensingReference
Rear lift (at 24"/610mm)4717 kgReference
Rear Armsextendible lower linksReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed105.0 kWReference
Dimensions
2WD Wheelbase312 cmReference
4WD Wheelbase295 cmReference
Weight13800 to 15432 poundsReference
Front tire11.00-16Reference
2WD Rear tire18.4R38Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 18.4R38Reference
4WD Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference
Rear axle2489 mmReference
Rear axle2997 mmReference
2WD Front tread165 to 226 cmReference
4WD Front tread151 to 232 cmReference
Rear tread157 to 261 cmReference
Rear tread157 to 320 cmReference
2WD Shipping6259 kgReference
4WD Shipping6985 kgReference
Operating6999 kgReference
9435 Serial Numbers
Location:Console, right sideReference
1994935001Reference
1995935501Reference
1996936301Reference
1997936369Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 32-speed 4WDMay 17 - June 5, 1995Link: OCED Tractor Test 1692 fileReference
PTO performanceReference
Fuel use31.0 l/hourReference
Fuel use31.4 l/hourReference
Drawbar performanceReference
Max pull6980 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
