Tractor · 1994Unverified

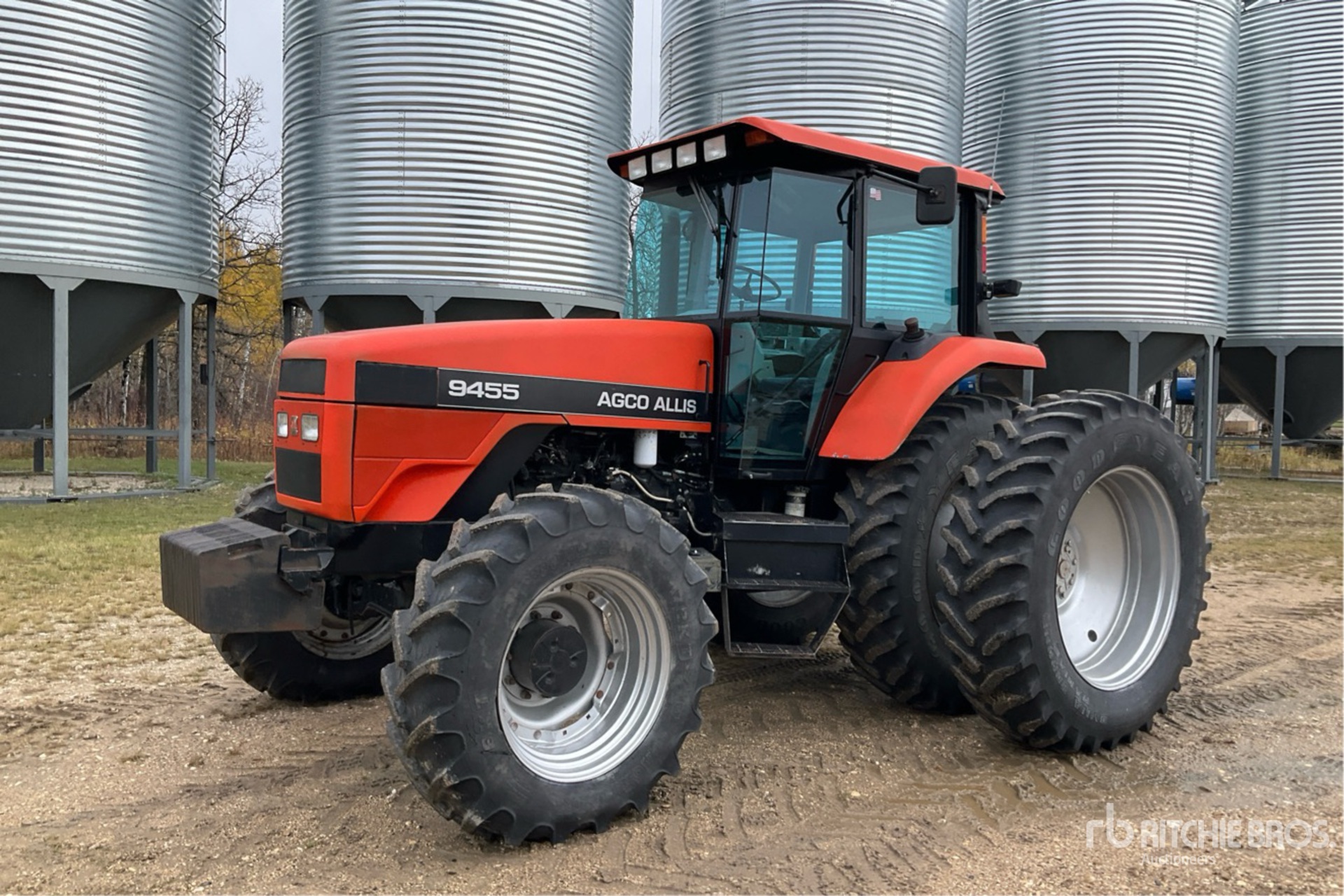

AGCO Allis 9455
AGCO Allis 9455 — Row-Crop tractor · 156 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
156 hp
Max power
121.6 kW
Weight
13800 to 15400 pounds
Hover a source tag to verify
Overview
ManufacturerAGCO Allis (a part of AGCO)Reference
Row-Crop tractorReference
Original price was $75,000 in 1999Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
945532-speed semi-powershiftReference
965518-speed full powershiftReference
Engine
Detroit Diesel 7.6L 6-cyl dieselReference
Fuel tank287.7 LReference
Drawbar (tested)101.8 kWReference
Detroit Diesel 40Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.6 LReference
Bore/Stroke109 x 136 mmReference
Air cleanerdual dry elementReference
Compression15.8:1Reference
Rated RPM2200Reference
Starter volts12Reference
Max power121.6 kWReference
Power at rated engine speed116.0 kWReference
Max power101.8 kWReference
Transmission
32-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears32 forward and reverseReference
Four power-shift gears (A-D) in four synchronized ranges (1-4) with additional high-low range shift and synchronized shuttle.Reference
PTO & Hydraulics
PTO (claimed)115.6 kWReference
PTO (tested)121.6 kWReference
Typeclosed centerReference
Pressure200.0 barReference
Valves3 or 4Reference
Pump flow102.2 lpmReference
Rear TypeIII/IIReference
Controlelectronic lower-link draft sensingReference
Rear lift (at 24"/610mm)4717 kgReference
Rear Armsextendible lower linksReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed116.9 kWReference
Dimensions
2WD Wheelbase312 cmReference
4WD Wheelbase295 cmReference
Weight13800 to 15400 poundsReference
Front tire11.00-16Reference
2WD Rear tire18.4R38Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 18.4R38Reference
4WD Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference
2WD Shipping weight6259 kgReference
4WD Shipping weight6985 kgReference
Rear axle2489 mmReference
Rear axle2997 mmReference
2WD Front tread165 to 226 cmReference
4WD Front tread151 to 232 cmReference
Rear tread157 to 261 cmReference
Rear tread157 to 320 cmReference
9455 Serial Numbers
Location:Console, right sideReference
1994955001Reference
1995955501Reference
1996956301Reference
1997956414Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 32-speed 4WDMay 19 - June 5, 1995Link: OCED Tractor Test 1693 fileReference
PTO performanceReference
Fuel use34.4 l/hourReference
Fuel use35.6 l/hourReference
Fuel use34.8 l/hourReference
Drawbar performanceReference
Max pull7024 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
