Tractor · 1993Unverified

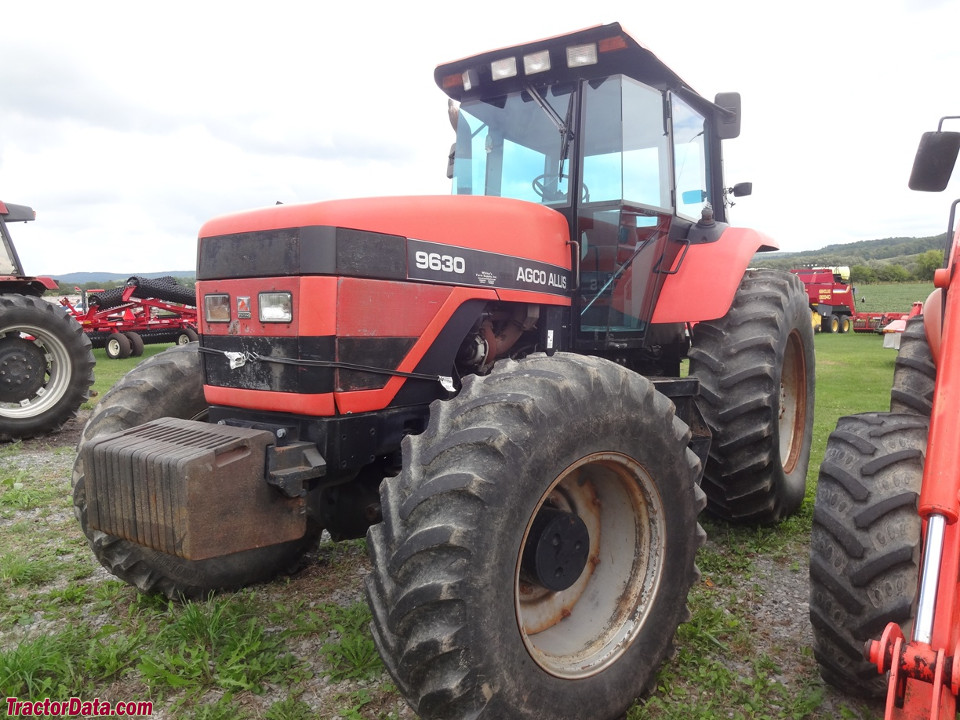

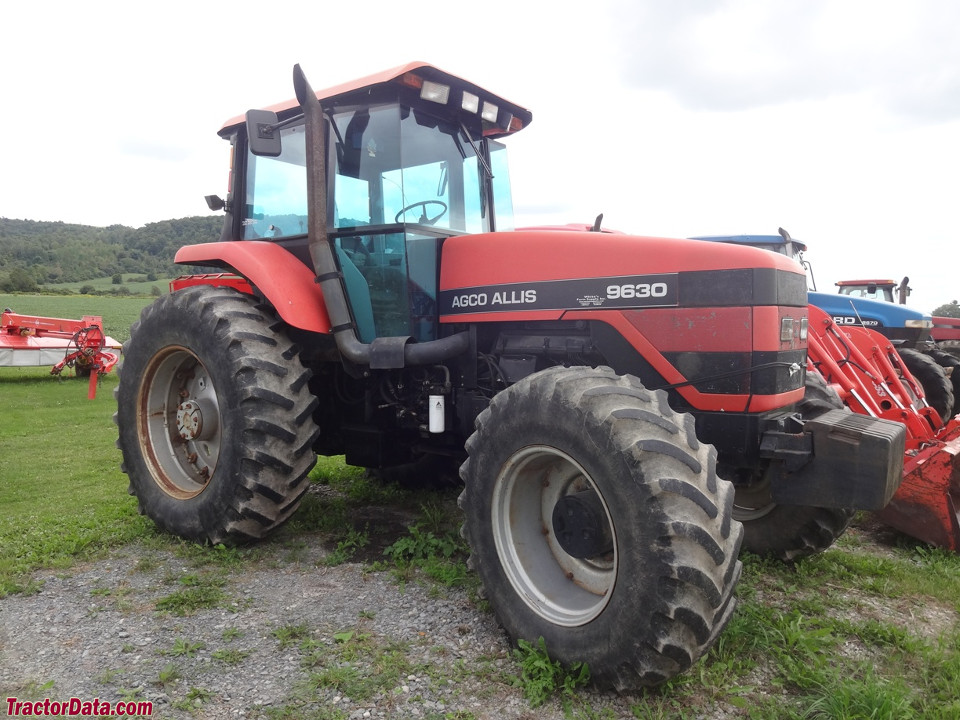

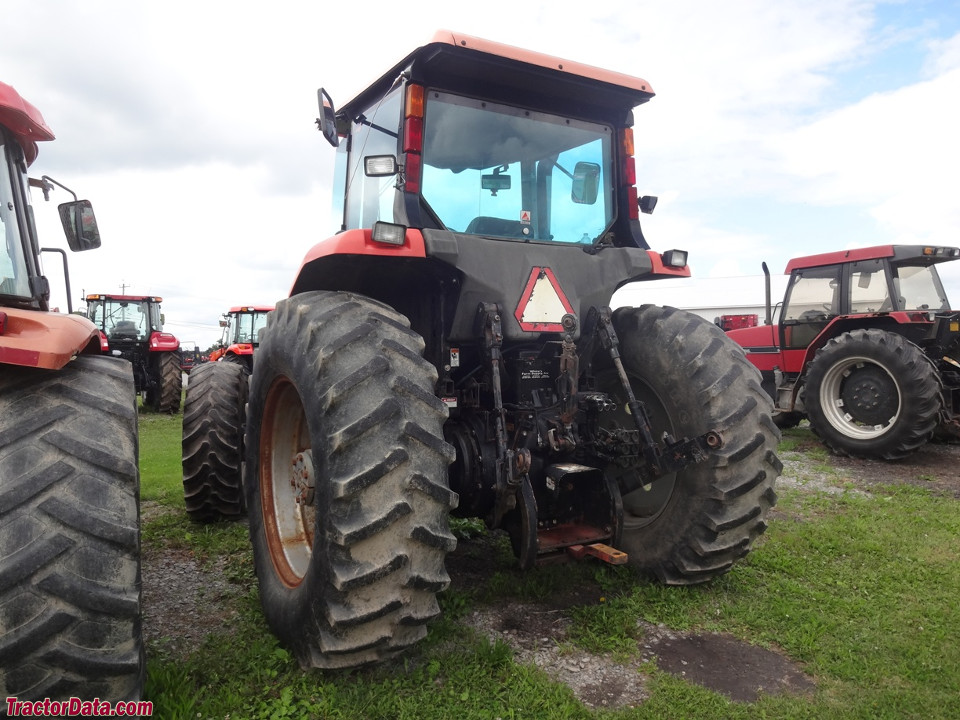

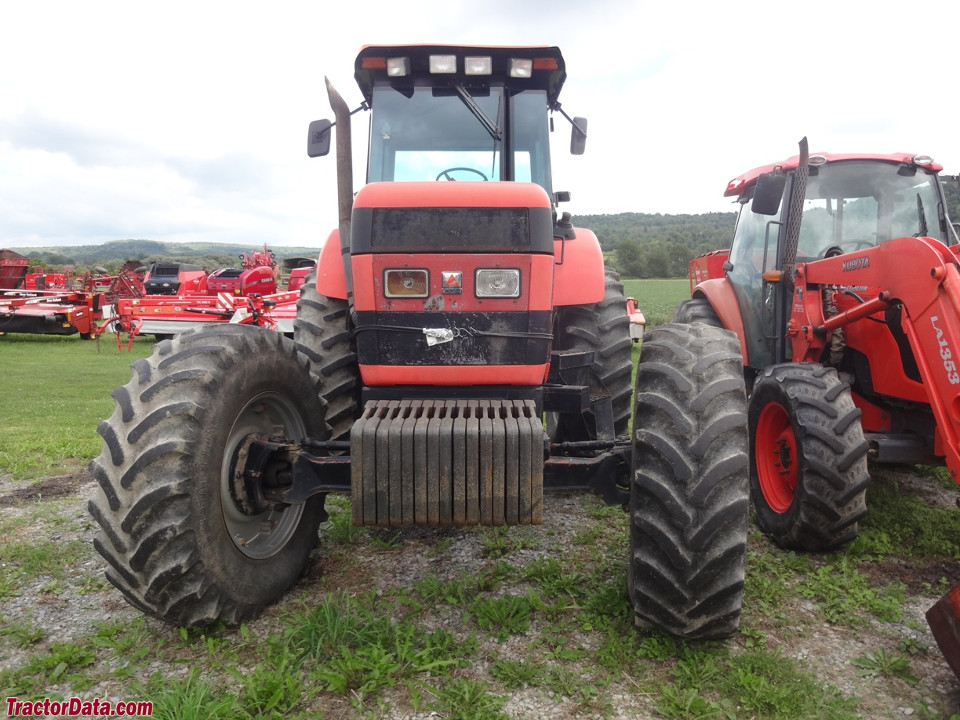

AGCO Allis 9630

Name: AGCO Allis 9630
Brand: AGCO Allis

AGCO Allis 9630 — Row-Crop tractor · 136 hp. Reference specifications; pending source verification.

The AGCO Allis 9630 is a tractor model with a rating of 136 hp, positioning it within the higher-powered range of its class. Manufactured between 1993 and 1995, this model features a 6-cylinder turbocharged intercooled diesel air-cooled engine, coupled with a powershift transmission and four-wheel drive. The listed weight range for the AGCO Allis 9630 is 14800 to 17028 pounds. It is suited for tasks covering approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

136 hp

Max power

107.9 kW

Weight

14800 to 17028 pounds

Catalogue coverage

Variants represented

Richest spec table

86 rows

Recorded power

136 hp

Transmissions

18-speed full power shift

Production years

1993-1995

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerAGCO Allis (a part of AGCO)Reference

Row-Crop tractorReference

Original price was $72,000 in 1995Reference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockelectro-hydraulic rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Deutz 6.1L 6-cyl dieselReference

Fuel tank253.6 LReference

Drawbar (tested)89.5 kWReference

Deutz BF6L913CReference

turbocharged intercooled dieselReference

6-cylinderReference

air-cooledReference

Displacement6.1 LReference

Bore/Stroke102 x 125 mmReference

Pre-heatingether injectionReference

Compression15.5:1Reference

Rated RPM2400Reference

Starter volts12Reference

Oil capacity16.1 LReference

Max power107.9 kWReference

Power at rated engine speed101.2 kWReference

Max power89.5 kWReference

Transmission

18-speed full power shiftReference

Typefull power shiftReference

Gears18 forward and 9 reverseReference

Clutchhydraulic wet discReference

PTO & Hydraulics

PTO (claimed)100.7 kWReference

PTO (tested)107.9 kWReference

Typeclosed center pressure-compensatingReference

Pressure155.1 barReference

Rear valves3 or 4Reference

Pump flow90.8 lpmReference

Rear TypeIII/IIReference

Controllower-link draft sensingReference

Rear lift (at 24"/610mm)3271 kgReference

Rear lift (at 24"/610mm)3875 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540/1000Reference

Power at rated PTO speed107.2 kWReference

Dimensions

2WD Wheelbase314 cmReference

4WD Wheelbase295 cmReference

Weight14800 to 17028 poundsReference

Front tire11.00-16Reference

2WD Rear tire18.4R38Reference

2WD Standard tires (ag)Front: 11.00-16. Rear: 18.4R38Reference

4WD Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference

2WD Length476 cmReference

4WD Length499 cmReference

Width243 cmReference

Height (cab)304 cmReference

2WD Clearance (front axle)58 cmReference

4WD Clearance (front axle)57 cmReference

Clearance (drawbar)39 cmReference

Bar rear axle98 by 2438 mmReference

Bar rear axle98 by 2921 mmReference

2WD Front tread165 to 226 cmReference

4WD Front tread151 to 232 cmReference

Rear tread157 to 272 cmReference

Rear tread157 to 320 cmReference

2WD Shipping6713 kgReference

4WD Shipping7302 kgReference

4WD Operating7723 kgReference

9630 Serial Numbers

Location:Console, right sideReference

1994921001Reference

1995921501Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps105Reference

Batteries2Reference

Battery CCA580Reference

Battery volts12Reference

Test results

Diesel 18-speed 4WDApril 8 - May 5, 1994Link: OCED Tractor Test 1674 fileReference

PTO performanceReference

Fuel use32.2 l/hourReference

Fuel use32.9 l/hourReference

Fuel use32.6 l/hourReference

Drawbar performanceReference

Gear 7 used for power test.Reference

Max pull8784 kgReference

Gear 3 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
