Tractor · 1994Unverified

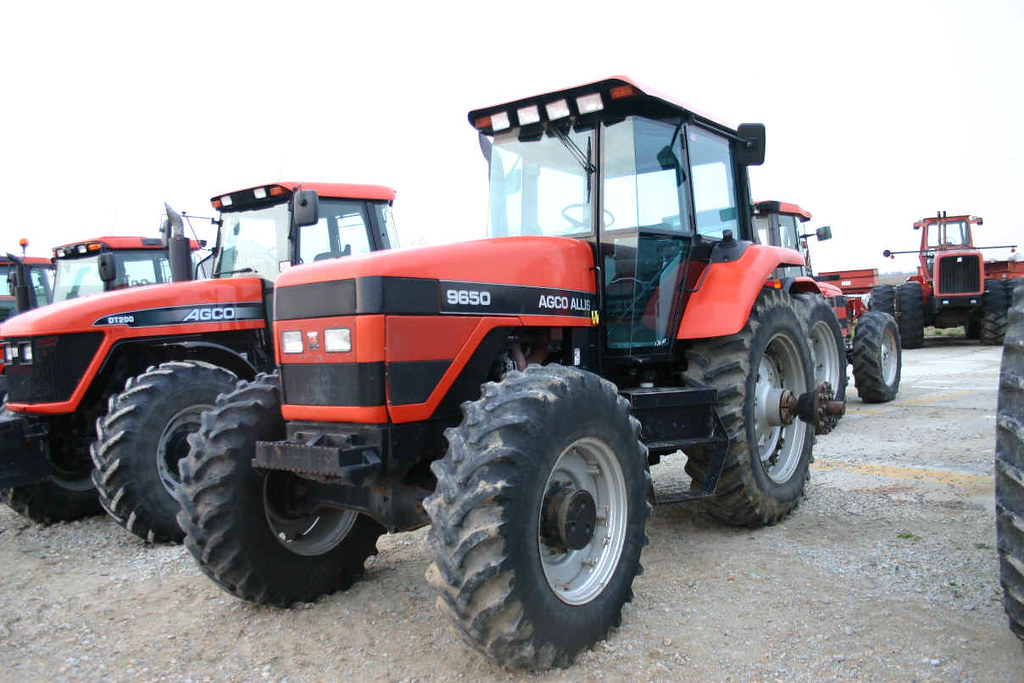

AGCO Allis 9650
AGCO Allis 9650 — Row-Crop tractor · 156 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
156 hp
Max power
118.8 kW
Weight
14800 to 17060 pounds
Hover a source tag to verify
Overview
ManufacturerAGCO Allis (a part of AGCO)Reference
Row-Crop tractorReference
Original price was $77,000 in 1995Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Deutz 6.1L 6-cyl dieselReference
Fuel tank253.6 LReference
Drawbar (tested)102.9 kWReference
Deutz BF6L913CReference
turbocharged intercooled dieselReference
6-cylinderReference
air-cooledReference
Displacement6.1 LReference
Bore/Stroke102 x 125 mmReference
Pre-heatingether injectionReference
Compression15.5:1Reference
Rated RPM2400Reference
Starter volts12Reference
Oil capacity16.1 LReference
Max power118.8 kWReference
Power at rated engine speed116.3 kWReference
Max power102.9 kWReference
Transmission
18-speed full power shiftReference
Typefull power shiftReference
Gears18 forward and 9 reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
PTO (claimed)115.6 kWReference
PTO (tested)118.8 kWReference
Typeclosed center pressure-compensatingReference
Pressure155.1 barReference
Rear valves3 or 4Reference
Pump flow90.8 lpmReference
Rear TypeIII/IIReference
Controllower-link draft sensingReference
Rear lift (at 24"/610mm)3271 kgReference
Rear lift (at 24"/610mm)3875 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000Reference
Power at rated PTO speed118.6 kWReference
Dimensions
2WD Wheelbase314 cmReference
4WD Wheelbase295 cmReference
Weight14800 to 17060 poundsReference
Front tire11.00-16Reference
2WD Rear tire18.4R38Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 18.4R38Reference
4WD Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference
2WD Length476 cmReference
4WD Length499 cmReference
Width243 cmReference
Height (cab)304 cmReference
2WD Clearance (front axle)58 cmReference
4WD Clearance (front axle)56 cmReference
Clearance (drawbar)39 cmReference
Bar rear axle98 by 2438 mmReference
Bar rear axle98 by 2921 mmReference
2WD Front tread165 to 226 cmReference
4WD Front tread151 to 232 cmReference
Rear tread157 to 272 cmReference
Rear tread157 to 320 cmReference
2WD Shipping6713 kgReference
4WD Shipping7302 kgReference
4WD Operating7738 kgReference
9650 Serial Numbers
Location:Console, right sideReference
1994941001Reference
1995941501Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps105Reference
Batteries2Reference
Battery CCA580Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDApril 6 - 26, 1994Link: OCED Tractor Test 1675 fileReference
PTO performanceReference
Fuel use35.2 l/hourReference
Fuel use36.7 l/hourReference
Fuel use35.6 l/hourReference
Drawbar performanceReference
Fuel use36.3 l/hourReference
Gear 7 used for power test.Reference
Max pull9102 kgReference
Gear 4 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
