Tractor · 1994Unverified

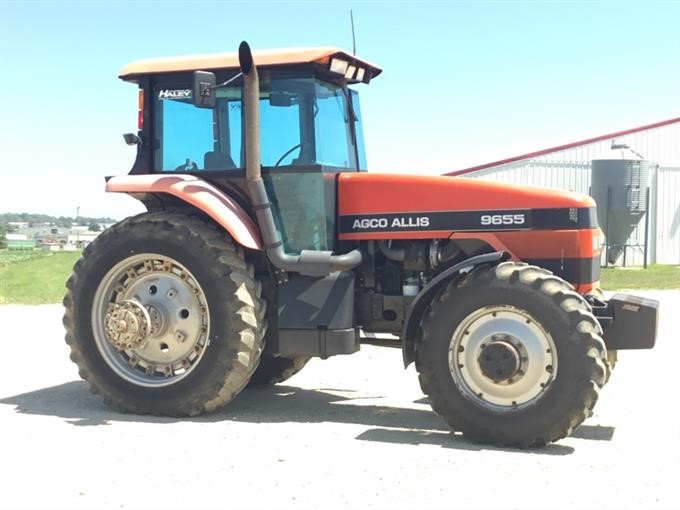

AGCO Allis 9655

Name: AGCO Allis 9655
Brand: AGCO Allis

AGCO Allis 9655 — Row-Crop tractor · 156 hp. Reference specifications; pending source verification.

The AGCO Allis 9655 is a tractor model with a rated output of 156 hp, which positions it among the higher-powered machines in its class. This model was manufactured from 1994 to 1998 and features a 6-cylinder turbocharged diesel liquid-cooled engine. It has a four-wheel drive system with a powershift transmission and a listed weight of 14475 to 17505 pounds. The AGCO Allis 9655 is intended for use in areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

156 hp

Max power

125.8 kW

Weight

14475 to 17505 pounds

Catalogue coverage

Variants represented

Richest spec table

78 rows

Recorded power

156 hp

Transmissions

18-speed full power shift

Production years

1994-1998

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerAGCO AllisReference

Row-Crop tractorReference

Original price was $80,500 in 1998Reference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockelectro-hydraulic rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

945532-speed semi-powershiftReference

965518-speed full powershiftReference

Engine

Detroit Diesel 7.6L 6-cyl dieselReference

Fuel tank253.6 LReference

Fuel tank367.1 LReference

Drawbar (tested)101.1 kWReference

Detroit Diesel 40Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement7.6 LReference

Bore/Stroke109 x 136 mmReference

Pre-heatingether injectionReference

Rated RPM2200Reference

Starter volts12Reference

Max power125.8 kWReference

Power at rated engine speed116.1 kWReference

Max power101.1 kWReference

Transmission

18-speed full power shiftReference

Typefull power shiftReference

Gears18 forward and 9 reverseReference

PTO & Hydraulics

PTO (claimed)115.6 kWReference

PTO (tested)125.8 kWReference

Typeclosed centerReference

Pressure155.1 barReference

Rear valves3 or 4Reference

Pump flow83.3 lpmReference

Rear TypeIII/IIReference

Controllower-link draft sensingReference

Rear lift (at 24"/610mm)3271 kgReference

Rear lift (at 24"/610mm)3875 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2228Reference

Engine RPM1000@2200Reference

Dimensions

2WD Wheelbase312 cmReference

4WD Wheelbase295 cmReference

Weight14475 to 17505 poundsReference

Front tire11.00-16Reference

2WD Rear tire18.4R38Reference

2WD Standard tires (ag)Front: 11.00-16. Rear: 18.4R38Reference

4WD Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference

Bar rear axle98 by 2438 mmReference

Bar rear axle98 by 2921 mmReference

2WD Front tread165 to 226 cmReference

4WD Front tread151 to 232 cmReference

Rear tread157 to 272 cmReference

Rear tread157 to 320 cmReference

2WD Shipping6565 kgReference

4WD Shipping7155 kgReference

4WD Operating7940 kgReference

9655 Serial Numbers

Location:Console, right sideReference

1994951001Reference

1995951501Reference

1996952301Reference

1997952395Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Batteries2Reference

Battery volts12Reference

Test results

Diesel 18-speed 4WDSeptember 6 - 22, 1995Link: OCED Tractor Test 1698 fileReference

PTO performanceReference

Fuel use37.1 l/hourReference

Drawbar performanceReference

Gear 11 used for power test.Reference

Max pull7592 kgReference

Gear 5 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
