Tractor · 2002Unverified

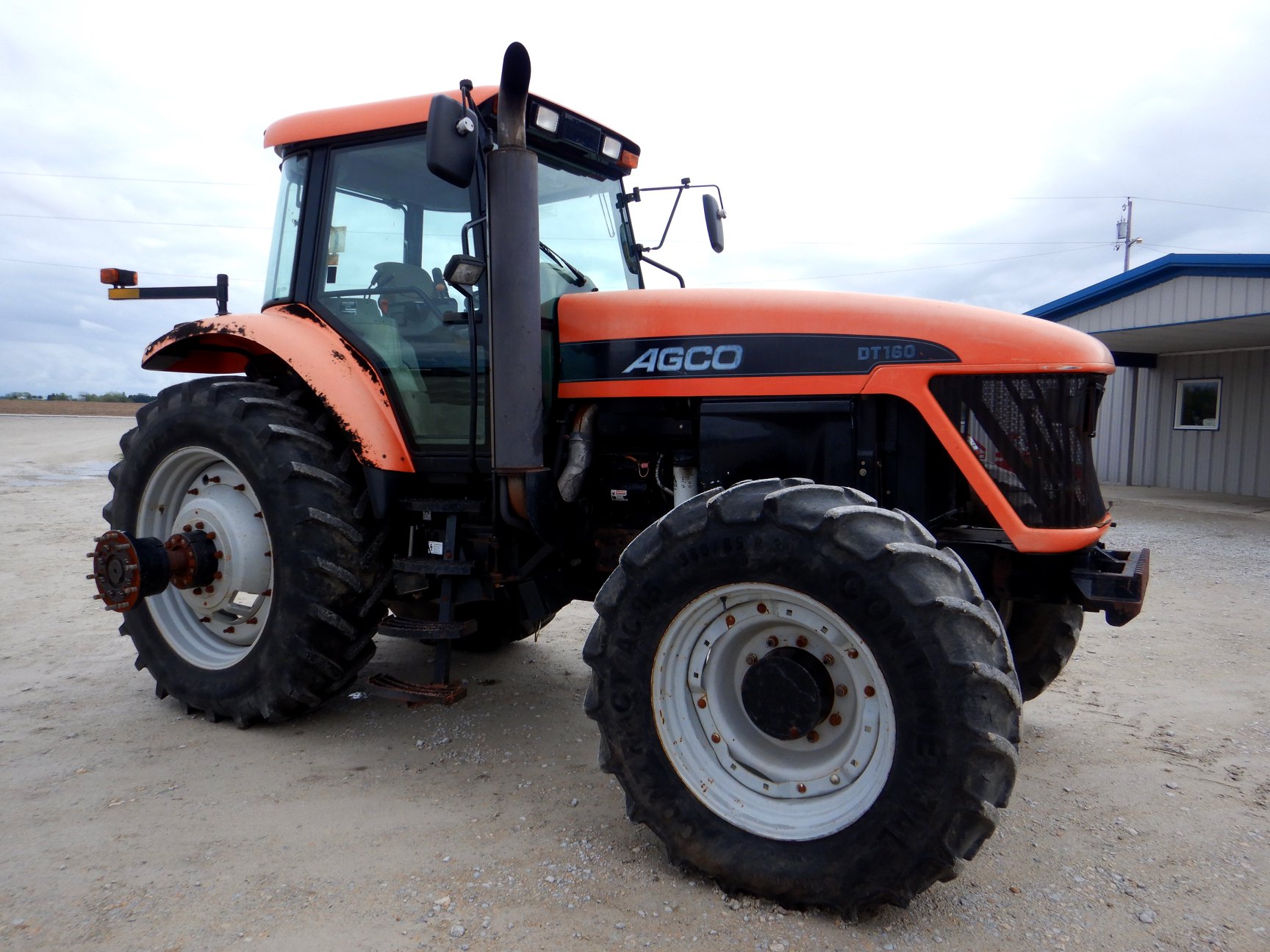

AGCO DT160
AGCO DT160 — DT Series · 164 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
164 hp
Max power
106.3 kW
Weight
8391 kg
Hover a source tag to verify
Overview
ManufacturerAGCOReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Engine
Cummins 8.3L 6-cyl dieselReference
Fuel tank454.2 LReference
Drawbar (tested)106.3 kWReference
Cummins C8.3LReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Air cleanertwo paper elementsReference
Compression17.3:1Reference
Rated RPM2200Reference
Torque729.5 NmReference
Torque RPM1251Reference
Starter volts12Reference
Power at rated engine speed122.6 kWReference
Max power106.3 kWReference
Transmission
18-speed full power shiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Clutchelectro-hydraulic wet discReference
PTO & Hydraulics
PTO (claimed)119.3 kWReference
PTO (tested)122.6 kWReference
Typeclosed center pressure flow compensated (PFC)Reference
Pressure200.0 barReference
Valves4Reference
Pump flow109.8 lpmReference
Pump flow147.6 lpmReference
Rear Type3/3NReference
Rear lift (at 24"/610mm)7257 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed125.5 kWReference
Dimensions
Wheelbase307 cmReference
Weight8391 kgReference
Length515 cmReference
Width249 cmReference
Height307 cmReference
Shipping weight8391 kgReference
AGCO DT160 attachments
front-end loaderReference
DT160 Serial Numbers
2002L001001Reference
2003M001001Reference
2004N001001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 18-speed 4WDSeptember 7 - 27, 2000Link: OCED Tractor Test 1781 fileReference
PTO performanceReference
Fuel use40.5 l/hourReference
Fuel use39.7 l/hourReference
Drawbar performanceReference
Fuel use39.4 l/hourReference
Gear 10 used for power test.Reference
Max pull9465 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
