Tractor · 2002Unverified

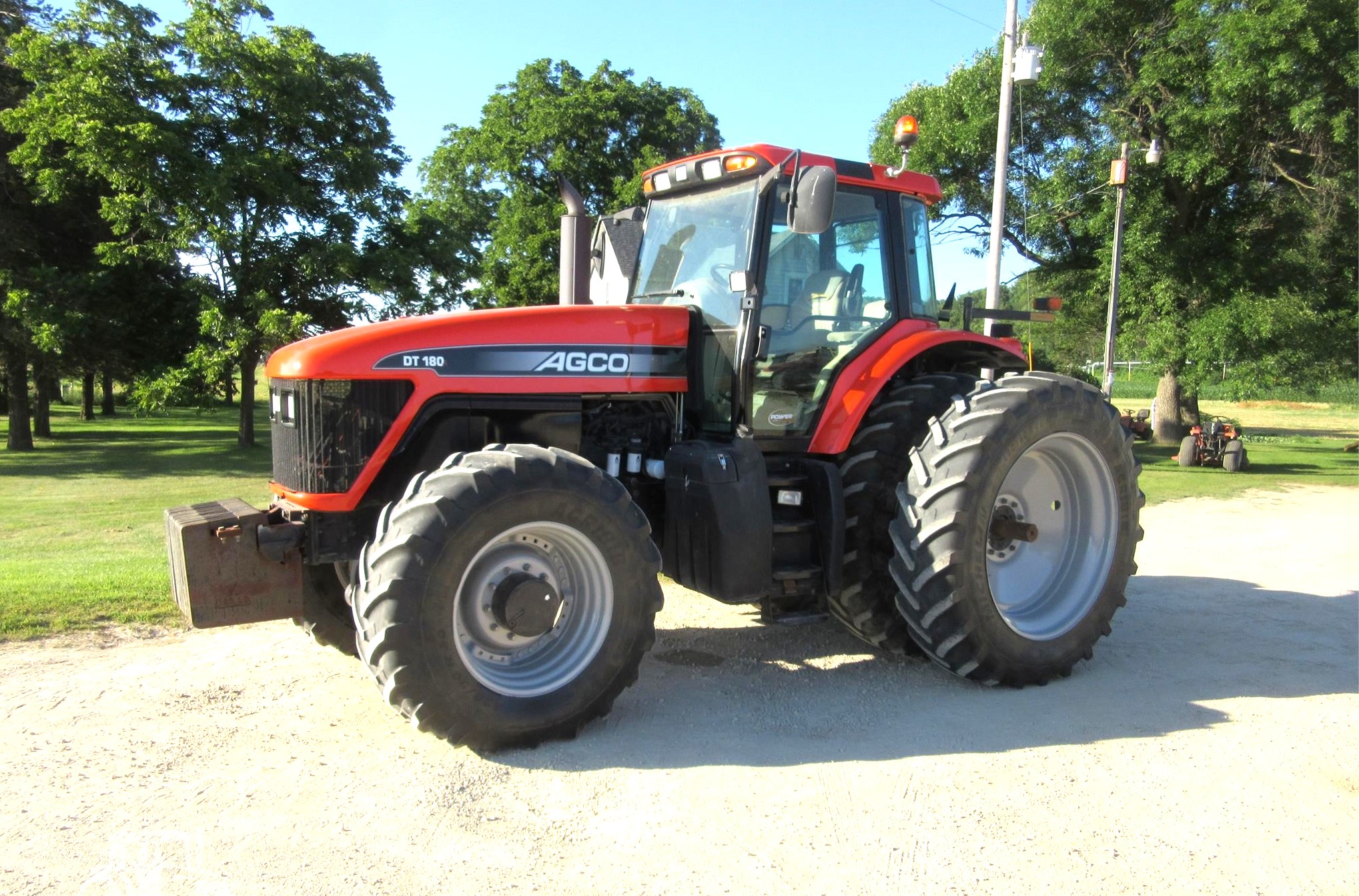

AGCO DT180

Name: AGCO DT180
Brand: AGCO

AGCO DT180 — DT Series · 184 hp. Reference specifications; pending source verification.

The AGCO DT180 is a 184 hp tractor, placing it at the higher end of its class. It was manufactured between 2002 and 2004. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its operating weight is listed at 8391 kg, suitable for operations spanning 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

184 hp

Max power

119.5 kW

Weight

8391 kg

Catalogue coverage

Variants represented

Richest spec table

65 rows

Recorded power

184 hp

Recorded weight

8391 kg

Transmissions

18-speed full power shift

Production years

2002-2004

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerAGCOReference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard.Reference

Engine

Cummins 8.3L 6-cyl dieselReference

Fuel tank454.2 LReference

Engine160.3 kWReference

Drawbar (tested)119.5 kWReference

Cummins C8.3LReference

turbocharged aftercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.3 LReference

Bore/Stroke114 x 135 mmReference

Power160.3 kWReference

Air cleanertwo paper elementsReference

Compression17.3:1Reference

Rated RPM2200Reference

Torque858.3 NmReference

Torque RPM1300Reference

Starter volts12Reference

Power at rated engine speed137.4 kWReference

Max power119.5 kWReference

Transmission

18-speed full power shiftReference

Typefull power shiftReference

Gears18 forward and 6 reverseReference

Clutchelectro-hydraulic wet discReference

PTO & Hydraulics

PTO (claimed)134.2 kWReference

PTO (tested)137.4 kWReference

Typeclosed center pressure flow compensated (PFC)Reference

Pressure200.0 barReference

Valves4Reference

Pump flow109.8 lpmReference

Pump flow147.6 lpmReference

Rear Type3/3NReference

Rear lift (at 24"/610mm)8164 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Power at rated PTO speed149.1 kWReference

Dimensions

Wheelbase307 cmReference

Weight8391 kgReference

Length515 cmReference

Width249 cmReference

Height307 cmReference

Shipping weight8391 kgReference

AGCO DT180 attachments

front-end loaderReference

DT180 Serial Numbers

2002L001001Reference

2003M001001Reference

2004N001001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Test results

Diesel 18-speed 4WDSeptember 12 - 26, 2000Link: OCED Tractor Test 1782 fileReference

PTO performanceReference

Fuel use43.5 l/hourReference

Fuel use45.0 l/hourReference

Drawbar performanceReference

Fuel use43.1 l/hourReference

Gear 8 used for power test.Reference

Max pull10737 kgReference

Gear 3 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
